CR01 T&A Controller

CR01 T&A Controller

operating voltage

operating voltage

temperature range

temperature range

protection rating

protection rating

standard interface

standard interface

users

users

events

events

readers

readers

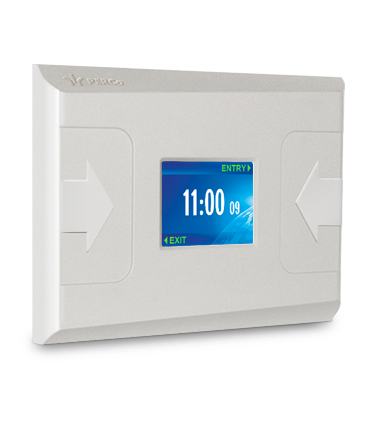

The CR01 (LICON) is a specialized controller designed to create Time and Attendance terminal and to exercise labour discipline control.
LICON is appropriate to control the entry and exit time of the employees not at the entrances equipped with turnstiles but in other specificially alloted places. It can be for example an office without a turnstile at the entrance or, on the contrary, a big enterprise where the employee’s working place is distant from the entrance.  In this case the controller can be installed in workshops or in other rooms where the working place is located.
The controller operates with EM-Marin and HID proximity cards (HID ProxCard II, ISO prox II; EM-Marin IL-05ELR, ЕМ4100).

The LICON can operate as a stand-alone system or as a part of PERCo-Web system.

The controller operates through Ethernet interface (supported Protocol stack TCP/IP (ARP, IP, ICMP, TCP, UDP, DHCP)).

The CR01 controller has two built-in proximity card readers for the entry and exit time. It supports two formats of proximity cards: EMM and HID. The places for card presentation are signed with pictograms.

The controller transmits the entry and exit time to the software that forms the time sheet and other reports on labor disciplinary violations.

On the controller front panel there is an LCD screen where the following information is displayed:

  • the current time and indicated positions of the card readers for entry and for exit registartion (the matching of left and right readers with events Exit and Entry is assigned by software)
  • the name of card holder, the card number (in case of connection with the system’s server)
  • time violations (for example time violations, re-presentation of the card at the entrance/exit) are indicated with red colour and are accompanied by auditory indication.
Operating voltage
12 V DC
Consumption current
250 mA
Dimensions (length×width×height)
23×140×190 mm
Operating temperature range
from +1 °C to +40 °C
IP Code
IP41
Standard interface
Ethernet
Number of users
50 000
Number of log file events
125 000
Number of readers
2
