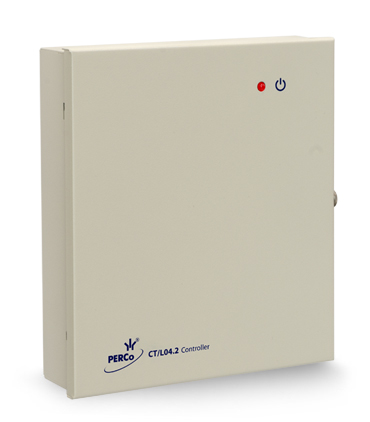

CT/L04.2 Multipurpose controller

CT/L04.2 Multipurpose controller

operating voltage

operating voltage

temperature range

temperature range

standard interface

standard interface

users

users

events

events

locks

locks

readers

readers

alarm loops amount

alarm loops amount

control outputs amount

control outputs amount

test inputs

test inputs

boom barriers amount

boom barriers amount

turnstiles amount

turnstiles amount

According to choosen user configuration, the CT/L04.2 controller can control:

  • four locks (passageway control in one direction);
  • two locks (passageway control in two directions);
  • one turnstile or one gate;
  • one barrier or one automatic drive gate.

CT/L04.2 multipurpose controller has Ethernet interface. It supports connection via RS-485 interface for following devices:

  • up to 4 readers IR03, IR04, MR07 or IR10
  • up to 2 IRP01 reader posts, IR07 readers
  • up to 2 verification devices - card capture readers, breathalyzer, etc.
  • up to 2 display units with IR receiver Al01 (there is possibility to control electromagnetic or electromechanical lock with IR remote control panel).
  • up to 8 lock controllers CL201 (CL201 lock controller has a built-in reader and provides the control by one lock).
  • AU05 system time display

Moreover, there is an option to connect two readers via Wiegand interface. AC02 interface converter will be required for connection.

Controller has an option of flexible memory allocation, by default controller memory is allocated to store data for up to 50 000 proximity cards and 230 000 events, user can increase event number by decreasing proximity cards number.

Other options of memory allocation:

  • 10 000 cards and 870 000 events,
  • 20 000 cards and 710 000 events,
  • 30 000 cards and 550 000 events,
  • 40 000 cards and 390 000 events.

There is an option to connect Fire Alarm emergency unblocking devices and devices, sending signals on extra inputs (sensors, external verification devices, etc.). 2 alarm system loops are supported. Controllers is configured via web-interface, where card numbers and employees full names are available. There is also an option to differentiate the access by rooms, by time and by status. Thus, based on one controller without using software mini access control system can be organized.

To organize fully functional access control controller is used within PERCo-Web system.

Operating voltage
12 V DC
Consumption current
0,4 A
Dimensions (length×width×height)
45×205×189 mm
Operating temperature range
from +1 °C to +40 °C
Standard interface
Ethernet
Number of users
50 000
Number of log file events
до 870 000
Number of controlled locks
4
Number of readers
4
Alarm loops amount
2
Control outputs amount
8
Number of test inputs
8
Turnstiles amount
1
Boom barriers amount
1

The warranty period is 5 (five) years from the date of sale of the product.
