The KT-05 IP-Stile - is a turn-key access control solution based on a box tripod turnstile with built-in controller and proximity card readers and as standard supplied with single-user software.
These elegant IP-Stiles made of stainless steel will perfectly fit modern interiors of business centers, banks and other public facilities.

Delivery set

Standard delivery set of the KT-05 IP-Stile includes:

  • turnstile with built-in controller and two proximity card readers HID/EMM (HID ProxCard II, ISO prox II; EM-Marin IL-05ELR, ЕМ4100).
  • remote control panel
  • free single-user software SL-01
  • standard/anti-panic barrier arms (the type is chosen by a Client at the time of order)
Встроенныесчитывателибесконтактныхкарт доступа Программноеобеспечение Стойкаэлектроннойпроходной Consealed proximitycard readersand graphicindication Systemsoftware IP-basedturnstile EingebauteberührungsloseKartenkeser System-software IP-basierteDrehsperre Lecteurs decartesde proximitéintégrés Logiciel Tourniquet Lettoricard incorporati Software TornelloIP-Stile Lectoresde tarjetassin contactoencastrados Soportelógico Standde entradade control electrón Ethernet

To install the KT-05 IP-Stile just fix the turnstile housing to the floor with anchor bolts, connect it to the power supply and to Ethernet.

The IP-Stile can be operated as a stand-alone unit - controlled from the remote control panel or wireless remote control, as well as an element of an ACS - controlled from the built-in readers (at presentation of access cards at them) or from the PC at connection to LAN over Ethernet.

Proximity card readers are built-in under indication modules located on front panels of the turnstile top cover. Indication modules have 3 mnemonic indicators: green indicator of authorized passage, yellow indicator: card presentation is expected, red indicator of ban on passage.

Installation of the optional SL-02 software with video identification enables to prevent unauthorized use of valid ID cards that have been lost, stolen or otherwise improperly obtained. When a card is presented to the card reader, the cardholder's photo from the database appears on the guard's PC screen. Then the guard can check the entrant's face against the database photo/video camera snapshot and decide whether to allow the access or not.

SL-01 software. Event list screenshot SL-02 software. Video identification screenshot

For optimum control of pedestrian flow, the KT-05 IP-Stile can be supplied with matching railings.

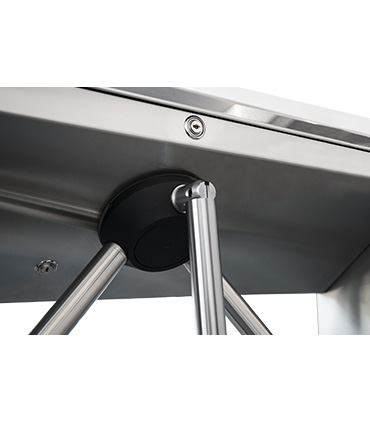

A built-in mechanical release lock enables manual unlocking of the turnstile with a key resulting in free rotation of the barrier arms in both passage directions.

The IP-Stile can optionally be equipped with anti-panic folding arms.

Folding barriers can be released manually, by hands
Folding barriers can be released manually, by hands
Anti-panic folding arms
Anti-panic folding arms
Unblocking with a mechanical release key
Unblocking with a mechanical release key
Power consumption
12 V DC
Number of passage directions
2
Throughput rate (in the single passage mode)
30 persons/min
Throughput rate (in the free passage mode)
60 persons/min
Dimensions (length×width×height)
1170×770×1030 mm
Passageway width
580 mm
Operating temperature range
from +1 °C to +40 °C
IP Code
IP41
"Anti-panic" barrier arms
mechanical
Standard interface
Ethernet
Number of users
50 000
Number of log file events
135 000
Number of readers
2
Card format
EMM HID
Reading range EMM
8 cm
Reading range HID
6 cm

Turnstile housing, barrier arms – stainless steel.

stainless steel
stainless steel

The warranty period is 5 (five) years from the date of sale of the product.
