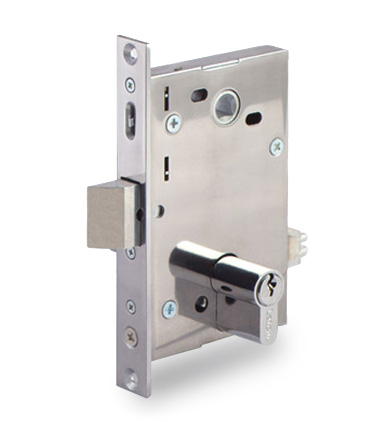

LC72.4 Mortise Electromechanical Lock

operating voltage

temperature range

scheme

3D-presentation

PERCo-LC72.4 electromechanical lock is designed to work as a part of access control systems (ACS) and is used to lock the doors of small and medium thickness from 38mm to 50mm.

Description

Normally open locks open in case of power loss, so they are used at premises with high demands for guaranteed opening of doors and easy evacuation – for fire exits, stairs, elevators, hallways, child care centers, educational and health facilities. It is advisable to use a normally open door locks at offices where both the entrance and the exit are performed with the use of a card, and a key is used for reserve opening. In case of fire, when the lines of communication and electrics fail, it will unlock automatically, the use of a key is not needed.

All body parts of the lock and strike plate have corrosion-resistant coating. The design of electromechanical locks PERCo does not require preventive maintenance and lubrication from the customer for the entire period of operation.

Characteristics

Operating voltage

12 V DC

Consumption current

120 mA

Dimensions (length×width×height)

105×20×150 mm

Operating temperature range

from +1 °C to +45 °C

Air humidity

75% at t=15°C

Climatic category

NF4

Centre-to-centre spacing

72 mm

Bolt throw, day-time mode

11 mm

Bolt throw, night-time mode

18,5 mm

Door thickness

from 38 mm to 50 mm

Protection class

III at IEC335-1

Weight

0.5 kg

Mean lifetime

8 years

Mean time to failure

200 000 passages

stainless steel

All body parts of the lock and strike plate have corrosion-resistant coating.

The design of electromechanical locks PERCo does not require preventive maintenance and lubrication from the customer for the entire period of operation.

The warranty period is 5 (five) years from the date of sale of the product.
