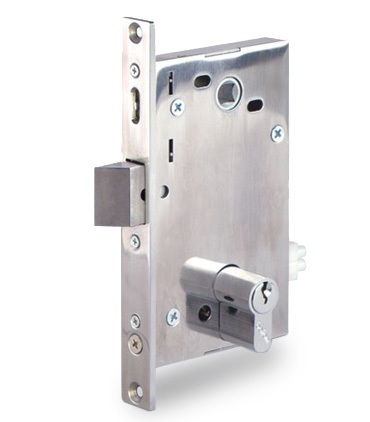

LC85.3 Mortise Electromechanical Lock

LC85.3 Mortise Electromechanical Lock

power consumption

power consumption

temperature range

temperature range

3D-presentation
3D-presentation
PERCo-LC85.3 electromechanical lock is designed to work as a part of access control systems (ACS) and is used to lock the doors of small and medium thickness from 38mm to 50mm.

Normally closed locks are most often used in access control systems, because they do not require power in the closed position and remain locked in case of power loss. To guarantee the opening in an emergency, the lock cylinder can be opened with a key from the outside or with a key or a thumbscrew from the inside. Normally closed locks are used for office and warehouse doors.

All body parts of the lock and strike plate have corrosion-resistant coating. The design of electromechanical locks PERCo does not require preventive maintenance and lubrication from the customer for the entire period of operation.

Power consumption
12 V DC
Consumption current
120 mA
Dimensions (length×width×height)
105×20×170 mm
Operating temperature range
from +1 °C to +45 °C
Air humidity
75% at t=15°C
Climatic category
NF3
Centre-to-centre spacing
85 mm
Bolt throw, day-time mode
11 mm
Bolt throw, night-time mode
18,5 mm
Door thickness
from 38 mm to 50 mm
Protection class
III at IEC335-1
Weight
0.5 kg
Mean time to failure
200 000 passages
stainless steel
stainless steel

All body parts of the lock and strike plate have corrosion-resistant coating.

The design of electromechanical locks PERCo does not require preventive maintenance and lubrication from the customer for the entire period of operation.

The warranty period is 5 (five) years from the date of sale of the product.
