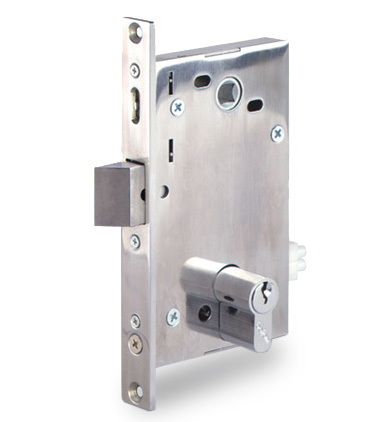

LC85.4 Mortise Electromechanical Lock

LC85.4 Mortise Electromechanical Lock

power consumption

power consumption

temperature range

temperature range

3D-presentation
3D-presentation
PERCo-LC85.4 electromechanical lock is designed to work as a part of access control systems (ACS) and is used to lock the doors of small and medium thickness from 38mm to 50mm.

Normally open locks open in case of power loss, so they are used at premises with high demands for guaranteed opening of doors and easy evacuation – for fire exits, stairs, elevators, hallways, child care centers, educational and health facilities. It is advisable to use a normally open door locks at offices where both the entrance and the exit are performed with the use of a card, and a key is used for reserve opening. In case of fire, when the lines of communication and electrics fail, it will unlock automatically, the use of a key is not needed.

All body parts of the lock and strike plate have corrosion-resistant coating. The design of electromechanical locks PERCo does not require preventive maintenance and lubrication from the customer for the entire period of operation.

Power consumption
12 V DC
Consumption current
120 mA
Dimensions (length×width×height)
105×20×170 mm
Operating temperature range
from +1 °C to +45 °C
Air humidity
75% at t=15°C
Climatic category
NF3
Centre-to-centre spacing
85 mm
Bolt throw, day-time mode
11 mm
Bolt throw, night-time mode
18,5 mm
Door thickness
from 38 mm to 50 mm
Protection class
III at IEC335-1
Weight
0.5 kg
Mean lifetime
8 years
Mean time to failure
200 000 passages
stainless steel
stainless steel

All body parts of the lock and strike plate have corrosion-resistant coating.

The design of electromechanical locks PERCo does not require preventive maintenance and lubrication from the customer for the entire period of operation.

The warranty period is 5 (five) years from the date of sale of the product.

Иконка
LC85.4 Assembly & Operation Manual
(266 kB)  — 26.08.2013
