RP-15.2 Proximity Card Reader

RP-15.2 Proximity Card Reader

operating voltage

operating voltage

temperature range

temperature range

protection rating

protection rating

standard interface

standard interface

Proximity card readers are designed for operation with identifiers in the form of proximity cards and keyfobs, which are used in access control systems (ACS), paid access systems etc.
PERCo manufactures various models of proximity card readers supporting the most popular formats – HID, EM-Marin (HID ProxCard II, ISO prox II; EM-Marin IL-05ELR, ЕМ4100).
  • Long reading distance
  • Installation on metal surface (doors, turnstiles, railings) is allowed

The model features a plastic housing with a two-colour LED indicator on the front panel. Thanks to slender housing and compact dimensions (145×45×23 mm) the reader can be installed on a door case.

Operation is allowed within - 40°С - +50°С temperature range. Compound-filling of the electronic board protects it from negative environmental impacts. Shielded cable is connected at the back panel of the housing.

Each identifier (proximity card or keyfob) has its own personal code that is set during the production and cannot be changed during operation. Identifiers do not have an internal power source that makes their operating life unlimited.

When turned on the reader radiates close low frequency electromagnetic field. Caught in this field the identifier activates and starts transmitting individual encoded signal received by the reader. Maximum distance possible for identifier sensing by the reader depends on the type of identifier.

Code reading is provided by presenting identifier to the reader. The identifier can be placed inside the pocket, wallet or any other magneto transparent container (cover). Code reading is confirmed by a short sound indication and an LED indication on the turnstile housing.

External control over light and sound indication is provided. The output data format with identifier code is set at the installation by the corresponding wire connection. This is the reason why PERCo proximity card readers can be simultaneously used with external controllers of different types.

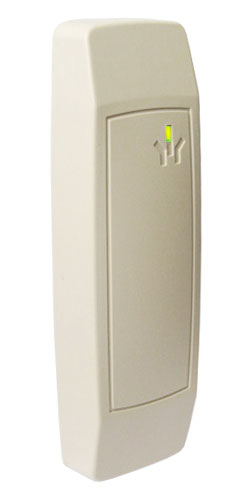

light-beige
light-beige

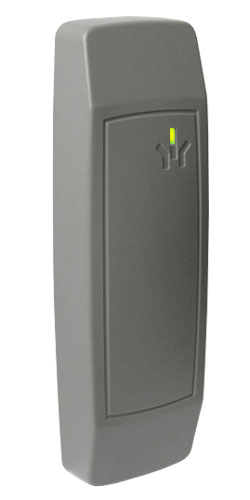

dark-grey
dark-grey
Operating voltage
12 V DC
Consumption current
60 mA
Dimensions (length×width×height)
23×45×145 mm
Operating temperature range
from -40 °C to +50 °C
IP Code
IP67
Standard interface
Wiegand
sandpaper powder coating; light grey colour
sandpaper powder coating; light grey colour

The warranty period is 5 (five) years from the date of sale of the product.
