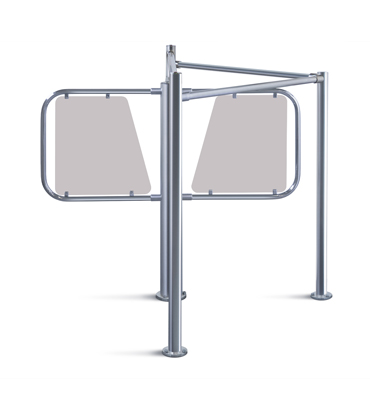

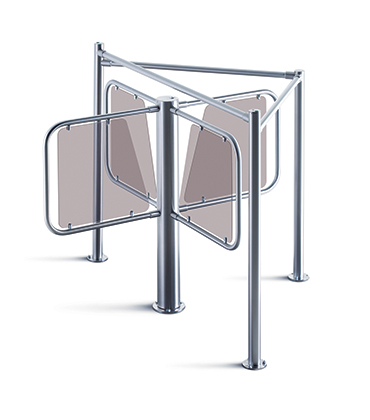

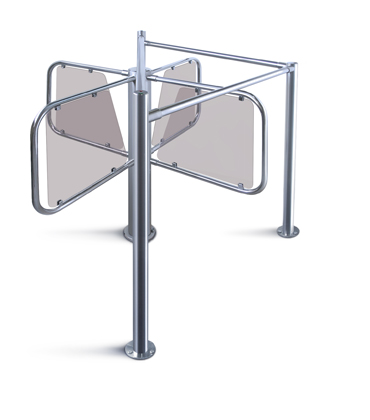

RTD-03S Waist-high Rotor Turnstile with RB-03S guide barrier set for indoor application

operating voltage

operating voltage

power consumption

power consumption

passage directions

passage directions

persons/min

persons/min

temperature range

temperature range

protection rating

protection rating

mechanical unlocking

mechanical unlocking

motor drive

motor drive

3D-presentation
3D-presentation
video
video
The RTD-03S rotor turnstiles are designed for control of access at  entrance points where security and comfort of passage are equally important.

Delivery set

  • turnstile housing
  • guide barrier set
  • remote control unit with power supply and battery
  • remote control panel

Design

  • 90° rotor configuration
  • Red/Green status lights

The elegant winged design of this PERCo turnstile meets both comfort and aesthetic requirements for a smart entrance point.

The RTD-03S waist-high rotor turnstile comes with a guide barrier set as standard.

The RB-03S guide barrier set consist of posts and handrails made of polished stainless steel tube Ø50 mm and Ø32 mm respectively.

High durability and injury-free operation make the use of the RTD-03S long-lived and safe. The electric drive provides smooth, noiseless and inertia-free rotation.

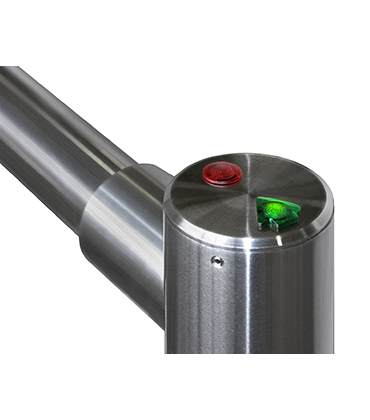

Located on the guide barrier posts Red/Green status lights indicate the direction of authorized passage and the turnstile status.

Key override control enables mechanical unblocking of the turnstile for free rotation in both directions.

If required, the turnstiles can be completed with matching railings.

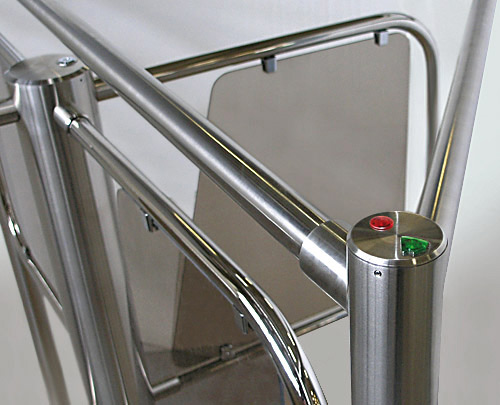

Waist height turnstile direction indicator lights
Waist height turnstile direction indicator lights
Control panel for remote management
Control panel for remote management

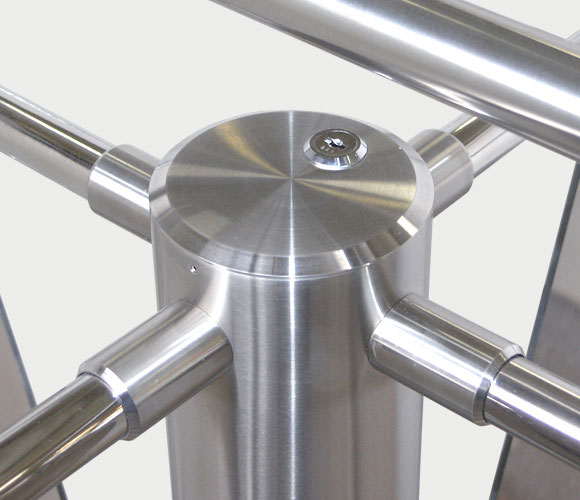

PERCo access control turnstiles have key unblocking possibility
PERCo access control turnstiles have key unblocking possibility
Operating voltage
24 V DC
Power consumption
60 W
Number of passage directions
2
Throughput rate (in the single passage mode)
23 persons/min
Dimensions (length×width×height), without a guide barrier set
1202×1202×1013 mm
Dimensions (length×width×height), with a guide barrier set
1484×1368×1127 mm
Passageway width
600 mm
Operating temperature range
from +1 °C to +50 °C
IP Code
IP41
stainless steel
stainless steel

The warranty period is 5 (five) years from the date of sale of the product.
