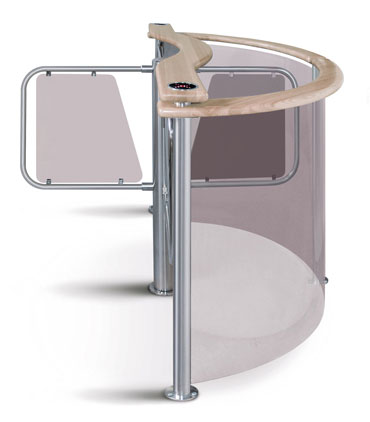

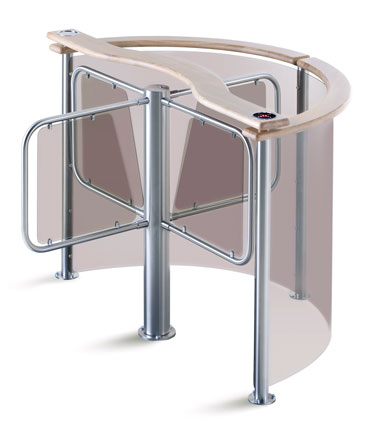

RTD-03S Waist-high Rotor Turnstile with RB-03TP guide barrier set for indoor application

operating voltage

operating voltage

power consumption

power consumption

passage directions

passage directions

persons/min

persons/min

temperature range

temperature range

protection rating

protection rating

mechanical unlocking

mechanical unlocking

motor drive

motor drive

3D-presentation
3D-presentation
video
video
The RTD-03S waist-high rotor turnstile with wooden handrails is designed for controlling access to facilities with high style and comfort requirements.

Delivery set

  • turnstile housing
  • guide barrier set
  • remote control unit with power supply and battery
  • remote control panel

The elegant winged design of this PERCo turnstile meets both comfort and aesthetic requirements for a smart entrance point.

  • 90° rotor configuration
  • LED directional indicators

The RTD-03S waist-high rotor turnstile comes with a guide barrier set as standard.

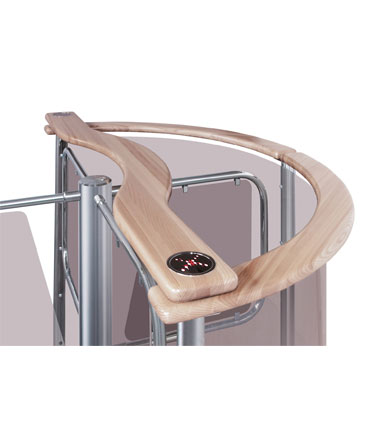

The RB-03TP guide barrier set consist of posts made of polished stainless steel tube O50 mm, filler panels of tinted polycarbonate sheets and wooden handrails with built-in LED directional indicators.

High durability and injury-free operation make the use of the RTD-03S long-lived and safe. The electric drive provides smooth, noiseless and inertia-free rotation.

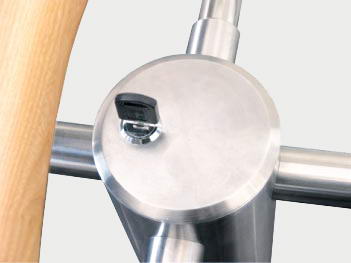

Key override control enables mechanical unblocking of the turnstile for free rotation in both directions.

If required, the turnstiles can be completed with matching railings.

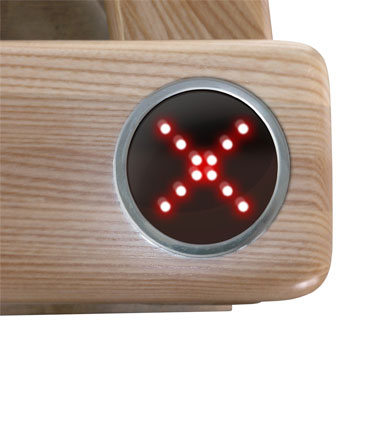

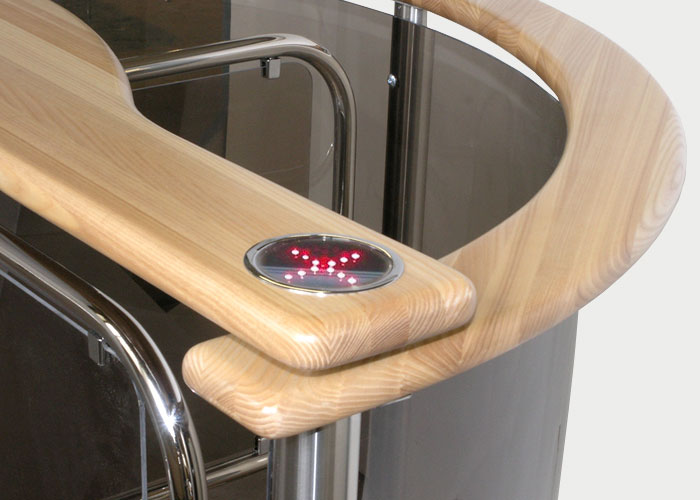

LED indicators at wooden rails of RTD-03S turnstiles
LED indicators at wooden rails of RTD-03S turnstiles
Control panel for remote management
Control panel for remote management
RTD-03S half height turnstiles have mechanical over blocking function
RTD-03S half height turnstiles have mechanical over blocking function
Operating voltage
24 V DC
Power consumption
60 W
Number of passage directions
2
Throughput rate (in the single passage mode)
23 persons/min
Dimensions (length×width×height), without a guide barrier set
1202×1202×1013 mm
Dimensions (length×width×height), with a guide barrier set
1531×1345×1071 mm
Passageway width
600 mm
Operating temperature range
from +1 °C to +50 °C
IP Code
IP41

Frame, guide barrier set – stainless steel.

stainless steel
stainless steel

Filler panels – polycarbonate sheets.

Handrails – solid ashwood / beechwood.

The warranty period is 5 (five) years from the date of sale of the product.
