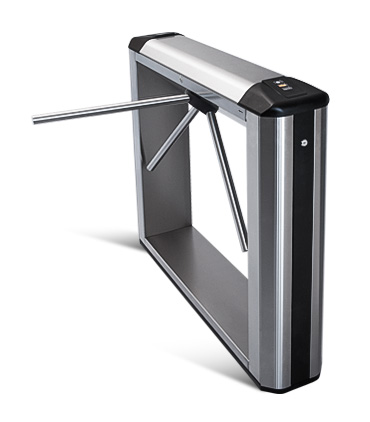

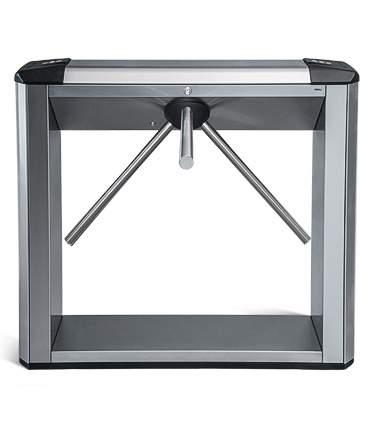

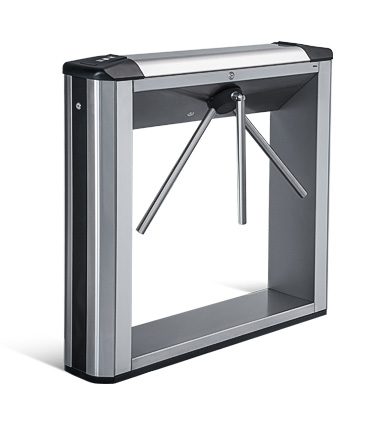

Box tripod turnstile TB-01.1 is a compact and elegant solution to equip your entrance point; installed in a line several turnstiles form a secure passageway without installation of extra guide barriers. The box turnstile features 2 built-in readers with a Wiegand interface connection with a controller.

Delivery set

  • turnstile with built-in electronics and 2 readers (EMM/HID)
  • remote control panel

Automatic “Anti-panic” function applied for model TB-01.1 is a modern solution which excludes the direct physical involvement. Automatic “Anti-panic” barrier arms unlike the mechanical ones exclude their unsanctioned folding by unauthorized people.

When power supply is restored or Fire Alarm signal is removed, the arm shall be manually set into operating position.

The already built-in readers will save you equipment purchase and installation expenses.

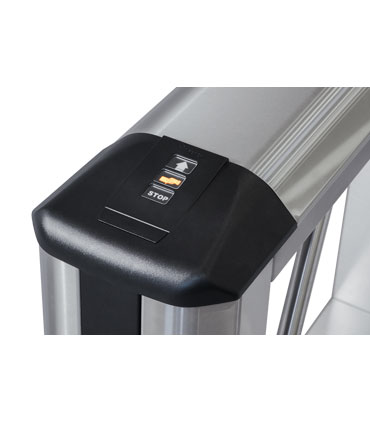

The turnstile top cover features LED direction indicators with bright pictograms displaying a status of the turnstile, indicating authorized/ not authorized passage direction: green arrow indicates direction of authorized passage, while stop signal indicates the turnstile is locked and passage is not allowed.

The turnstile can be operated:

  • as a stand-alone unit controlled from a remote control panel (delivered with a standard delivery set) or from a wireless remote control
  • from an access control system (ACS) via a controller

When controlled from an ACS, the turnstile can be configured to operate in either pulse control mode or potential control mode. This control mode choice option ensures proper operation of the turnstile under access control systems of different manufacturers, including capability to use lock controllers with outputs supporting potential control mode. Galvanic decoupling of the turnstile outputs from an ACS is provided.

Using the turnstile in an ACS allows for correct register of personnel attendance time, especially relevant for Time and Attendance systems.

The turnstile is a normally closed unit – stays locked until a passage authorizing signal is received, or the turnstile is unlocked with a mechanical release key. The turnstile can be unlocked by a signal from a fire alarm system.

In case of emergency the turnstile can be unlocked with a mechanical release key, ensuring free rotation of barrier arms in both directions. The turnstile as standard comes with a mechanical release lock built-in into the turnstile housing and a set of keys.

The turnstile can optionally be supplied with anti-panic folding arms to ensure free passageway in emergency situations without use of special keys or tools.

Thanks to reduced power consumption the turnstile is supplied with safe voltage (max. 14V).

The turnstile can be completed with matching railings.

Guests present their cards to proximity card reader
Guests present their cards to proximity card reader

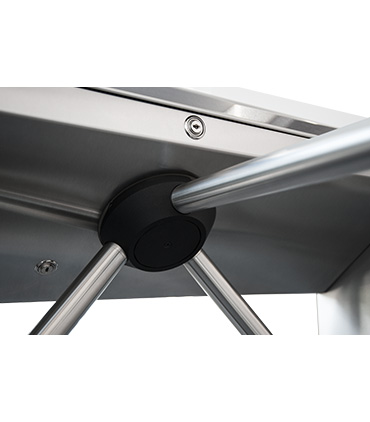

Unblocking with a mechanical release key
Unblocking with a mechanical release key
Folding barriers can be released manually, by hands
Folding barriers can be released manually, by hands
Anti-panic folding arms
Anti-panic folding arms
Control panel for remote management
Control panel for remote management
Power consumption
12 V DC
Operating voltage
20 W
Number of passage directions
2
Throughput rate (in the single passage mode)
30 persons/min
Throughput rate (in the free passage mode)
60 persons/min
Dimensions (length×width×height)
770×1170×1030 mm
Passageway width
580 mm
Operating temperature range
from +1 °C to +40 °C
IP Code
IP41
"Anti-panic" barrier arms
mechanical
Standard interface
Wiegand
Number of readers
2
Reading range EMM
8 cm
Reading range HID
6 cm

Housing, barrier arms – stainless steel.

stainless steel
stainless steel

The warranty period is 5 (five) years from the date of sale of the product.
