TTD-03.1S Box Tripod Turnstile

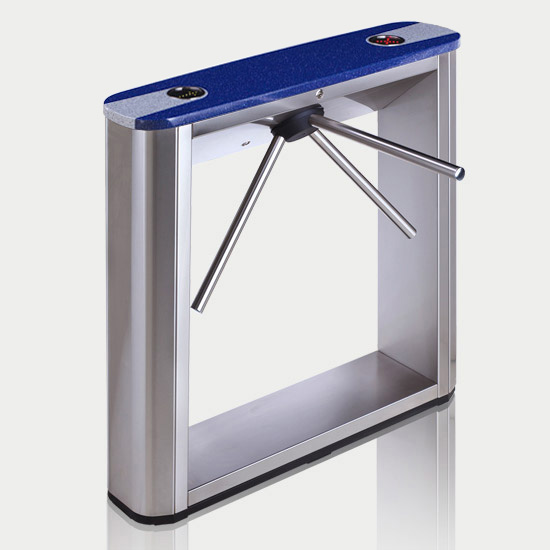

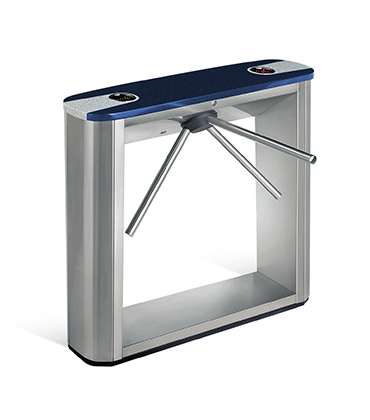

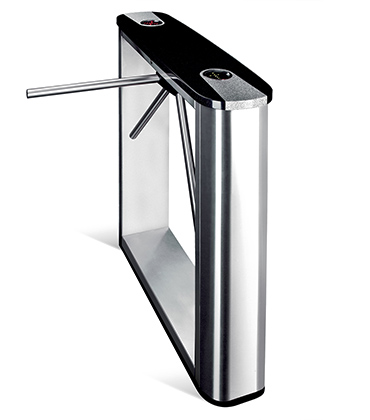

TTD-03.1S Box Tripod Turnstile for indoor application

power consumption

power consumption

passage directions

passage directions

persons/min

persons/min

temperature range

temperature range

protection rating

protection rating

mechanical unlocking

mechanical unlocking

3D-presentation
3D-presentation
video
video
The TTD-03.1 turnstiles offer an effective solution for pedestrian access control. These box tripods are ideal for the entrances where fast pedestrian throughput and aesthetics must come with a sufficient degree of access security. Installed in one line, the turnstiles form passageways without installation of extra guide barriers.

Delivery set

  • turnstile with built-in electronics
  • remote control panel

Design

  • artificial stone top cover with two built-in LED directional indicators
  • reader operating zones on the top cover stand out with a different colour

The top cover of the TTD-03.1 is made of artificial stone and is radio-transparent for concealed mounting of proximity card readers.

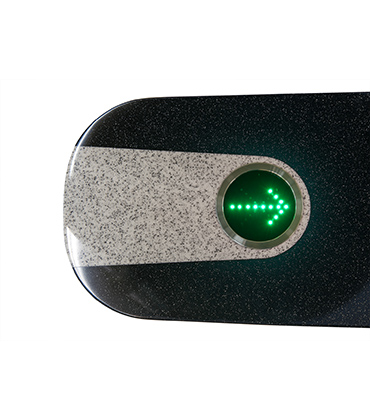

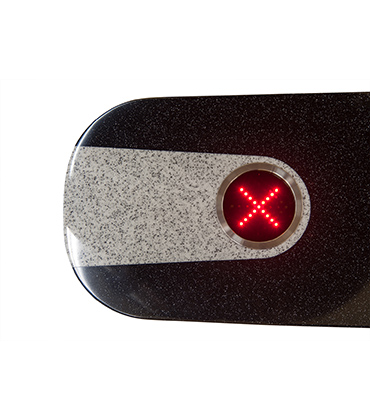

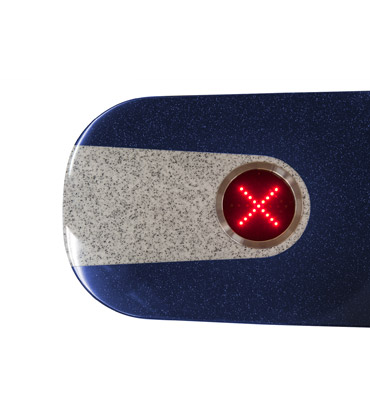

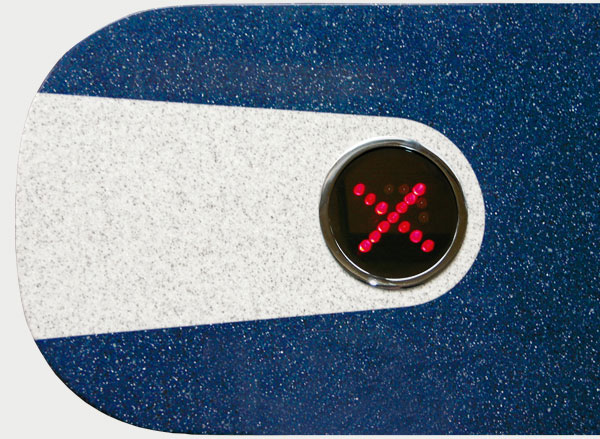

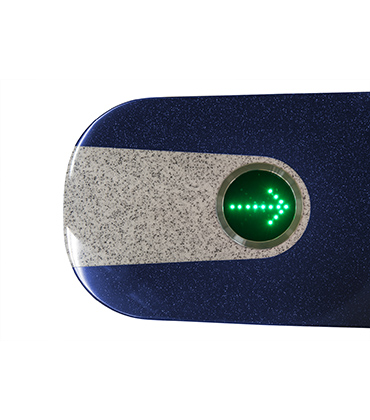

Two LED directional indicators with bright pictograms are located on the top cover as standard: Green Arrow indicates that the turnstile is unlocked to permit a passage and shows the direction of authorised passage; Red Cross indicates that passage is not allowed and shows that the turnstile remains in locked status.

Also the turnstile has relay outputs enabling to connect optional remote light indicators.

The TTD-03.1 is a normally closed unit (N/C), i.e. the turnstile remains locked until it receives a valid authorisation signal or is unlocked with a mechanical release key.

The turnstile features a “Fire Alarm” control input and can be automatically unlocked by a fire alarm signal or emergency button.

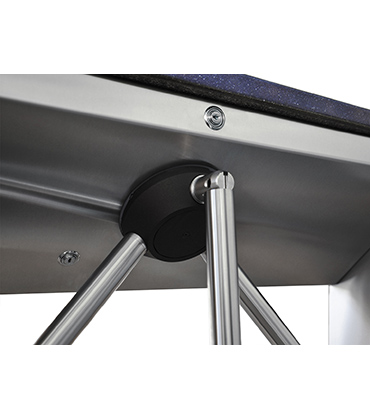

A key override allows an operating technician to unlock both directions of the TTD-03.1 turnstile if there is need to override an access control system or in case of emergency or power failure. The mechanical release lock is built into the turnstile housing as standard and provides free rotation of the barrier arms.

Optionally the turnstile can be supplied with anti-panic folding arms to clear the passageway in emergency situations without use of any special keys or tools.

Thanks to its low power consumption, the turnstile is supplied with safe voltage – 14V max.

If required, the turnstiles can be completed with matching railings.

Visual LED indicator at 2 directions
Visual LED indicator at 2 directions

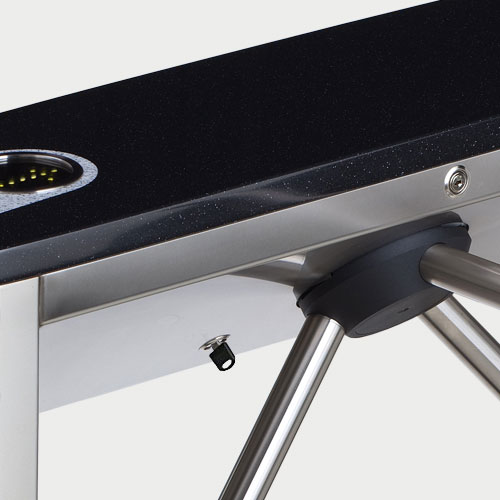

Кey override control
Кey override control
Folding barriers can be released manually, by hands
Folding barriers can be released manually, by hands

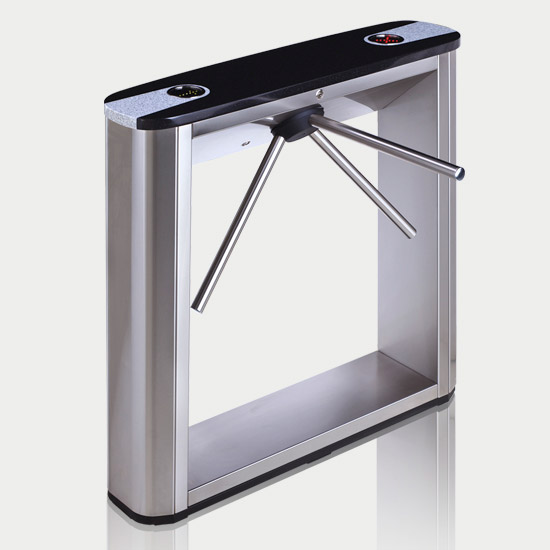

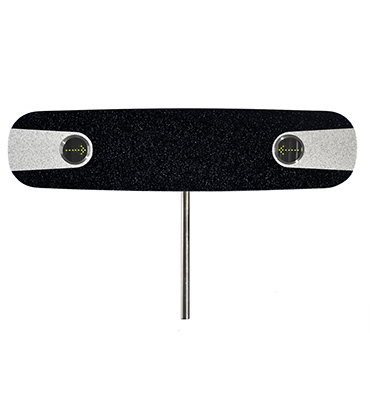

PERCo-TTD-03.1S box turnstiles with black top cover
PERCo-TTD-03.1S box turnstiles with black top cover

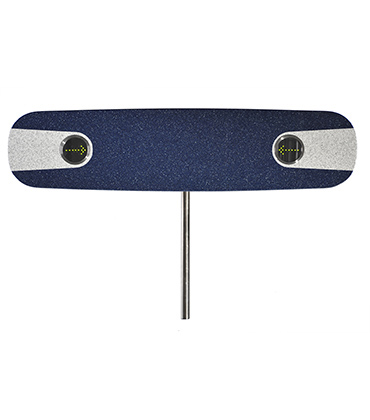

TTD-03.1S Box Tripod Turnstile with blue top cover
TTD-03.1S Box Tripod Turnstile with blue top cover
Control panel for remote management
Control panel for remote management

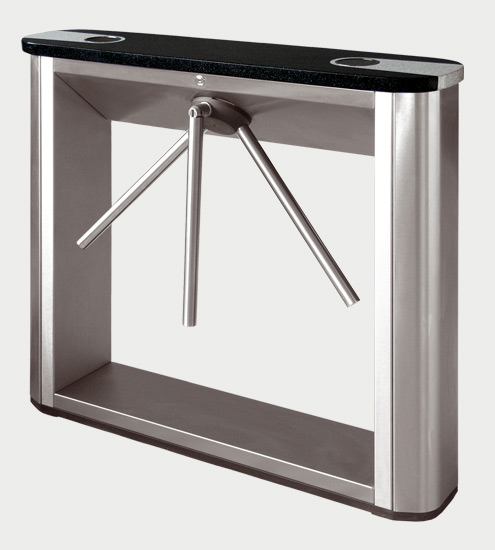

Anti-panic barriers at TTD-03.1 turnstile
Anti-panic barriers at TTD-03.1 turnstile
Power consumption
12 V DC
Number of passage directions
2
Throughput rate (in the single passage mode)
30 persons/min
Throughput rate (in the free passage mode)
60 persons/min
Passageway width
500 mm
Operating temperature range
from +1 °C to +40 °C
IP Code
IP41

Housing, barrier arms – stainless steel.

stainless steel
stainless steel

Top cover – artificial stone.

artificial stone, dark blue colour
artificial stone, dark blue colour
artificial stone, black colour
artificial stone, black colour

Powder coating to RAL colours is available on order. Time of manufacture and price quotation are specified individually.

The warranty period is 5 (five) years from the date of sale of the product.
