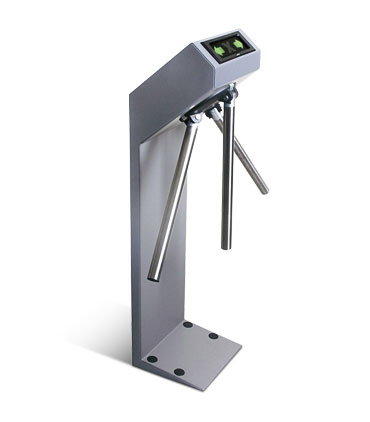

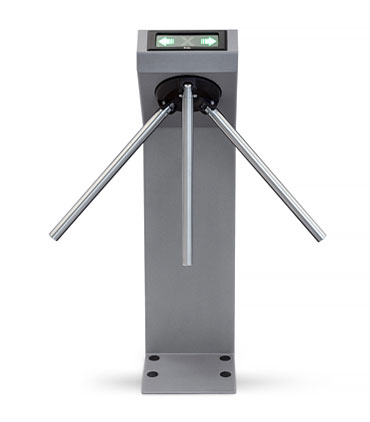

TTR-07 Tripod Turnstile with automatic anti-panic folding arms

operating voltage

operating voltage

passage directions

passage directions

persons/min

persons/min

temperature range

temperature range

protection rating

protection rating

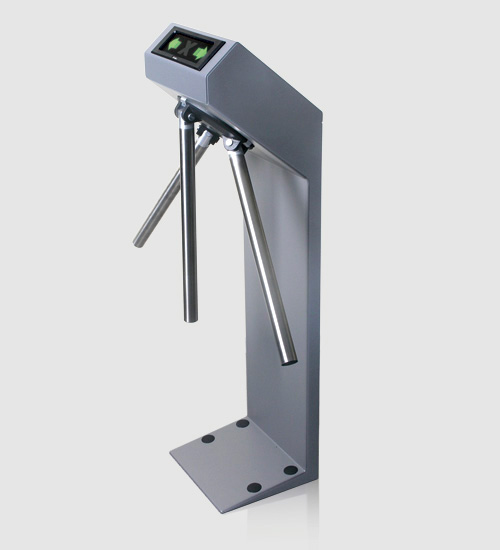

"anti-panic" barrier arms

"anti-panic" barrier arms

3D-presentation
3D-presentation
video
video
The TTR-07 compact tripod turnstile features anti-panic barrier arms automatically falling down by alarm signal or at a power loss, which makes it possible to immediately clear the passageway in emergency situations.

The TTR-07 turnstile with automatic anti-panic folding arms is suitable for indoor application at entrances of commercial, public and industrial organizations providing distant clear of passageway in case of emergency.

Delivery set

  • turnstile with built-in electronics
  • remote control panel

With its compact design the TTR-07 can be applied at entrance points of various configurations.

The turnstile performs emergency folding of barrier arms by remote signal from an access control system or at a power loss. When the power is restored to bring back the folded arm into operating position (blocking the passage) just lift it manually.

The TTR-07 can be operated from the remote control panel included in a standard delivery set or a wireless remote control (optionally) and can be easily integrated into most access control systems.

As the turnstile can be preset to operate in either pulse or potential control mode, it ensures compatibility with virtually any access control system.

An operating mode for locking or opening the turnstile can be independently set for each passage direction. The turnstile comes with built-in optical arm rotation sensors to ensure accurate registration of each passage through the turnstile as well as the passage direction.

The TTR-07 turnstile is designed with the control logic board installed inside the turnstile housing. After each passage the barrier arms are automatically returned to home position by a self-centering mechanism. A built-in hydraulic damper makes the turnstile operation smooth and quiet.

A dedicated «Fire Alarm» control input allows connection of an emergency unlocking device (e.g. fire alarm control panel, emergency button, etc).

The turnstile is provided with relay outputs for optional connection of an intrusion detector and a siren as well as remote light indicators to show if access is refused or granted.

If required, the turnstiles can be completed with matching railings.

Turnstiles folding arms can be released by alarm button
Turnstiles folding arms can be released by alarm button

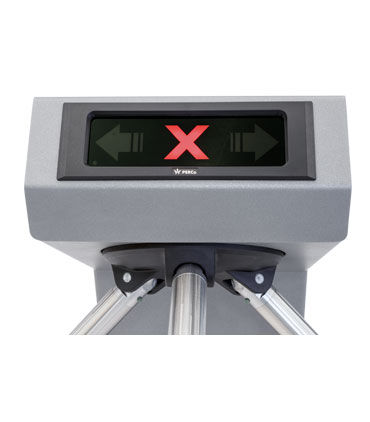

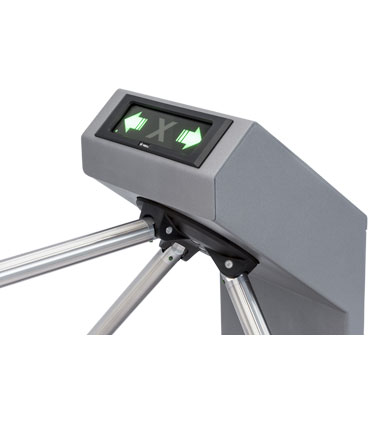

LED display with possible directions
LED display with possible directions

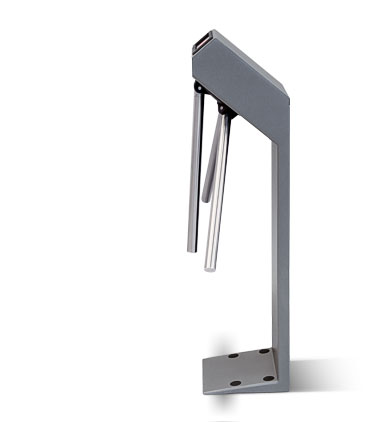

Compact turnstile folding arms released
Compact turnstile folding arms released
Control panel for remote management
Control panel for remote management
Operating voltage
12 V DC
Power consumption
72 W
Consumption current
6.0 A
Number of passage directions
2
Throughput rate (in the single passage mode)
30 persons/min
Throughput rate (in the free passage mode)
60 persons/min
Dimensions (length×width×height), without barrier arms
280×260×1054 mm
Dimensions (length×width×height), with barrier arms
798×752×1054 mm
Passageway width
530 mm
Operating temperature range
from +1 °C to +50 °C
IP Code
IP41
"Anti-panic" barrier arms
automatic
Mean lifetime
8 years
Mean time to failure
4 000 000 passages

Housing – powder coated steel.

sandpaper powder coating with pearl mica effect; dark grey colour
sandpaper powder coating with pearl mica effect; dark grey colour

Barrier arms – stainless steel.

The warranty period is 5 (five) years from the date of sale of the product.
