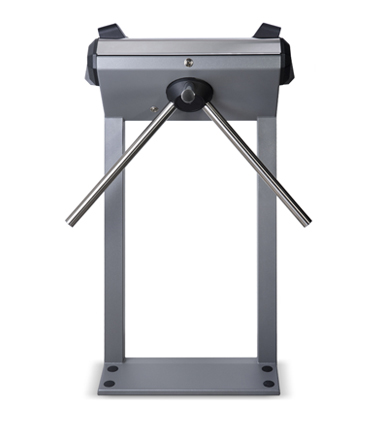

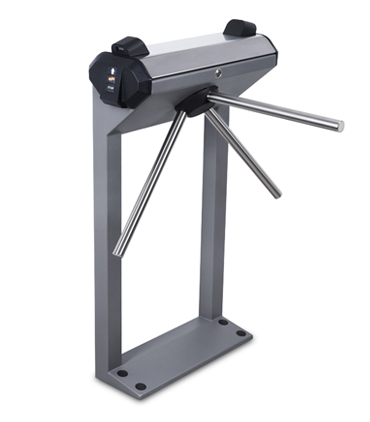

KT-02.9Q IP-Stile

operating voltage

operating voltage

passage directions

passage directions

persons/min

persons/min

temperature range

temperature range

protection rating

protection rating

mechanical unlocking

mechanical unlocking

interface

interface

users

users

events

events

readers

readers

card format

card format

card format

card format

identification by smartphone

identification by smartphone

bank card

bank card

KT-02.9Q IP-Stile is a turnkey solution for access control. IP-Stile can operate with barcodes, MIFARE/EMM/HID access cards, payment cards with PayPass, and smartphones with NFC modules as identifiers.

Delivery set:

  • turnstile
  • built-in ACS controller

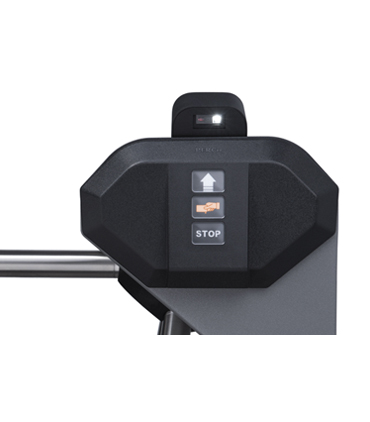

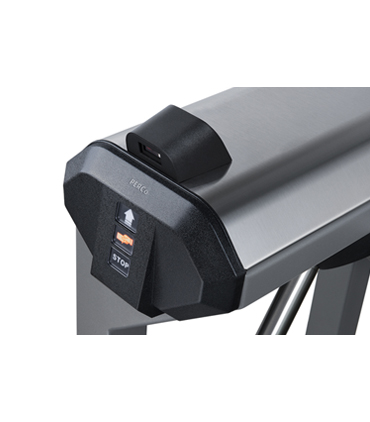

  • 2 built-in barcode scanners
  • 2 built-in readers (EMM/HID/MIFARE)

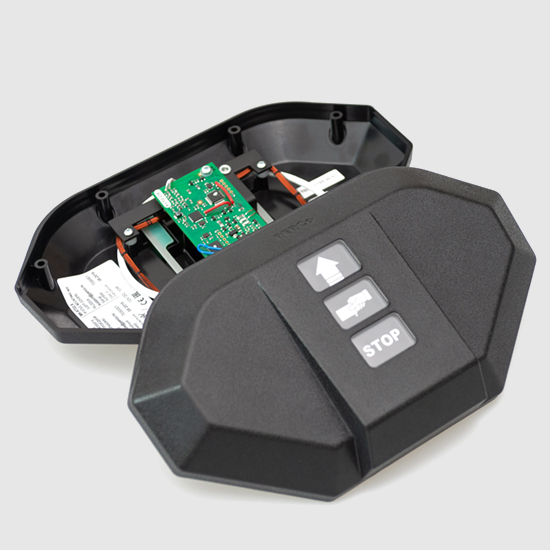

  • RC-panel
  • software

4 readers and 2 locks can be connected to one IP-Stile controller to organize access control in two rooms.

Previously installed KT-02, which supports only access cards, can be updated without a complete replacement using special mounting kits:

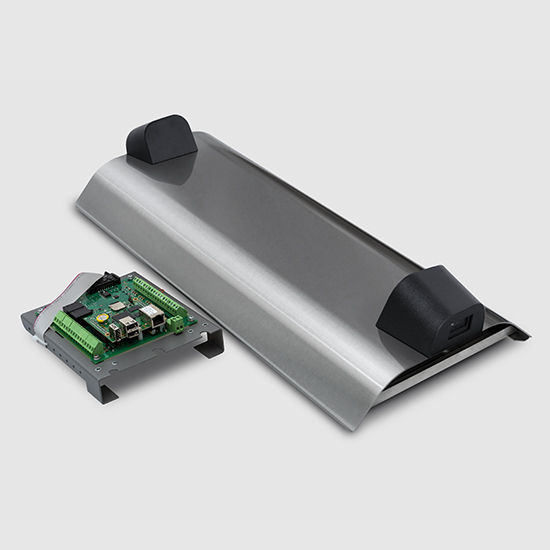

For barcode identification: MK-KT-02Q Mounting kit (top cover with 2 barcode scanners and a controller)

To switch from HID/EMM to MIFARE cards: MK-KT-02.9 Mounting kit (universal multi-format readers).

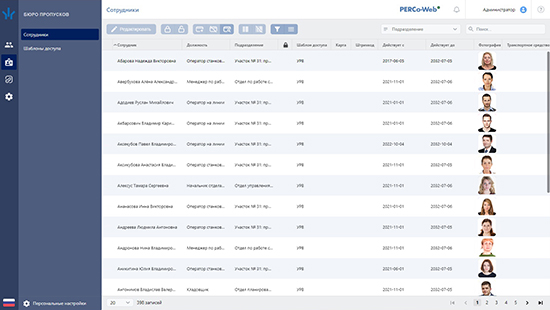

PERCo-Web

The software provides all the main access control functions (access by time, zonality control (antipass), double-check verification) and has a limit of 100 employees in the system.

PERCo-Web SW embedded in IP-Stile controller allows organizing access control system without a dedicated server: the controller is used as a server. This architecture simplifies the implementation of the system and reduces its cost. The system can process data of 500 employees and 500 visitors and have up to 10 controllers.

The mechanical release function provides free rotation of barrier arms in both directions. The mechanical unblocking lock is built in a turnstile housing and supplied with a set of keys.

Automatic “anti-panic” barrier arms allow organizing a fast evacuation in case of emergencies.

IP-Stile can also be completed with railings to form an additional passage zone.

Key override control
Key override control

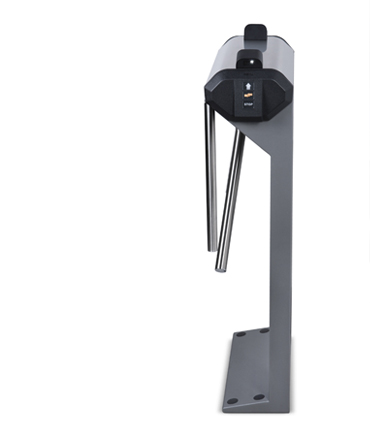

"Anti-panic" folding arms
"Anti-panic" folding arms
Operating voltage
12 V DC
Consumption current
max 1 A
Number of passage directions
2
Throughput rate (in the single passage mode)
30 persons/min
Throughput rate (in the free passage mode)
60 persons/min
Dimensions (length×width×height)
640×683×1084 mm
Passageway width
500 mm
Operating temperature range
from +1 °C to +50 °C
IP Code
IP41
Standard interface
Ethernet
Number of users
up to 50 000
Number of log file events
up to 150 000
Number of readers
2
Number of additional readers
4
Number of additional OD
2
Card format
EMM/HID/MIFARE
Control outputs amount
5
Number of test inputs
8
Mean time to failure
4 000 000 passages
Number of barcode scanners
2
Barcode scanner type
Mertech N200 P2D
Barcode types
1D, 2D
Minimum contrast of barcodes
20%

Housing – powder coated steel.

sandpaper powder coating with pearl mica effect; dark grey color
sandpaper powder coating with pearl mica effect; dark grey color

Top cover, barrier arms – stainless steel.

stainless steel
stainless steel

The warranty period is 5 (five) years from the date of sale of the product.
