AT01 Pyrometer

operating voltage

operating temperature range

measured temperature range

measuring range

standard interface

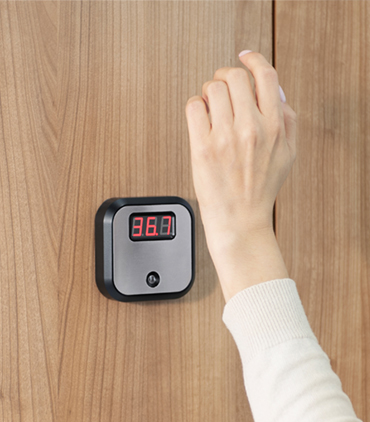

AT01 pyrometer is designed for touch-free temperature detection of (wrists, palms) at check-points of companies, administrative institutions, transport facilities, etc.

Description

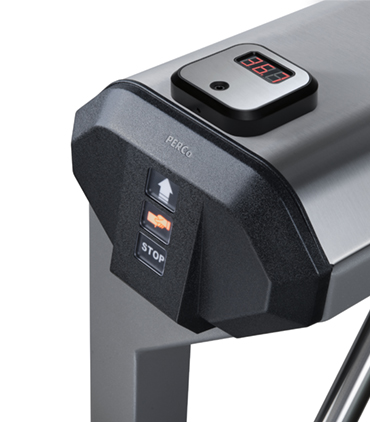

The pyrometer operates as an external verification device with a turnstile or lock as part of the access control systems. The system allows setting a threshold of normal body temperature, above which the turnstile or lock will not open for passage.

Temperature accuracy is 0.2 degrees within the measuring range of 36-38 degrees.

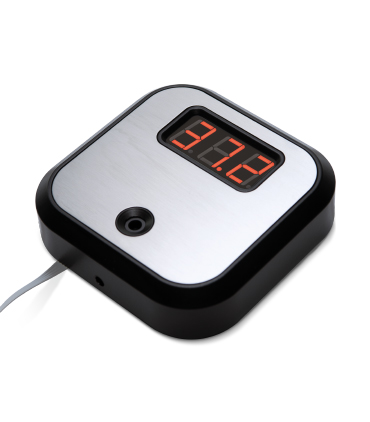

The pyrometer is a module in a metal case, on the front panel of which there is a three-digit LED indicator with dividing points and a temperature sensor window. The pyrometer has a built-in sound indication. Measuring the temperature of the object is confirmed with a short-term sound signal.

The pyrometer is designed for indoor operation. The delivery set includes a metal base for fixing the pyrometer to the surface.

Characteristics

Operating voltage

12 V DC

Power consumption

1.5 W

Consumption current

100 mA

Dimensions (length×width×height)

82×82×20 mm

Operating temperature range

+35° - +16°

Accuracy

±0,2°С

Adjustable temperature range

+ 37.0° - + 38.4° in 0.2° increments

Measuring range

10 - 20 mm

IP Code

IP41

Communication interfaces with the controller

OK outputs, Wiegand

Mean lifetime

8 years

Pyrometer weight

300 g

The warranty period is 5 (five) years from the date of sale of the product.
