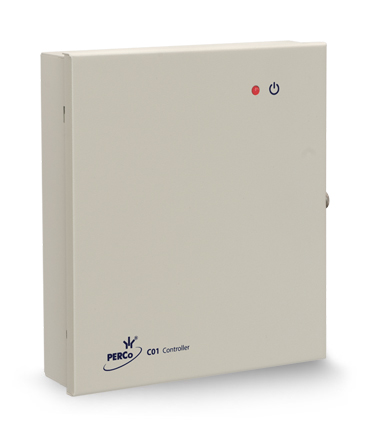

C-01 Controller for online systems

C-01 Controller for online systems

operating voltage

operating voltage

temperature range

temperature range

standard interface

standard interface

locks

locks

readers

readers

control outputs amount

control outputs amount

test inputs

test inputs

turnstiles amount

turnstiles amount

boom barriers amount

boom barriers amount

USB scanners

USB scanners

RS-232 scanners

RS-232 scanners

Online-controller PERCo-C-01 features unique application characteristics and is designed for organization of access control in online-systems. Open protocol of the controller allows third-party developers to use it for organizing access control at fitness-centers, museums, theaters, amusement parks, parking lots and many other sites.
For convenience of developers the delivery set includes SDK protocol with use-cases.

It is possible to connect the following devices simultaneously to C-01 controller:

  • 4 barcode scanners: two via RS-232 interface and two via USB
  • 2 readers via Wiegand interface (it is possible to connect card capture reader instead of the second reader).

Controller C-01 receives data from readers that are connected to it and sends it to the software server. Software command causes controller to unlock operational device.

PERCo-C-01 controller can operate the following devices depending on the selected configuration:

  • One turnstile or swing gate;
  • One lock (passage control in two directions);
  • Two locks (passage control in one direction);
  • One boom barrier or gates automated drive.

Controller is connected to the network via Ethernet interface. Configuration of the Controller is done via web-interface.

Controller has an open application exchange protocol that uses JSON (RFC 7159) format.

Applied access mode (Open/Closed) is stored in the non-volatile memory of the controller that prevents from unauthorized changes in case of errors or power outage.

Fire Alarm device can be connected to the controller.

Operating voltage
12 V DC
Consumption current
0.2 A
Dimensions (length×width×height)
205×189×45 mm
Operating temperature range
from +1 °C to +40 °C
Standard interface
Ethernet
Number of controlled locks
2
Number of readers
2
Control outputs amount
4
Number of test inputs
2
Turnstiles amount
1
Boom barriers amount
1
USB scanners
2
RS-232 scanners
2

The warranty period is 5 (five) years from the date of sale of the product.
