Electromechanical Locks

PERCo locks are electromechanical mortise locks designed for operation as part of Access control systems. PERCo produces two model series of locks: LB-series and LC-series. Both of them are made for indoor operation for doors of small and medium thickness (from 38 to 50 mm).

LB-series is a new product of PERCo company, which is unique at the market. In LB-series locks voltage is supplied through contacts in the locking bolt of LB-series lock. Power cable and control cable are connected through the strike plate in the door frame, not through the door leaf, which makes installation easier and provides aesthetically pleasing exterior of the door.

In the LC-series locks the control cable is connected in the ordinary way, through the door leaf. LC-series locks have two operation modes - day-time (with small bolt throw) and night-time (with enhanced bolt throw).

Differing in control mode (normally open/closed) and in centre-to-centre spacing, locks of LB series are presented in 6 models, while LC series locks are presented in 4 models.

Model Power connection Control mode Centre-to-centre spacing Type of locking bolt
LB72.1 With terminal block Normally closed 72 mm Flat locking bolt, with blocker roll
LB72.2 With terminal block Normally open 72 mm Flat locking bolt, with blocker roll
LB85.1 With terminal block Normally closed 85 mm Flat locking bolt, with blocker roll
LB85.2 With terminal block Normally open 85 mm Flat locking bolt, with blocker roll
LBP85.1 With terminal block Normally closed 85 mm Flat locking bolt, with blocker roll
LBP85.2 With terminal block Normally open 85 mm Flat locking bolt, with blocker roll
LC72.3 Without terminal block Normally closed 72 mm Skewed locking bolt, with day/night switch
LC72.4 Without terminal block Normally open 72 mm Skewed locking bolt, with day/night switch
LC85.3 Without terminal block Normally closed 85 mm Skewed locking bolt, with day/night switch
LC85.4 Without terminal block Normally open 85 mm Skewed locking bolt, with day/night switch
Place of installation Required type of lock Corresponding lock models
Premises with standard safety requirements – offices, accountant departments, warehouses, staff rooms. Normally-closed electromechanical lock with potential operating mode – opens when energized. When the power is off, the lock can be unblocked mechanically with a key or thumbscrew (from inside). LB72.1
LB85.1
LBP85.1
LC72.3
LC85.3
Premises with high public safety requirement – emergency, staircase and elevator exits, childcare, educational and healthcare facilities. Normally-open electromechanical lock with potential operating mode – opens when deenergized. The lock opens in any situation (ACS controller failure, damaged cable, power loss). LB72.2
LB85.2
LBP85.2
LC72.4
LC85.4

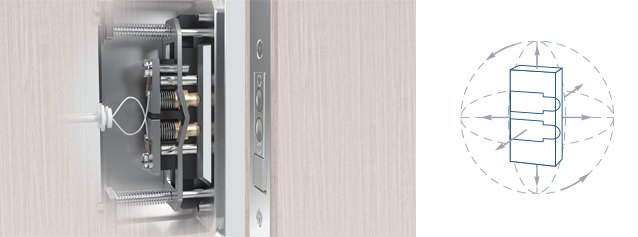

Voltage is supplied through the groups of contacts in the locking bolt and in the mating lock under the keeper. Installation is made through the door frame, which allows saving door and avoid using adapters.

PERCo-LB locks & Standard locks
PERCo-LB
locks
Standard
locks

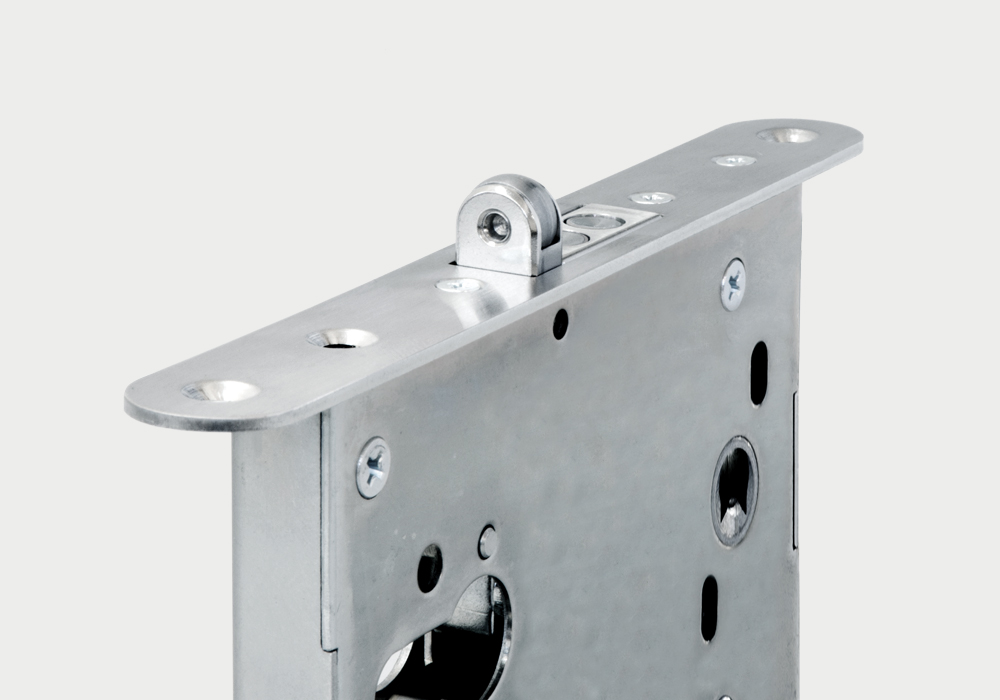

When the door is open the locking bolt moves inside the housing, the blocker roll pulls out automatically. When the door is closed the blocker roll starts sliding on the strike plate and moves inside the lock housing that causes the locking bolt to pull out and the lock to close automatically.

Bolt throw is 15mm long.

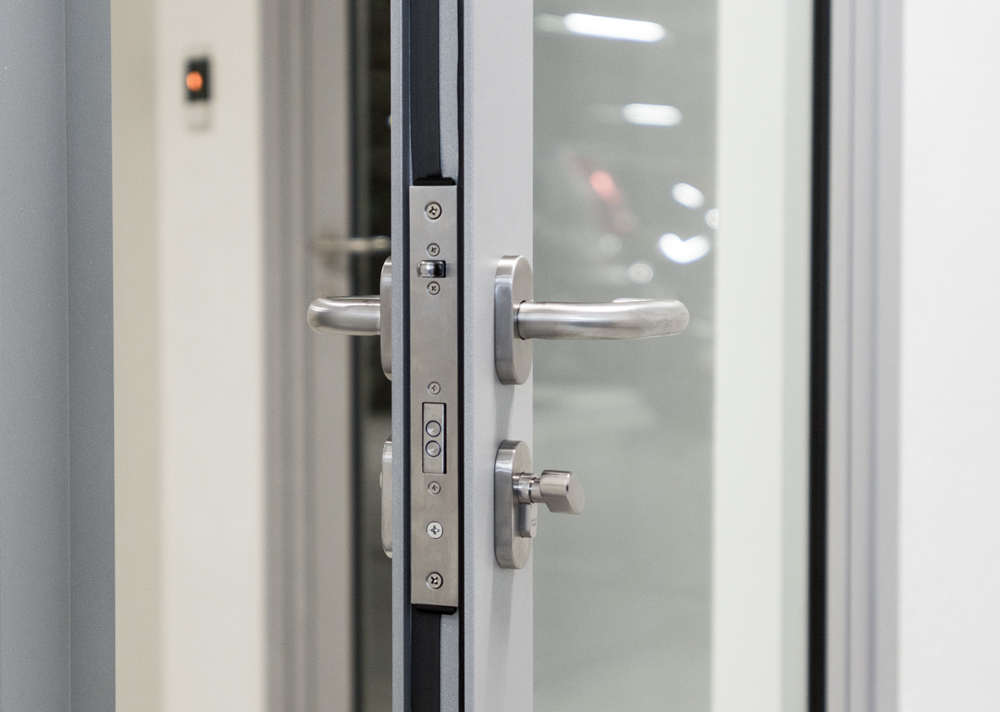

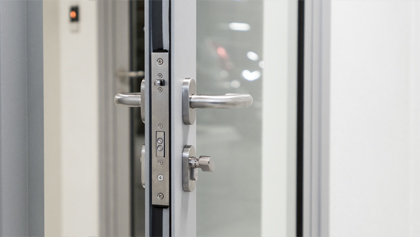

Electromechanical mortise lock for profile doors energized with a bolt throw

The locks can be installed in standard and profile doors. For thin metallic profile doors the special LBP locks are designed.

The locks are universal and can be installed both to the right-hand and to the left-hand doors without changing bolt position.

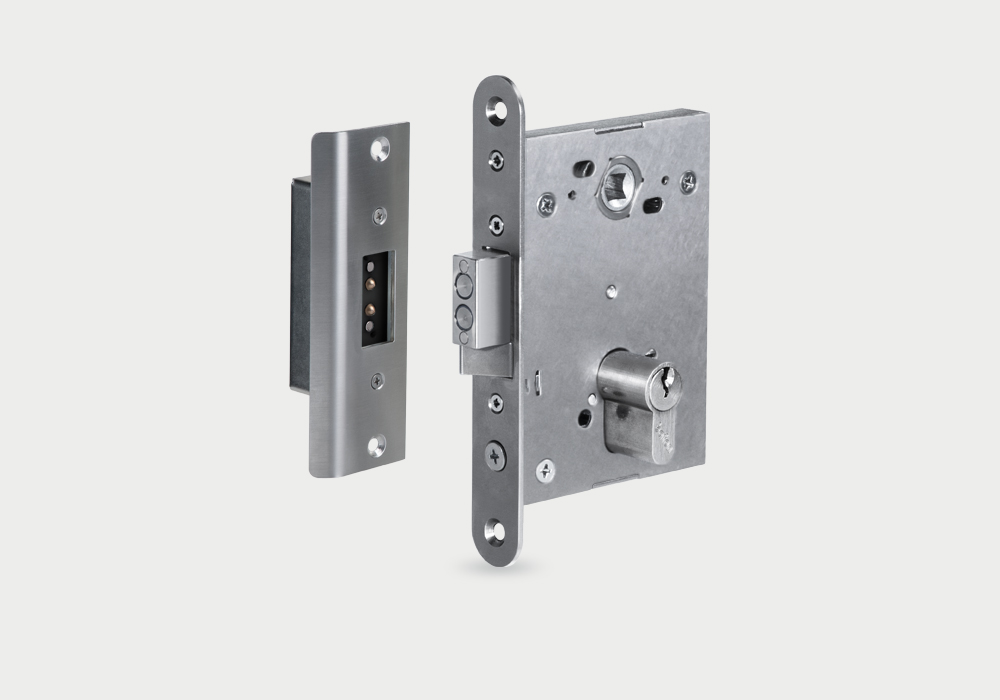

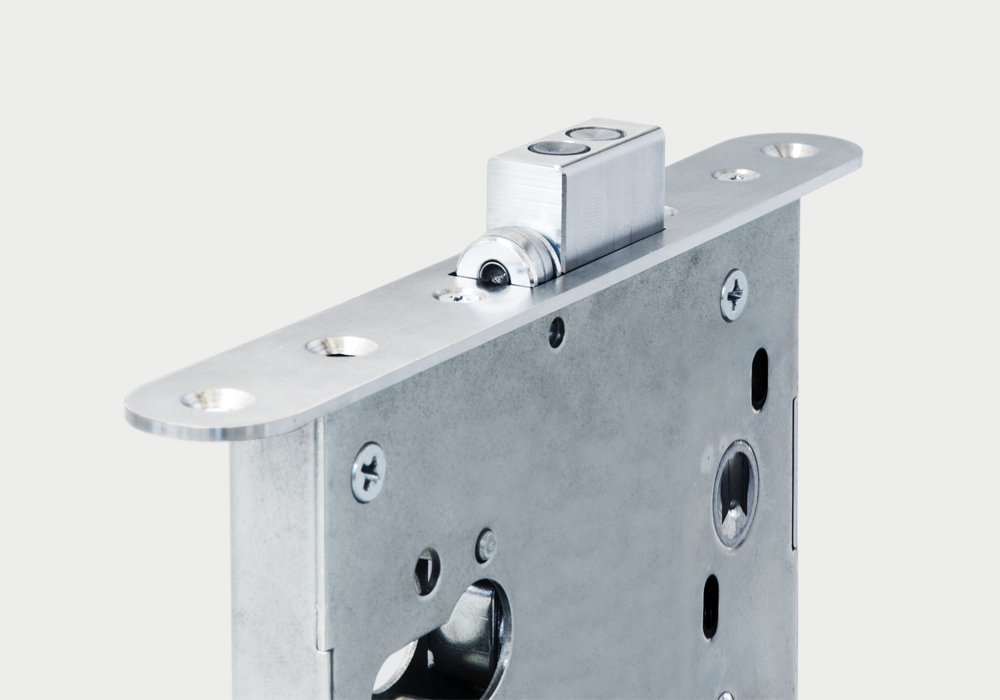

Flat locking bolt (15 cm) Blocker roll Contact groups in locking bolt and under strike plate

PERCo-LC series locks have two operation modes: day-time and night-time.

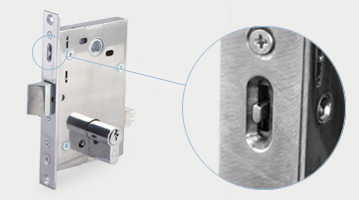

Mortise lock in day mode (11 mm) Mortise lock set in night mode (19 mm) Electronic door lock mode switch

In day-time locking mode the bolt throw is 11 mm, and it is 18,5 mm in night-time locking mode, the additional bolt throw is made without a skew avoiding the possibility to push out the door.

LC lock can be installed to the right-hand and to the left-hand doors. Necessary lock location may be performed easily by relocating of the bolt during the lock installation.

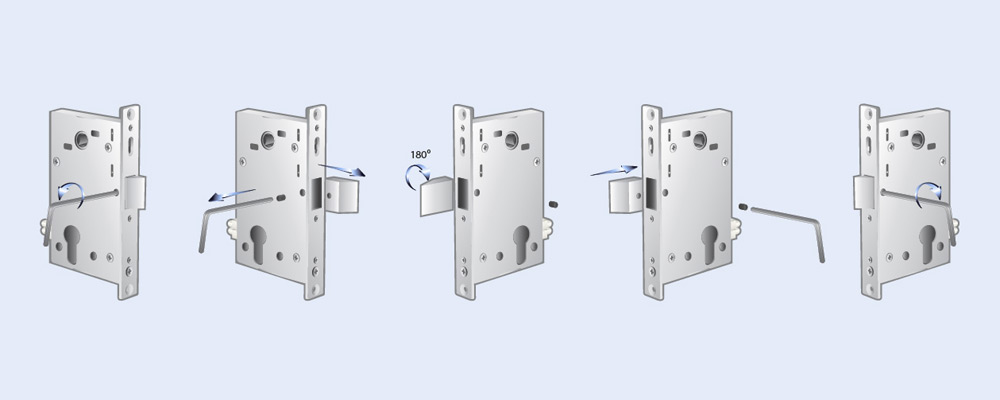

Mortise lock latch bolt orienting options
  • Locks are working in accordance with ACS algorithms. Locks are operated by energizing/de-energizing. The lock will automatically return to closed position after the turn off of the signal. Thus the door will remain closed during false activations and passage refusal. Locks work properly as a part of ACS during the "Protection" mode switched on by double use of the card.
    Access control system with mortise electric lock operation example
    System
    software
    Controller
    Electromechanical
    Locks
    Proximity
    card
    reader

    Example of ACS operation
  • Locks are convenient in daily use. The door closes easily due to skew of the bolt and a special strike plate, without hitting of the door-post and necessity in additional efforts.
  • Locks have an aesthetic design after the installation thanks to mortise construction and elegant design of forend and strike plate. Locks are compatible with standard levers, handles, lock cylinders, escutcheon plates and locking cylinders, allowing choosing its color and shape in accordance with existing design. Power connection can be performed by using hidden cable or contact (for fail-safe) adapters, allowing to make it invisible.
  • Locks are universal, because they may be installed on both right-handed and left-handed doors. Necessary lock location may be performed easily by relocating the bolt during the lock installation.
  • Locks can easily replace mechanical locks thanks to their standard sizes. The 72 mm and 85 mm distances between axes of handles and locking cylinders meet the most widespread standards, that allows to replace mechanical locks with electromechanical locks without any reconstruction of the door.
