IR-10 Long Range Card Reader

IR-10 Long Range Card Reader for vehicle entry checkpoints

power consumption

power consumption

temperature range

temperature range

protection rating

protection rating

standard interface

standard interface

standard interface

standard interface

card format

card format

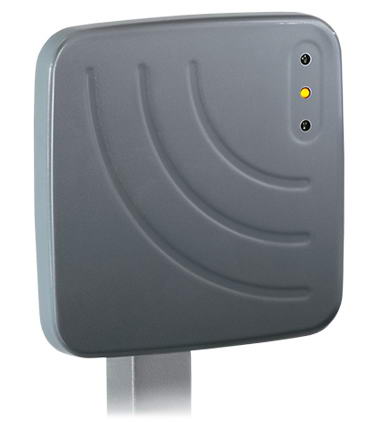

IR-10 long range card reader for outdoor use is designed for reading and interpretation of proximity card identifier and for transferring of identifier to ACS controller. The reader operates with EM-Marin and HID proximity cards (HID ProxCard II, ISO prox II; EM-Marin IL-05ELR, ЕМ4100).

Card reading distance – max 100 cm.

IR-10 reader operates through RS-485 or via Wiegand interface.

IR-10 long range card reader operates as a part of the automotive check-point, which is designed to control the passage of private and company vehicles. It operates together with the barrier controller.

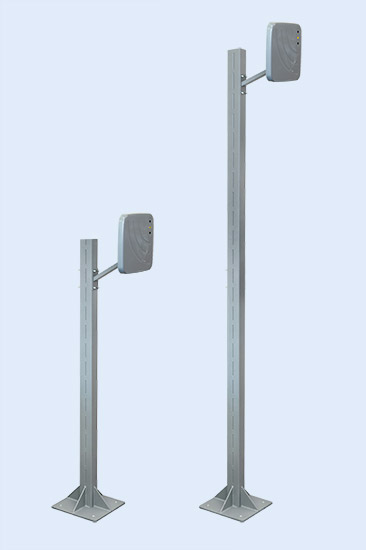

The reader is installed on a mounting arm, which is included in the standard delivery set. The additional equipment includes BH-03 post. The mounting arm and the post are rated at intensive wind force and have anti-corrosive coating.

The post allows mounting readers on different levels to provide comfortable passage for both passenger cars and for heavy trucks.

Up to 8 IR-10 long range card readers can be connected to CT/L04 controller, which operates one barrier. They can be installed on different levels (up to 4 paralleled readers for the entrance and up to 4 paralleled readers for the exit).

Reader operating temperature allows using it outdoors.

Code reading distance:

  • HID ProxCard II - max 60 cm
  • EM-Marin IL-05ELR - max 100 cm
  • EM-Marin ЕМ4100 - max 70 cm
Bracket
Bracket
Power consumption
12 V DC
Dimensions (length×width×height)
30×300×300 mm
Operating temperature range
from -40 °C to +40 °C
IP Code
IP54
Standard interface
Wiegand
Standard interface
RS-485
Card format
EMM HID

The warranty period is 5 (five) years from the date of sale of the product.
