IR19 multi-format reader (EMM/HID/MIFARE)

operating voltage

operating voltage

temperature range

temperature range

protection rating

protection rating

standard interface

standard interface

standard interface

standard interface

card format

card format

card format

card format

bank card

bank card

identification by smartphone

identification by smartphone

video
video

The IR19 multi-format reader is designed for reading and decoding the code stored in the identifier and transferring it to the controller of the executive devices. The reader is used for access control and operates in conjunction with a universal turnstile/lock controller.

The IR19 multi-format reader supports both RS-485 and Wiegand interface connections.

The reader supports operation with cards and transponders of EMM, HID, and MIFARE formats, including those with copy protection. The IR19 reader supports the following types of EMM and HID proximity cards: HID ProxCard II, ISOProx II; IL-05ELR EM-Marin IL, ЕМ4100.

The IR19 reader operates with the following types of MIFARE cards: Ultralight (48 bytes), Ultralight EV1 (48 bytes, 128 bytes), Ultralight C (144 bytes), ID (64 bytes), Classic 1K, Classic 4K, Plus (X, S, SE), DESFire Ev1.

In addition to access cards, the reader allows using NFC compatible smartphones and bank cards with PayPass contactless payment technology as identifiers.

  • When operating with EMM and HID cards, IR19 reads a unique UID identifier, which is not copy-protected. Reading of HID or EMM identifiers can be deactivated with a master card programmed in the PERCo system software.
  • Both UID reading mode and copy protection mode can be used, when operating with MIFARE cards. While operating in the copy protection mode, IR19 reads the code from the ID-protected card memory area. To read the data from internal memory, the IR19 reader is programmed with a master card.

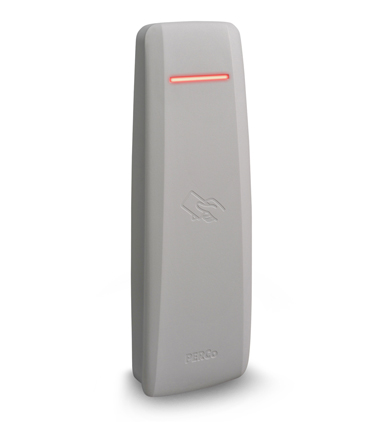

Design options:

Black
Light grey

Reading distance for UID is from 3,5 to 7cm, and for protected data from internal card memory – from 2 to 6cm.

Proximity card copy protection can be arranged in PERCo systems. The MR08 and IR18 control readers allow you to write the code to the dedicated memory area.

Operating voltage
12 V DC
Consumption current
150 mA
Operating temperature range
from -30 °C to +45 °C
IP Code
IP67
Standard interface
RS-485, Wiegand (W-26, W-34, W-42, W-58)
Dimensions (length×width×height)
20×50×150 mm
Reading range
2-7 cm
Identifier types
HID, EMM, MIFARE, PayPass, NFC compatible smartphones

The warranty period is 5 (five) years from the date of sale of the product.
