IRP-01 Reader Post

IRP-01 Reader Post with LCD display

power consumption

power consumption

temperature range

temperature range

protection rating

protection rating

standard interface

standard interface

standard interface

standard interface

IRP-01 reader post is an elegant solution designed to read proximity cards and to display the information if the access is granted or not.
The reader post for indoor use is an up-market model that offers an elegant solution for entrance points of banks, administrative buildings, business centres and other sites with the highest requirements for design and comfort. The reader operates with EM-Marin and HID proximity cards (HID ProxCard II, ISO prox II; EM-Marin IL-05ELR, ЕМ4100).

The reader post operates through two types of interfaces - RS-485 and Wiegand. The output format must be selected and set at the time of installation.

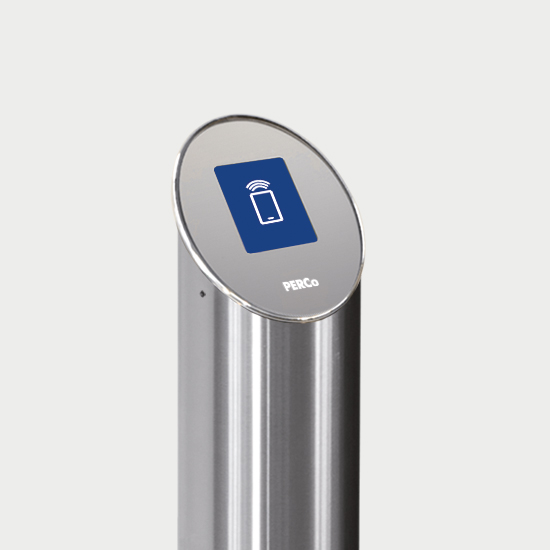

The housing is made in the form of stainless steel post with radio-transparent top cover made of glass.

Under the top cover there are a reader control board and an LCD display with animated indication of operational modes.

The card reading is confirmed by an audible signal.

Card reading distance:

  • EM-Marin cards – not less than 7 cm
  • HID – not less than 6 cm
Screen IRP-01
Screen IRP-01

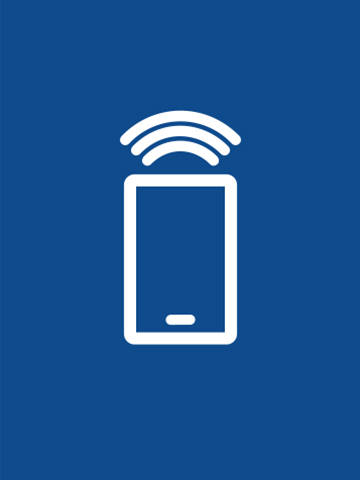

Control
Control

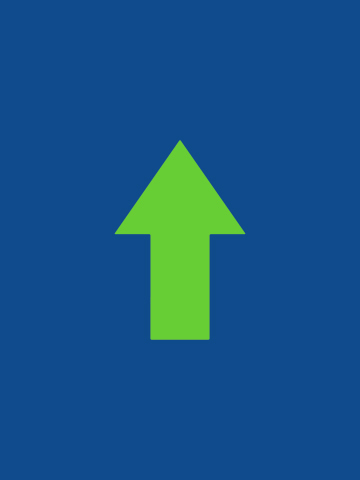

Open
Open

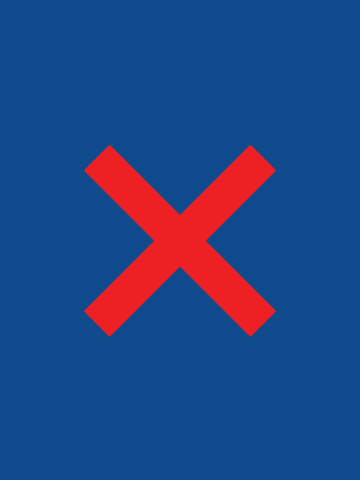

Closed
Closed

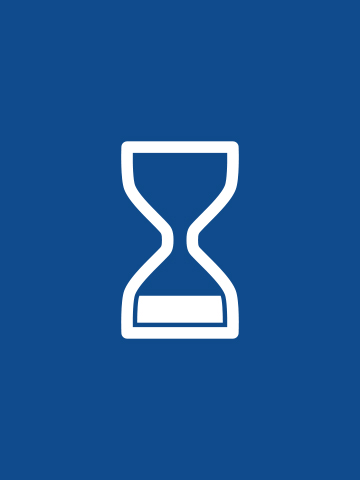

Verification process
Verification process
Power consumption
12 V DC
Operating temperature range
from +1 °C to +40 °C
IP Code
IP41
Standard interface
Wiegand
Standard interface
RS-485

The warranty period is 5 (five) years from the date of sale of the product.

Иконка
IRP-01 Certificate & Operation Manual
(2.11 MB)  — 30.10.2015
Иконка
IRP01 3D-models (AutoCAD) (dwg)
(772 kB)  — 01.10.2014
Иконка
IRP01 3D-models (AutoCAD) (dwf)
(59 kB)  — 01.10.2014
Иконка
IRP01 3D-models (ArchiCAD)
(148 kB)  — 20.10.2014
