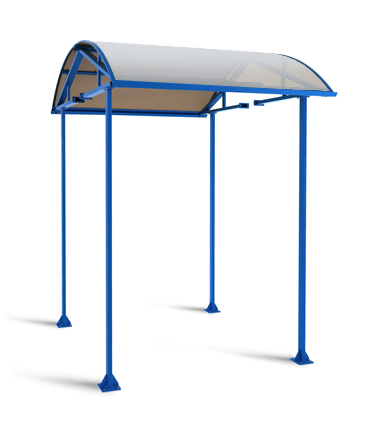

RTC-16 Canopy for RTD-16 Full height rotor turnstile for indoor and outdoor application

temperature range

RTC-16 Canopy is operated in conjunction with RTD-15 Full height rotor turnstile and is designed to protect the turnstile against precipitation and climbing over the turnstile.

Description

Several RTD-16 turnstiles with canopies can be mounted in one row. Up to six turnstiles with RTC-16 canopies can be installed in the same row without gaps with the upper transit cabling.

Characteristics

Dimensions (length×width×height)

2413х1660х2554 mm

Operating temperature range

from -40 °C to +55 °C

Canopy housing – powder-coated galvanized steel.

Blue (RAL 5010)

The warranty period is 5 (five) years from the date of sale of the product.
