TTD-12A Motorized Box Tripod Turnstile multi-purpose for outdoor application with automatic anti-panic function

operating voltage

operating voltage

passage directions

passage directions

persons/min

persons/min

temperature range

temperature range

protection rating

protection rating

protection rating for card capture reader

protection rating for card capture reader

"anti-panic" barrier arms

"anti-panic" barrier arms

motor drive

motor drive

videoplayerвидео

video review

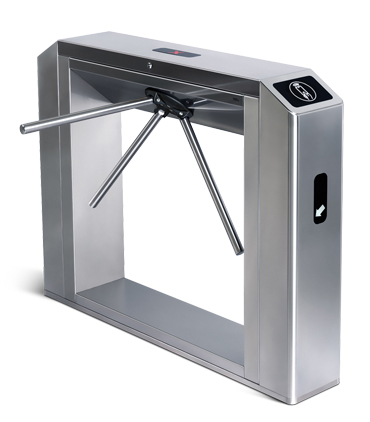

TTD-12A Motorized box tripod turnstile made of stainless steel has a modular design that allows integrating different types of external equipment such as barcode scanners, biometric readers, card readers, card capture readers, etc.
  • Built-in motor drive
  • Modular design
  • Integration with additional equipment, both built-in and externally mounted
  • Automatic “anti-panic” function
  • Outdoor application (except modifications with the card capture reader)
  • Stainless steel housing
Built-in barcode scanner
Built-in barcode scanner

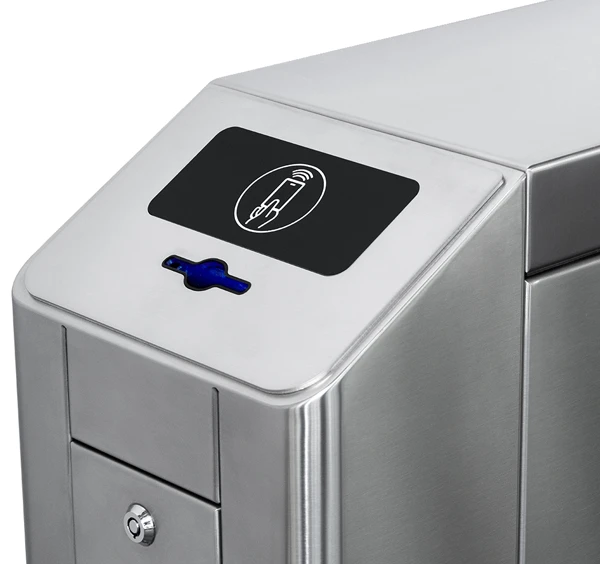

Built-in proximity card reader
Built-in proximity card reader
Built-in card capture reader
Built-in card capture reader
Built-in reader and coin acceptor
Built-in reader and coin acceptor
Built-in reader and a pole for external equipment installation
Built-in reader and a pole for external equipment installation

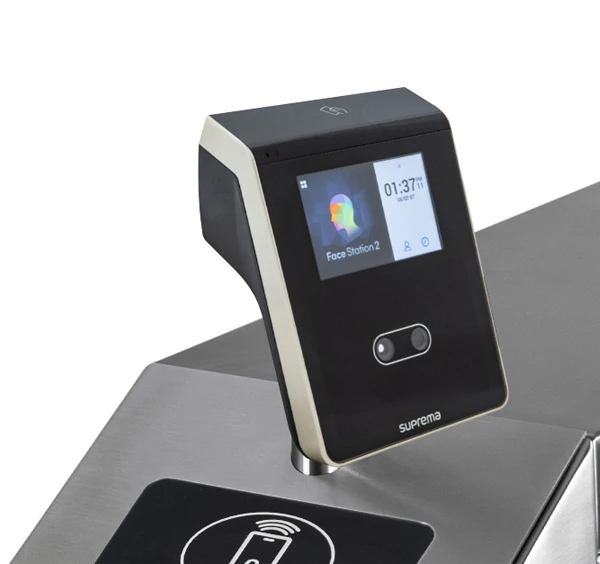

Side cover for biometric reader installation
Side cover for biometric reader installation

Delivery set:

  • Turnstile with built-in electronics
  • Flywheel with automatic “anti-panic” barrier arms
  • RC-panel

There are different types of side modules and side covers for additional equipment installation.

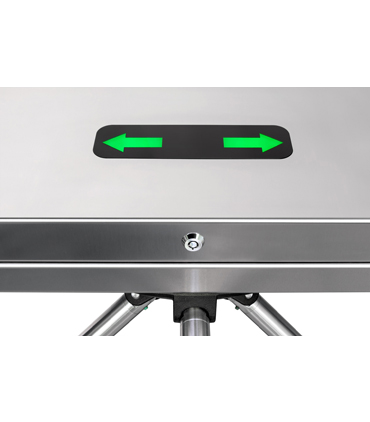

It is possible to place ACS controllers and readers of PERCo and other manufacturers inside the turnstile. The card reader operating zone is highlighted with a pictogram. There is also a pictographic display on the turnstile top cover indicating turnstile operation modes.

The turnstile has a convenient passage width of 560 mm.

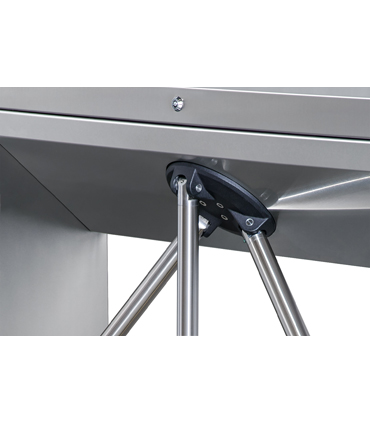

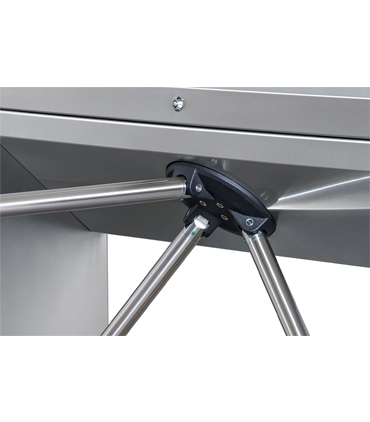

The automatic “anti-panic” function is an up-to-date solution that allows organizing a fast evacuation in case of emergencies. At a signal from the access control system or in case of power failure, the barrier arm automatically falls ensuring free passage.

After the Fire Alarm signal is removed or the power supply is restored, the barrier arm is set to the initial (horizontal) position manually.

TTD-12А turnstile is made of stainless steel, which provides an elegant design and corrosion resistance when used outdoors.

The control board is placed into the turnstile housing and provides a full set of turnstile control modes. The built-in motor drive ensures smooth rotation of the barrier arms. The board provides an emergency passage opening on the Fire Alarm signal (Fire Alarm input) and has inputs for connecting an intrusion detector with a siren and outputs for connecting remote indicators.

To ensure a fast and convenient passage, it is recommended to install one turnstile for every 500 people working one shift or based on the 30 people/minute peak load.

Turnstiles can also be completed with railings, produced in the same design.

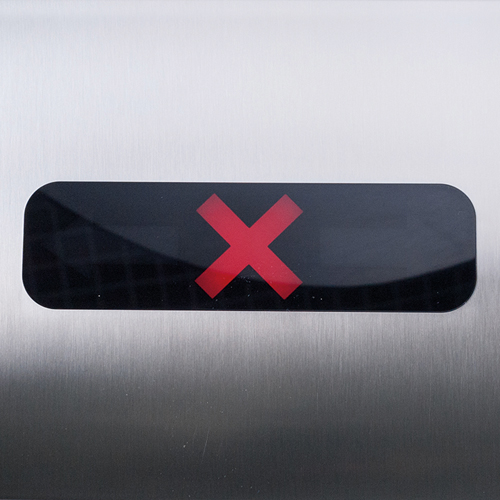

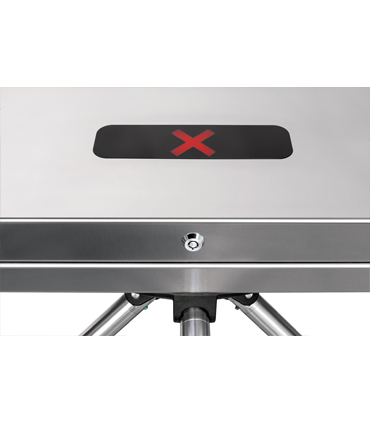

Turnstile state indication
Turnstile state indication

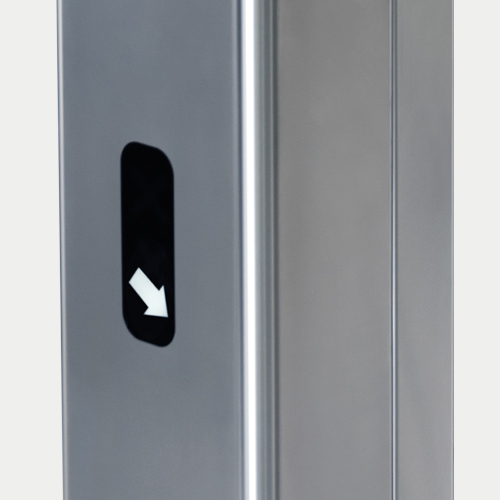

Passage direction indication
Passage direction indication
"Anti-panic" barrier arms
"Anti-panic" barrier arms

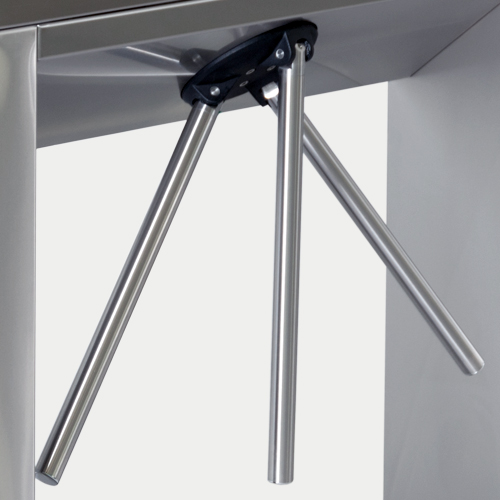

Automatic "anti-panic" function
Automatic "anti-panic" function
Operating voltage
24 V DC
Power consumption
130 W
Consumption current
5.5 A
Number of passage directions
2
Throughput rate (in the single passage mode)
30 persons/min
Throughput rate (in the free passage mode)
60 persons/min
Dimensions (length×width×height)
1361×750×1024 mm
Passageway width
560 mm
Operating temperature range
from -40 °C to +55 °C
"Anti-panic" barrier arms
automatic
Mean lifetime
8 years
Mean time to failure
3 000 000 passages
IP Code
IP55 (IP41 for version with card capture reader)
Required operating range for installed readers
min 50 mm
Maximum dimensions of installed readers, L×W×H
not more than 175×120×50 mm

Housing, barrier arms – stainless steel.

stainless steel
stainless steel

The warranty period is 5 (five) years from the date of sale of the product.
