TTR-04.1 Tripod turnstile for indoor application

operating voltage

operating voltage

passage directions

passage directions

persons/min

persons/min

temperature range

temperature range

protection rating

protection rating

mechanical unlocking

mechanical unlocking

3D-presentation
3D-presentation
video
video

TTR-04.1 compact tripod turnstile provides access control at checkpoints of commercial, public, and industrial facilities. TTR-04.1 turnstile is designed for indoor application; for outdoor application TTR-04CW is provided.

  • Compact design
  • Mechanical release key
  • Built-in LED indication of operation modes
  • Mechanical "anti-panic" barrier arms (optional)

Delivery set:

  • Turnstile with built-in electronics
  • RС-panel

Color options:

  • light beige color with pearl mica effect (R)
  • dark grey color with pearl mica effect (G)
  • "starlit night" glitter black color (E)

The TTR-04.1 compact design allows organizing access at checkpoints of any configurations.

The turnstile can be operated from an ACS or as a stand-alone unit from RC-panel or WRC (purchased separately).

The turnstile operates from an ACS and supports two control modes: pulse and potential. This control mode choice option ensures proper operation of the turnstile under access control systems from different manufacturers.

A control unit board is effectively placed inside the turnstile housing. The resetting mechanism moves the barrier arms to the initial position after each passage. A built-in damper ensures smooth and quiet operation of the turnstile.

A special Fire Alarm control input allows connecting a device that sends a command for emergency unblocking (for instance, a fire alarm device).

Relay outputs are provided for connecting additional remote indicators of the prohibition /permission of passages.

It is possible to connect the intrusion detector and siren to the turnstile. Optionally, the turnstile can be equipped with mechanical "anti-panic" barrier arms, which allow quick clearing of the passage without special keys or tools.

If necessary, the built-in mechanical release key allows unblocking the turnstile and ensures free rotation of barrier arms.

To ensure fast and convenient passage of people, it is recommended to install one turnstile for every 500 people working in one shift or based on the peak load of 30 people/minute.

Turnstiles can also be completed with railings, produced in the same design.

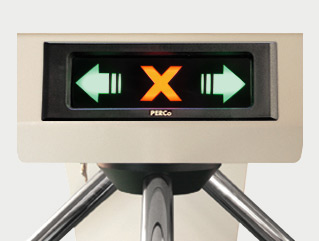

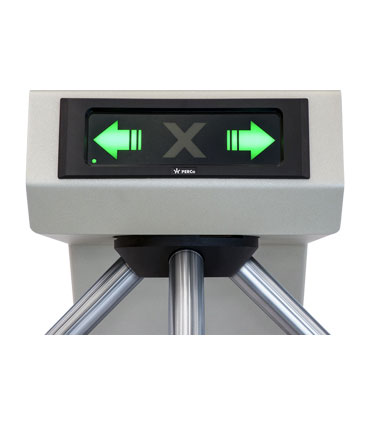

LED indication
LED indication

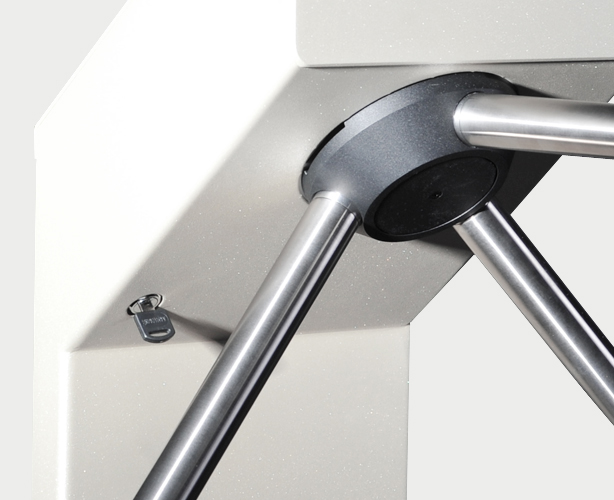

Mechanical release key
Mechanical release key
Mechanical "anti-panic" function
Mechanical "anti-panic" function

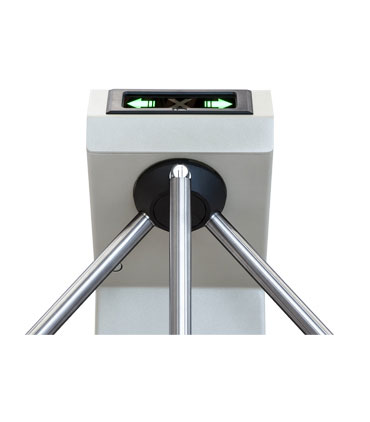

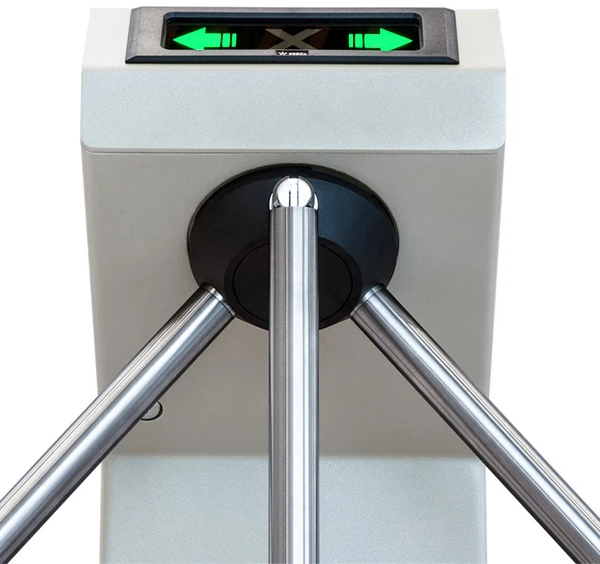

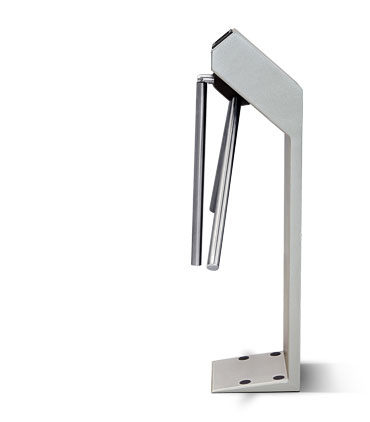

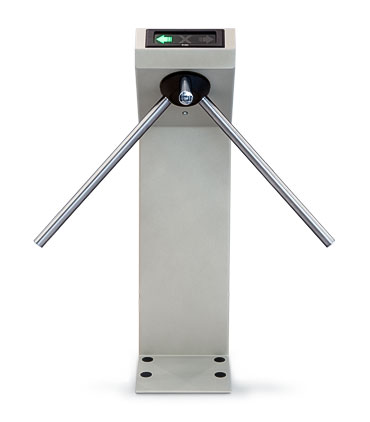

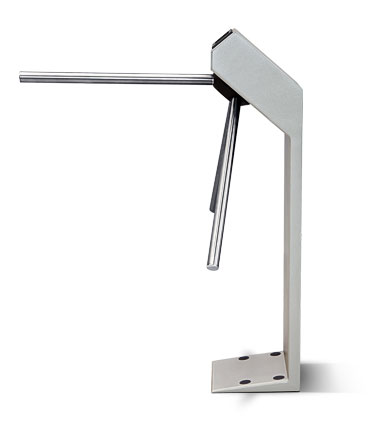

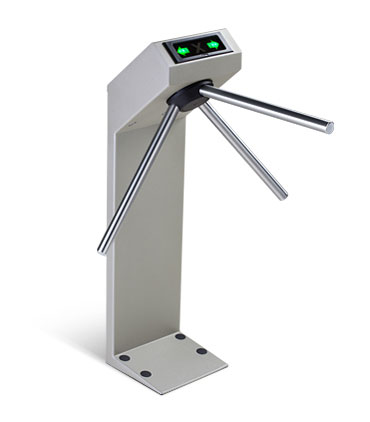

TTR-04.1 tripod turnstile, light beige color
TTR-04.1 tripod turnstile, light beige color

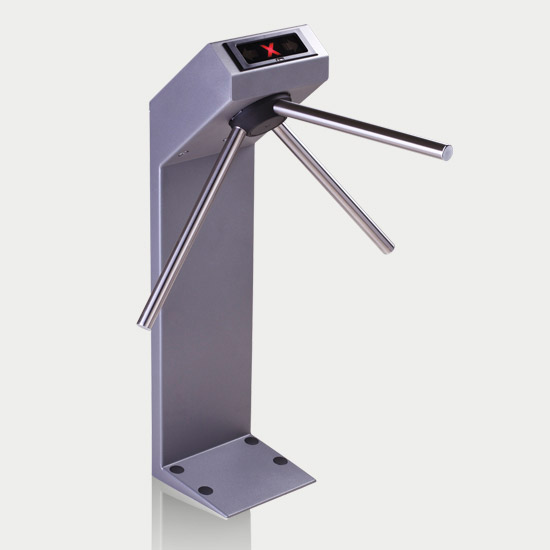

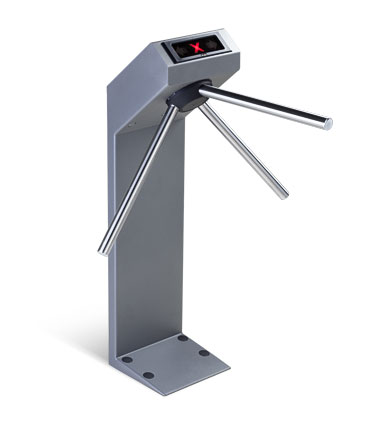

TTR-04.1 tripod turnstile, dark grey color
TTR-04.1 tripod turnstile, dark grey color

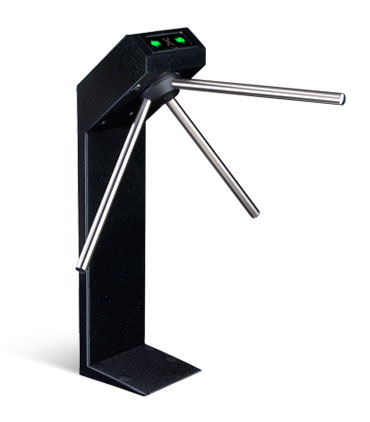

TTR-04.1 tripod turnstile, "starlit night" glitter black color
TTR-04.1 tripod turnstile, "starlit night" glitter black color
RC-panel
RC-panel
Operating voltage
12 V DC
Power consumption
8.5 W
Consumption current
0.7 A
Number of passage directions
2
Throughput rate (in the single passage mode)
30 persons/min
Throughput rate (in the free passage mode)
60 persons/min
Dimensions (length×width×height), without barrier arms
280×260×1050 mm
Dimensions (length×width×height), with barrier arms
855×810×1050 mm
Passageway width
600 mm
Operating temperature range
from +1 °C to +50 °C
IP Code
IP41
Mean lifetime
8 years
Mean time to failure
4 000 000 passages

Housing - powder-coated steel.

sandpaper powder coating with pearl mica effect; light beige color
sandpaper powder coating with pearl mica effect; light beige color
sandpaper powder coating with pearl mica effect; dark grey color
sandpaper powder coating with pearl mica effect; dark grey color

Powder coating to RAL colors is available on order. Time of manufacture and price quotation are specified individually.

The warranty period is 5 (five) years from the date of sale of the product.
