TTR-04CW Tripod turnstile for outdoor application

operating voltage

operating voltage

passage directions

passage directions

persons/min

persons/min

temperature range

temperature range

protection rating

protection rating

mechanical unlocking

mechanical unlocking

3D-presentation
3D-presentation
video
video

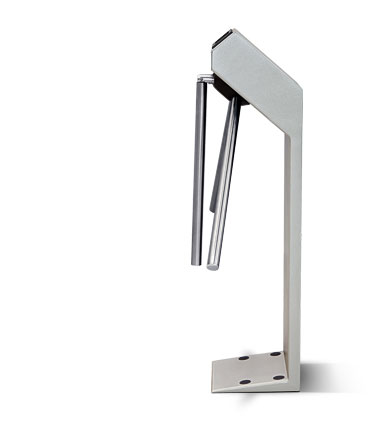

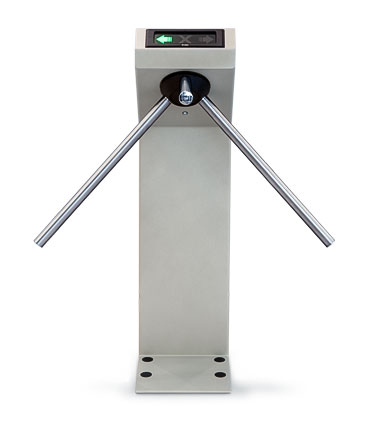

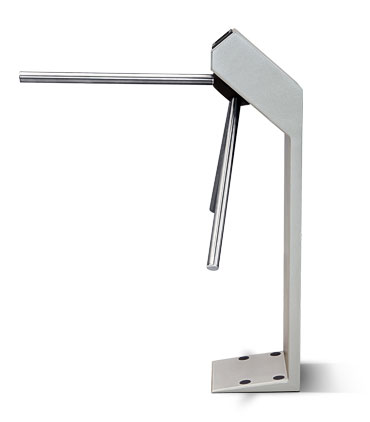

TTR-04CW tripod is designed for outdoor application (under shelter) or unheated areas. Due to the elegant design and high reliability, TTR-04CW compact tripod turnstile can be used at checkpoints of resorts, parks, sports and entertainment facilities, and construction sites.

  • Compact all-weather design
  • Mechanical release key

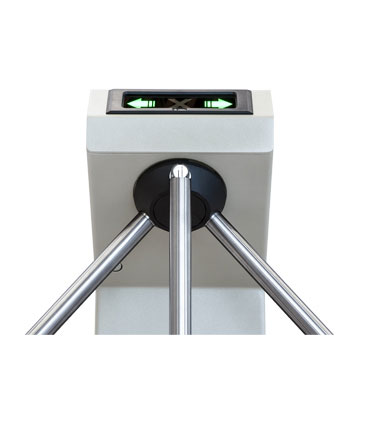

  • Built-in LED indication of operation modes

Delivery set:

  • Turnstile with built-in electronics and a thermocontrol system
  • RС-panel
  • Set of three standard barrier arms

The turnstile housing includes a built-in thermoregulation system that maintains the temperature inside the housing above 0 °C, that allows using the tripod turnstile at subzero temperatures. TTR-04CW turnstile can operate at ambient temperatures from - 40 °C to + 50 °C.

The TTR-04CW model has built-in electronics (CLB board) in the upper part of the turnstile housing and is powered by 12V DC.

To increase corrosion resistance, a 9-micron zinc layer is applied to the turnstile housing by electrochemical galvanizing, and then powder coating is performed.

The turnstile can be operated from an ACS or as a stand-alone unit from RC-panel or WRC (purchased separately).

The turnstile operation mode is set independently for each passage direction, i.e. setting the passage mode in one direction does not change the set passage mode for the other direction.

The turnstile housing has built-in optical sensors for the rotation of the barrier arms, which allow correct recording of the fact and direction of passage when the turnstile is operated under the control of the ACS.

A built-in damper ensures smooth and quiet operation of the turnstile.

LED indication
LED indication
Mechanical release key
Mechanical release key
RC-panel
RC-panel
Operating voltage
12 V DC
Operating voltage
24 V DC
Power consumption
8,5 W
Heating system power consumption
60 W
Consumption current
0.7 A
Heating system current consumption
2.5 A
Number of passage directions
2
Throughput rate (in the single passage mode)
30 persons/min
Throughput rate (in the free passage mode)
60 persons/min
Dimensions (length×width×height), without barrier arms
280×260×1050 mm
Dimensions (length×width×height), with barrier arms
855×810×1050 mm
Passageway width
600 mm
Operating temperature range
from -40 °C to +50 °C
IP Code
IP42
Mean lifetime
8 years
Mean time to failure
4 000 000 passages

Housing - powder-coated steel.

sandpaper powder coating with pearl mica effect; light beige color
sandpaper powder coating with pearl mica effect; light beige color

Barrier arms - stainless steel.

The warranty period is 5 (five) years from the date of sale of the product.
