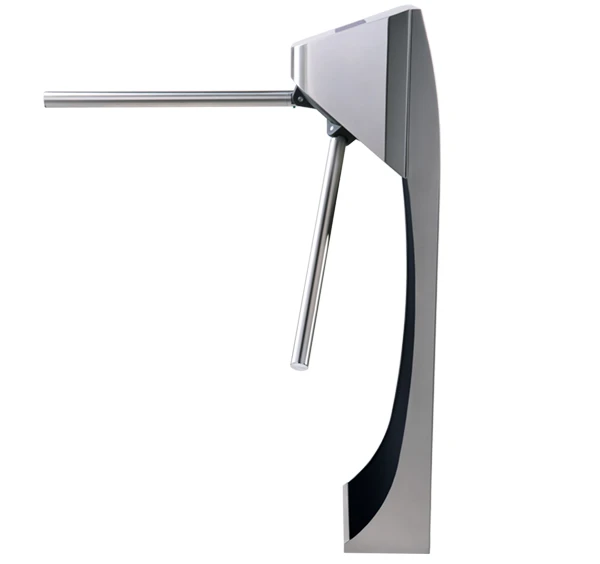

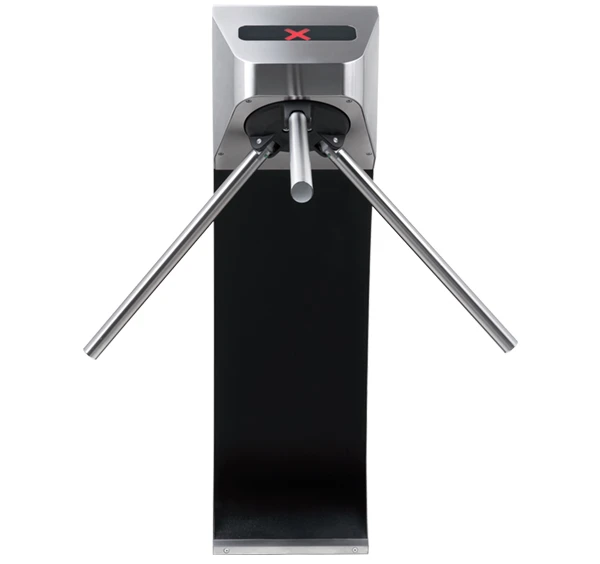

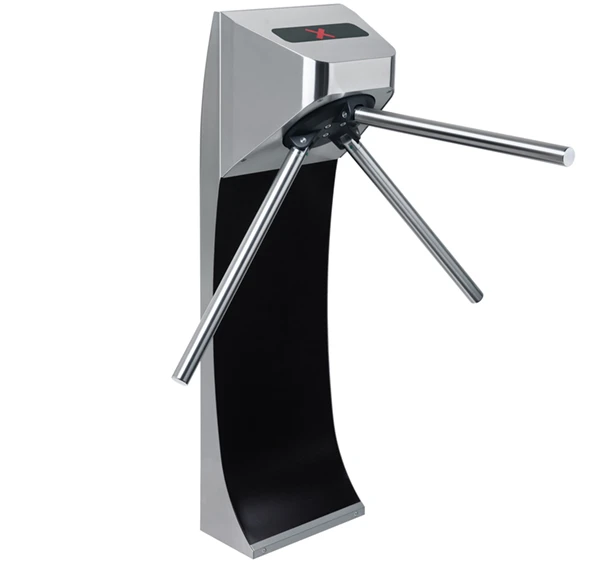

TTR-10AB Motorized tripod turnstile for outdoor application, with automatic anti-panic function

operating voltage

operating voltage

passage directions

passage directions

persons/min

persons/min

temperature range

temperature range

protection rating

protection rating

"anti-panic" barrier arms

"anti-panic" barrier arms

motor drive

motor drive

TTR-10AB Motorized tripod turnstile is designed for floor mounting and is used as a compact blocking device to control the flow of people at the entrances of industrial enterprises, banks, administrative offices, shops, railway stations, and airports.

  • Built-in motor drive ensures smooth turn of barrier arms
  • Compact design
  • Automatic "anti-panic" barrier arms
  • All-weather design

Delivery set:

  • turnstile with built-in electronics
  • flywheel with automatic "anti-panic" barrier arms
  • post for floor mounting
  • RC-panel

In addition to the option for floor mounting, it is also possible to fix TTR-10A on the wall or transport handrails.

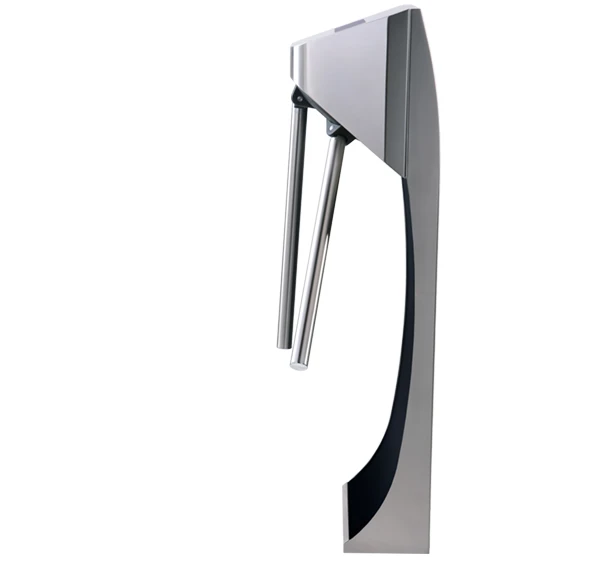

The automatic “anti-panic” function is an up-to-date solution that allows organizing a fast evacuation in case of emergencies. At a signal from the access control system or in case of power loss, the barrier arm automatically falls, ensuring free passage.

The turnstile can be operated from an access control system (ACS) or as a stand-alone unit from RC-panel or WRC (purchased separately).

A control unit board is effectively placed inside the turnstile housing. The resetting mechanism moves the barrier arms to the initial position after each passage. The smooth turn of the barrier arms is carried out by the built-in motor drive. A special Fire Alarm control input allows connecting a device that sends a command for the emergency unblock (for instance, a fire alarm device).

It is possible to connect the intrusion detector and siren to the turnstile.

To ensure a fast and convenient passage, it is recommended to install one turnstile for every 500 people working one shift or based on the 30 people/minute peak load.

Operating voltage
24 V DC
Power consumption
150 W
Consumption current
5.5 A
Number of passage directions
2
Throughput rate (in the single passage mode)
30 persons/min
Throughput rate (in the free passage mode)
60 persons/min
Dimensions (length×width×height)
800×760×1055 mm
Passageway width
500 mm
Operating temperature range
from -40 °C to +55 °C
IP Code
IP54
Mean lifetime
8 years
Mean time to failure
3 000 000 passages

Turnstile housing, barrier arms

stainless steel
stainless steel

The warranty period is 5 (five) years from the date of sale of the product.
