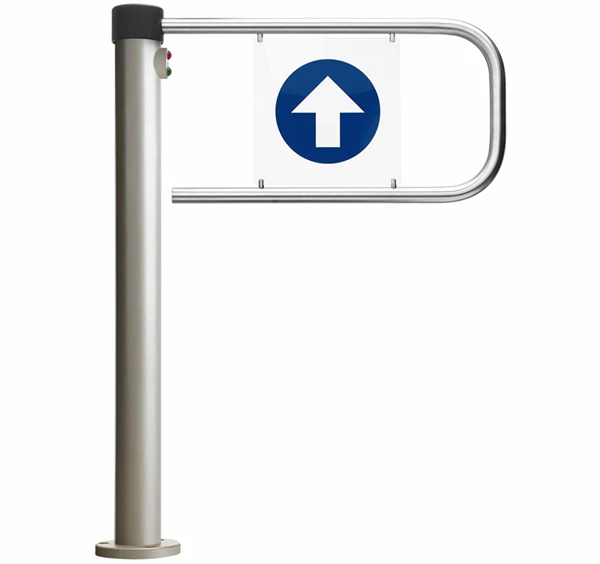

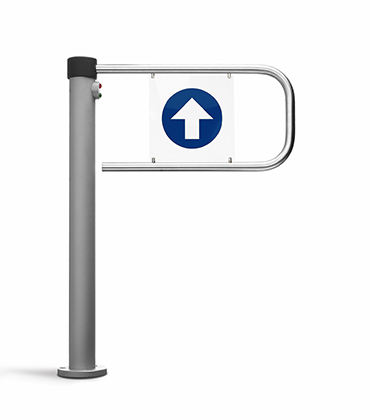

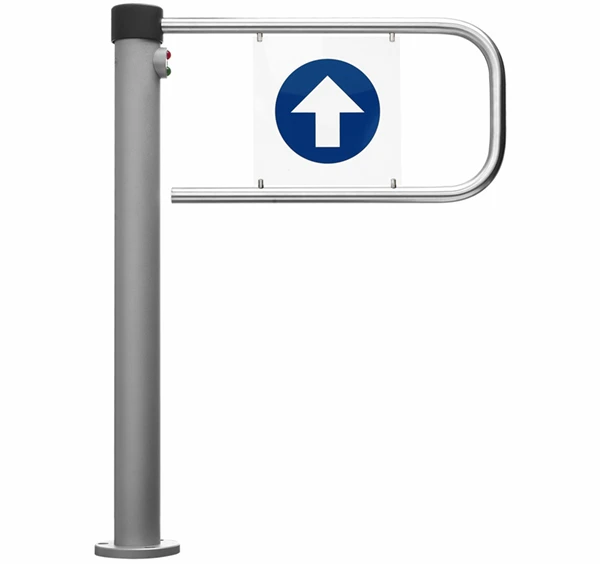

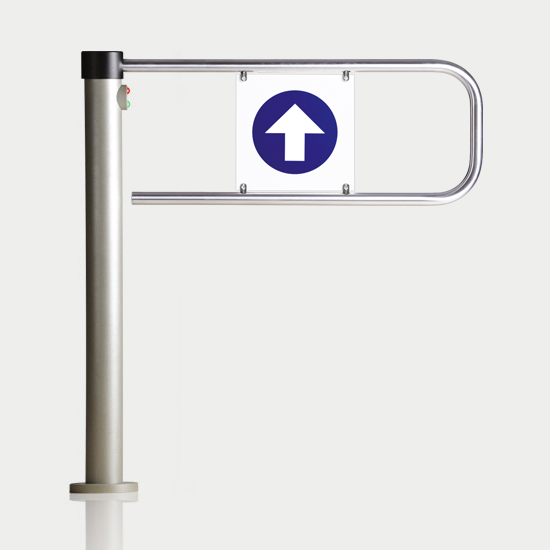

  • WHD-05 Electromechanical swing gate with ASG-650 swing panel
  • WHD-05 Electromechanical swing gate with ASG-650 swing panel
  • WHD-05 Electromechanical swing gate with ASG-650 swing panel
  • WHD-05 Electromechanical swing gate with ASG-650 swing panel
  • WHD-05 Electromechanical swing gate with ASG-650 swing panel
  • WHD-05 Electromechanical swing gate with ASG-650 swing panel
  • WHD-05 Electromechanical swing gate with ASG-650 swing panel

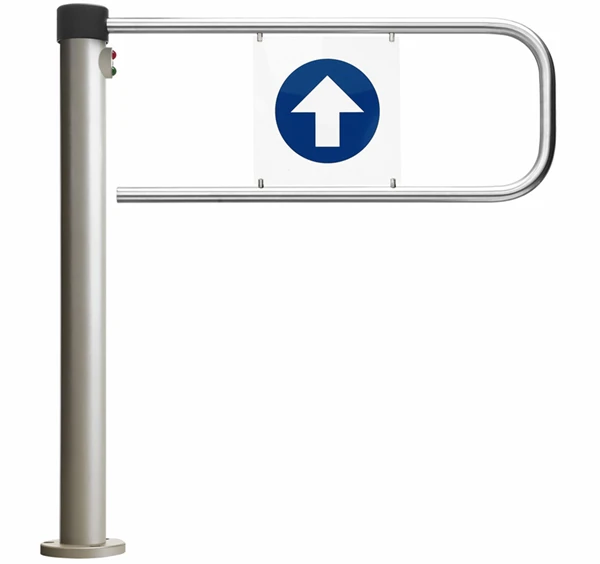

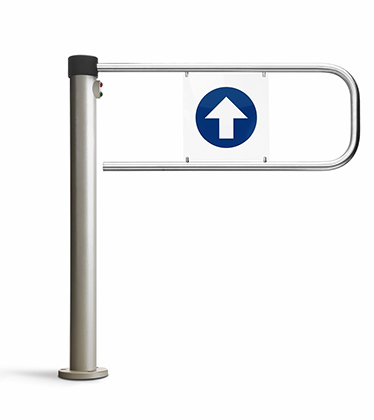

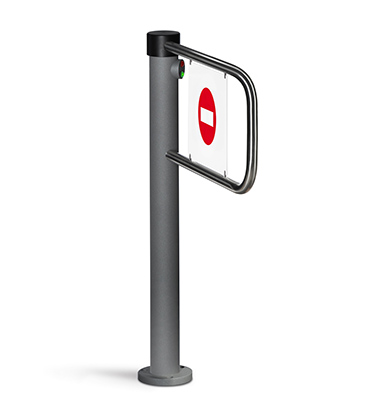

WHD-05 Electromechanical swing gate with ASG-650 swing panel for indoor application

operating voltage

operating voltage

passage directions

passage directions

persons/min

persons/min

temperature range

temperature range

protection rating

protection rating

3D-presentation
3D-presentation

WHD-05 electromechanical swing gates are designed to control the flow of people, permitting free passage in one direction and prohibiting passage in the other.

Delivery set:

  • swing gate post with built-in electronics
  • swing panel of 650 mm
  • RC-panel

WHD-05 swing gate can be supplied with two types of swing panels: 650 mm or 900 mm. To pass in the permitted direction, the swing panel is pushed by hand. Once the passage is complete, the swing panel automatically returns to its home position. The swing panel smooth rotation is ensured by a hydraulic damper.

The model features a built-in control unit with a power supply, which provides fail-safe operation of the swing gate.

The standard WHD-05 gate is a bi-directional device but it can be configured to a single direction mode with a mechanical rotation limiter included in the standard delivery set.

The swing gate is a normally-open device. In case of power loss, the swing panel can be opened in both directions (except for the direction blocked with the mechanical rotation limiter).

WHD-05 swing gates can operate as stand-alone units from RC-panel or WRC and are part of an access control system (ACS).

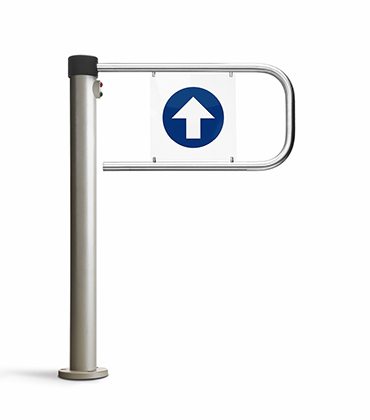

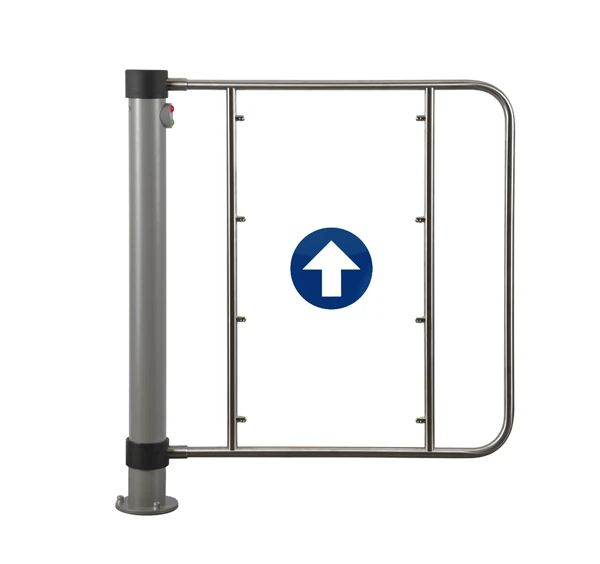

WHD-05R electromechanical swing gate
WHD-05R electromechanical swing gate

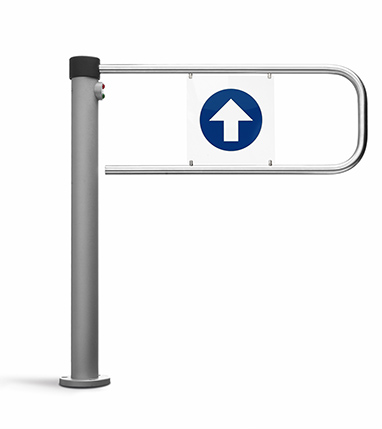

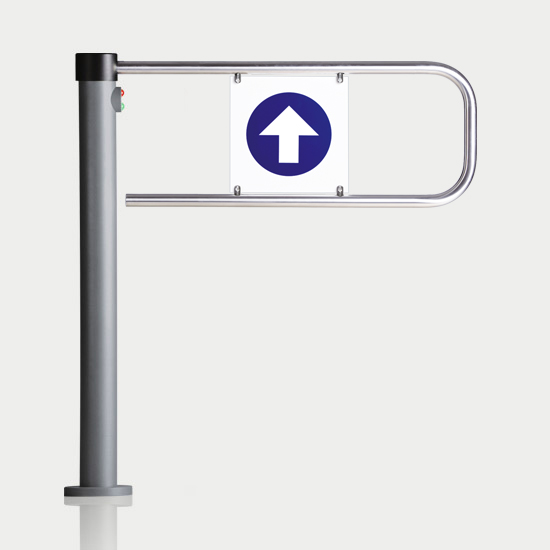

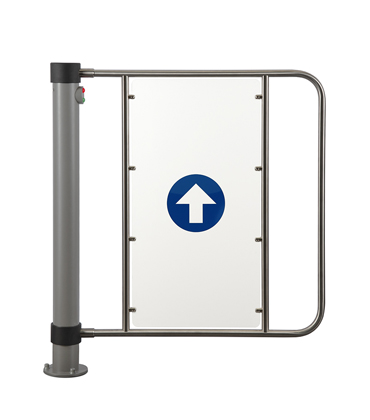

WHD-05G electromechanical swing gate
WHD-05G electromechanical swing gate

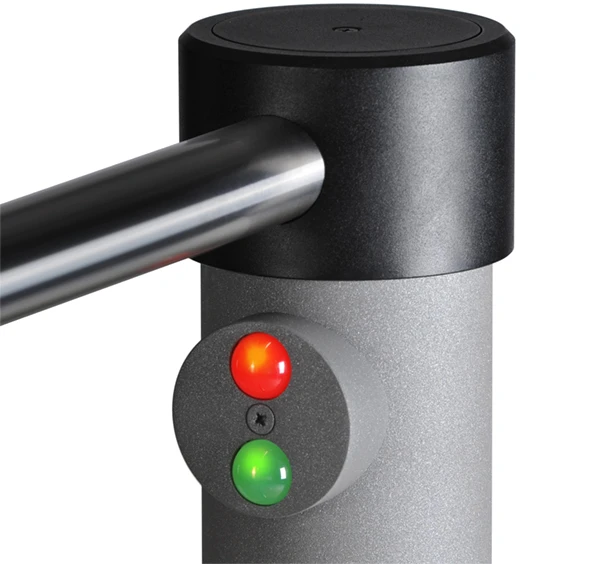

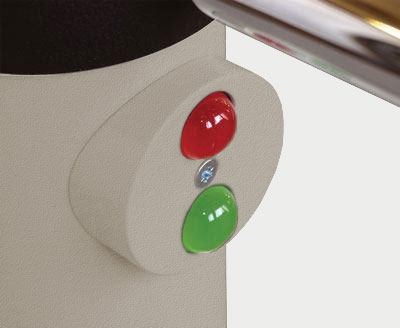

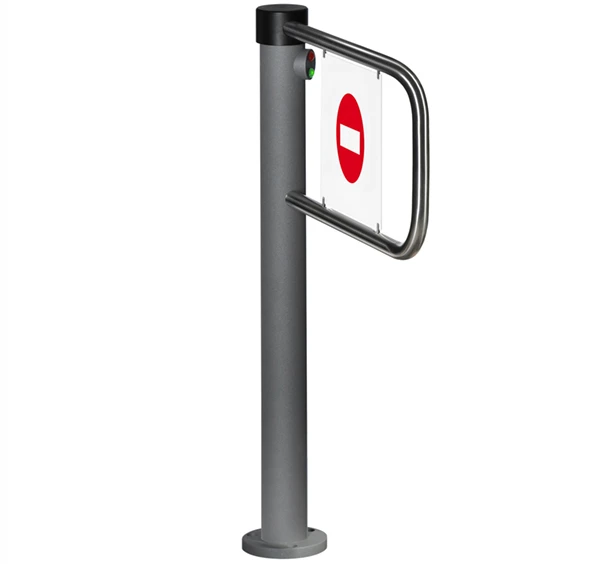

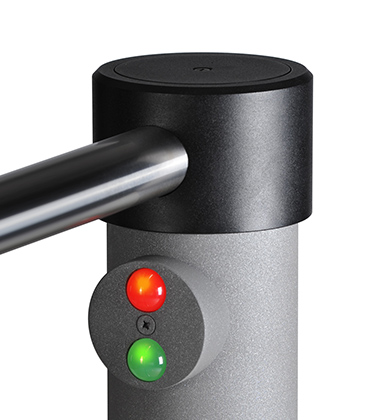

Swing gate LED indication
Swing gate LED indication

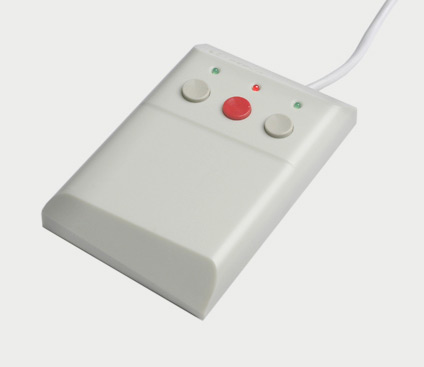

RC-panel
RC-panel
Operating voltage
12 V DC
Power consumption
14 W
Consumption current
1,2 A
Number of passage directions
2
Throughput rate (in the single passage mode)
22 persons/min
Dimensions (length×width×height)
160×780×1040 mm
Passageway width
700 mm
Operating temperature range
from +1 °C to +50 °C
IP Code
IP41

Gate post – powder coated steel.

sandpaper powder coating with pearl mica effect; light beige color
sandpaper powder coating with pearl mica effect; light beige color
sandpaper powder coating with pearl mica effect; dark grey color
sandpaper powder coating with pearl mica effect; dark grey color

Swing panel – brushed stainless steel, filler panel – plastic panel with pictograms.

The warranty period is 5 (five) years from the date of sale of the product.

Иконка
PERCo-WHD-05. Technical Specification
(939 kB)  — 29.11.2022
Иконка
WHD-05 Assembly & Operation Manual
(1.37 MB)  — 23.01.2023
Иконка
WHD-05 3D-models (AutoCAD) (dwg)
(810 kB)  — 02.02.2024
Иконка
WHD-05 3D-models (ArchiCAD)
(69 kB)  — 06.04.2017
Иконка
WHD-05 3D-models (STEP)
(207 kB)  — 30.12.2021
