BH-02 waist-high railing systems

operating voltage

operating voltage

temperature range

temperature range

3D-presentation
3D-presentation

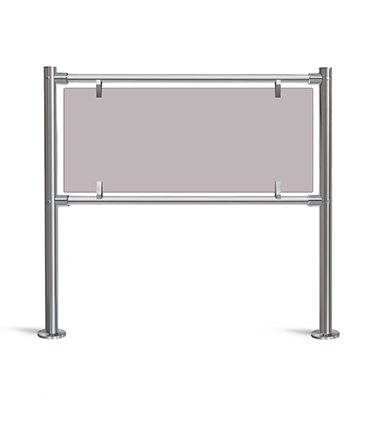

The BH-02 series waist-high railings styled in a complete system design allow to form passageways that meet desired architecture and security requirements.

Their elegant design presents a secure and stylish solution that can blend into entrances of offices, museums, exhibition centres, leisure facilities, administrative buildings, banks, sports and entertainment facilities, retail outlets, airports, railway and transport terminals, industrial facilities, etc.

The railings are made as a modular construction, which consists of vertical posts with welded base flanges and horizontal rails completed with coupling fittings and mount fasteners for any angle configurations.

The rails come as sections of brushed stainless steel tube with no additional fastenings at the ends.

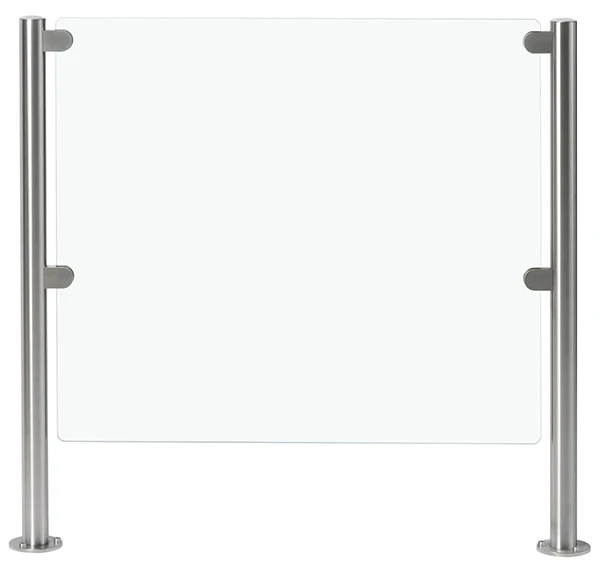

Tinted glass or polycarbonate sheets can be used as decorative filler panels.

The BH-02 railings match and easily integrate with various models of PERCo turnstiles and swing gates.

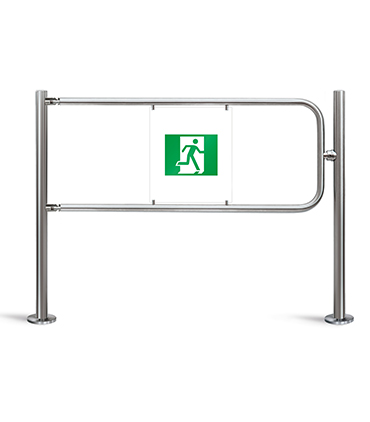

BH-02 waist-high automatic rotary section is designed to complement the passage way with an anti-panic solution for public safety or thanks to its width it is a perfect solution to arrange passage for disabled people.

Elegant design presents a secure and stylish solution that can blend into entrances of offices, museums, exhibition centres, leisure facilities, administrative buildings, banks, sports and entertainment facilities, retail outlets, airports, railway and transport terminals, industrial facilities, etc. At the same time the BH-02 automatic rotary section will ensure safe and quick escape of people in case of emergency as the BH-02 swing panel automatically opens in case of power failure or by an emergency signal leaving the passage of 1255mm/1305 mm free.

The BH-02 rotary section is supplied with safe voltage and automatically opens:

  • at a power loss
  • by signal from an ACS or emergency button
  • manually, if force applied to its swing panel exceeds 60 kg.

Additionally your passage way can be equipped with the BH-02 mechanical rotary section.

The BH-02 mechanical rotary section is specially designed to provide unobstructed and fast escape routes in emergency cases. Its design allows using this type of railings as a mechanical security gate that offers a passage width up to 1200 mm, making it suitable for wheelchair access and deliveries of large or bulky items.

At normal operation the BH-02 rotary section is used as a railing section to complete a passage area. When needed, the section can be opened in any direction without use of special tools or keys, by pulling the locking pin.

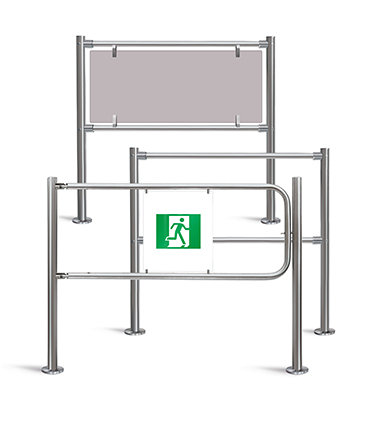

Anti-panic zone of BH-02 railings

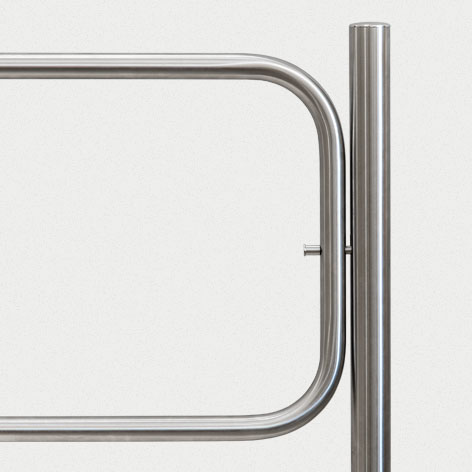

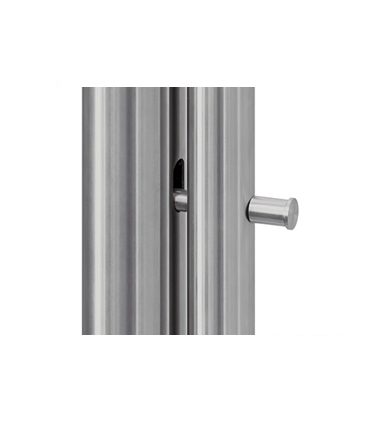

Locking pin
Rotary hinge
units
Standard railing fittings made of plastic
Standard railing fittings made of plastic

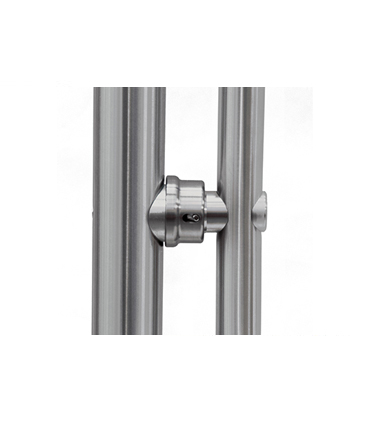

Railings rotary hinged unit made of black plastic
Railings rotary hinged unit made of black plastic

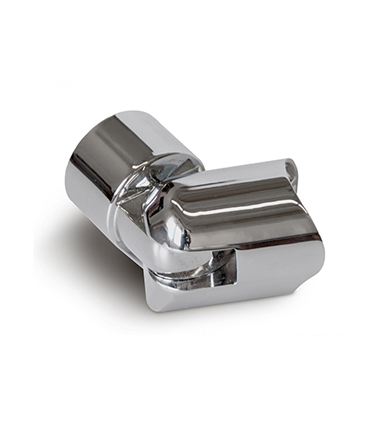

Railings adjustable coupling fittings
Railings adjustable coupling fittings

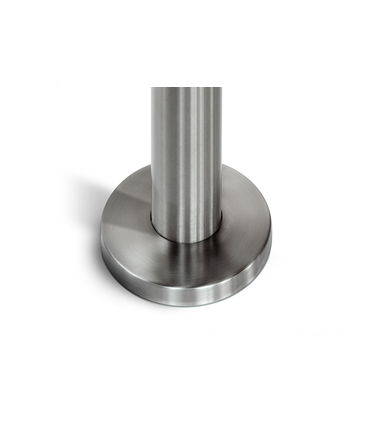

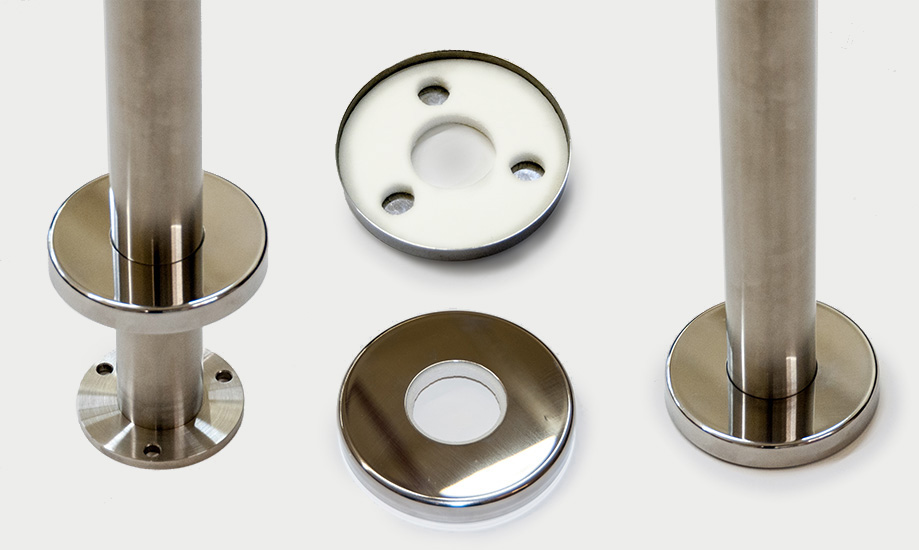

Decorative covers for posts
Decorative covers for posts

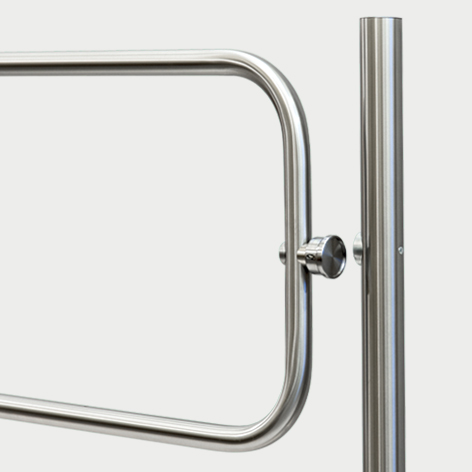

BH-02 railings electric magnet
BH-02 railings electric magnet

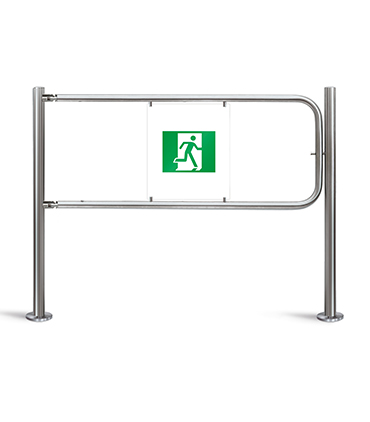

BH-02 rotary section - mechanical
BH-02 rotary section - mechanical
Operating voltage
12 V DC
Operating temperature range
from -10 °C to +50 °C
Diameter of the post
50 mm
Diameter of the barrier arms
32 mm

End posts, railing – stainless pipe.

stainless steel
stainless steel

Filler panels – polycarbonate.

The warranty period is 5 (five) years from the date of sale of the product.

Иконка
BH-02 Assembly & Operation Manual
(1.55 MB)  — 25.09.2018
Иконка
BH-02 3D-models (AutoCAD) (dwg)
(8.13 MB)  — 28.04.2014
Иконка
BH-02 3D-models (AutoCAD) (dwf)
(946 kB)  — 28.04.2014
Иконка
BH-02 3D-models (ArchiCAD)
(3.00 MB)  — 28.05.2013
Иконка
BH-02 EC Declaration of Conformity
(1005 kB)  — 19.03.2018
