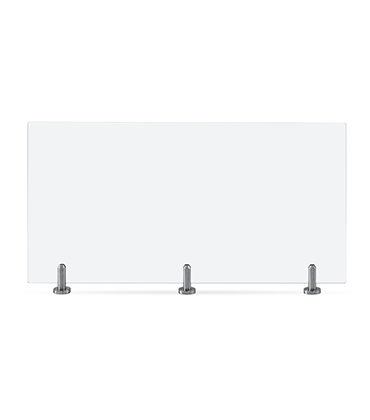

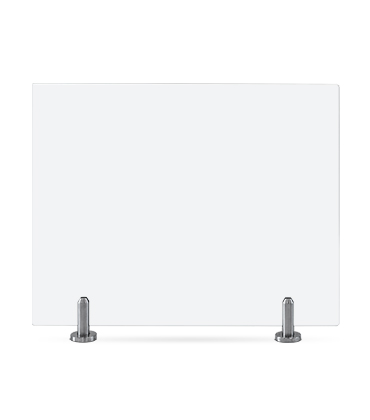

BH-06 tempered glass railing

BH-06 railings are designed to form passage zones and complete interiors of sites with increased requirements for design.

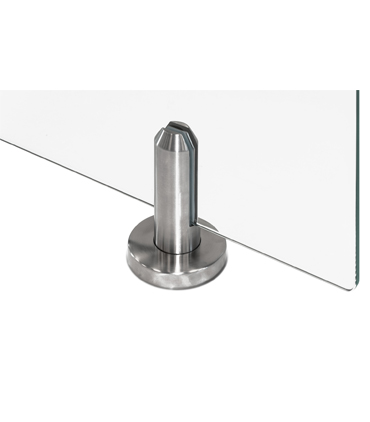

To install the tempered glass panel (of 10-12mm), stainless steel mini-posts are used.

Description

BH-06 railings are distinguished by easy installation, there is no need to drill holes in the glass for fastening.

Glass is not included in the delivery set and is supplied on request.

When fixing the glass only with the mini-posts without additional fixing points for height, the following conditions are recommended for the required reliability:

the height of the railing taking into account the height of the mini-posts should not exceed 100 cm
the distance between mini-posts should not exceed 80 cm
the lateral part of the glass behind the mini-posts should not exceed 20 cm

BH-06 railing systems are made in the same design as PERCo turnstiles and swing gates from stainless steel and tempered glass, for instance, speed gates and automatic swing gates with a glass panel.

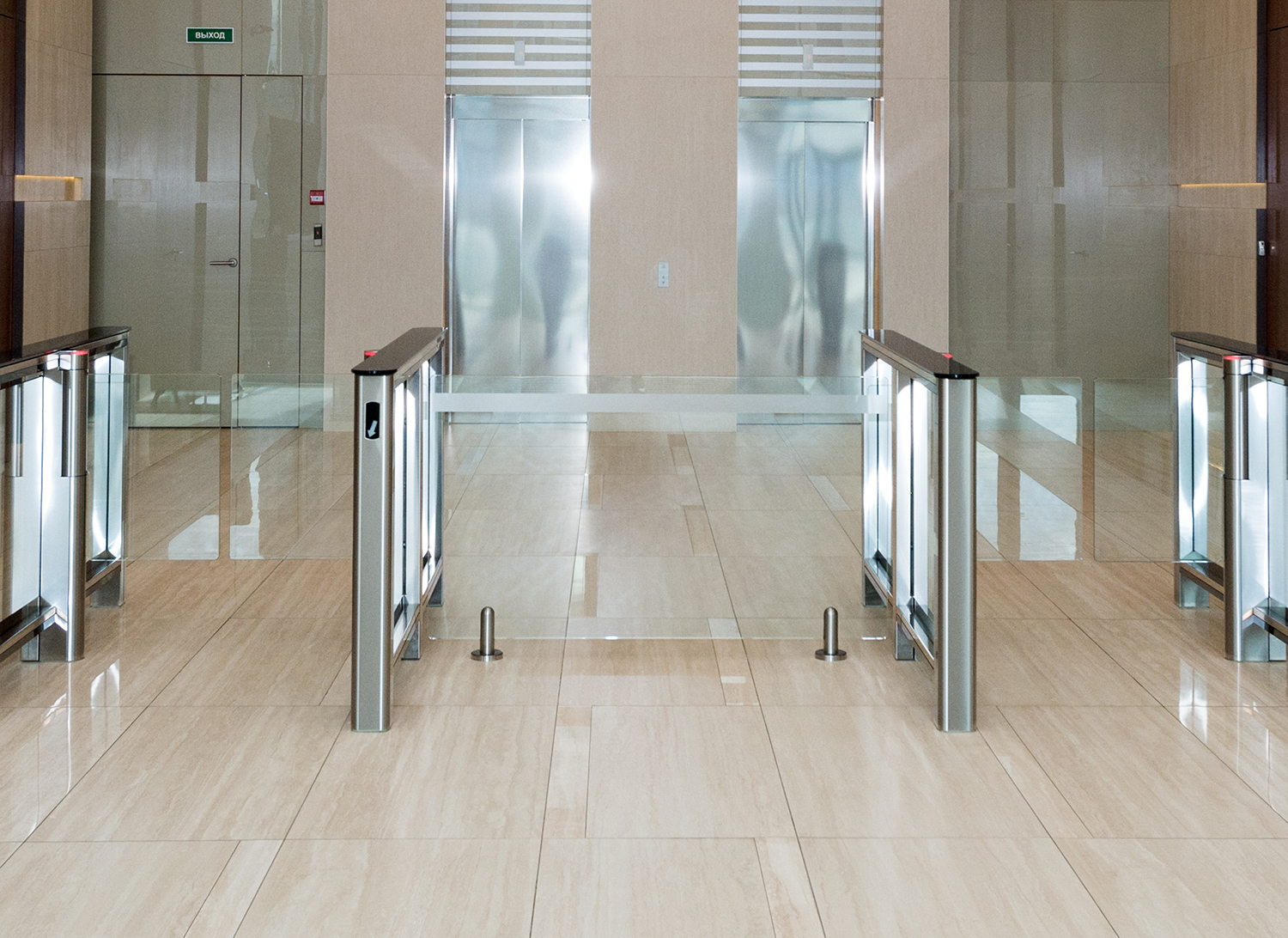

BH-06 tempered glass railing

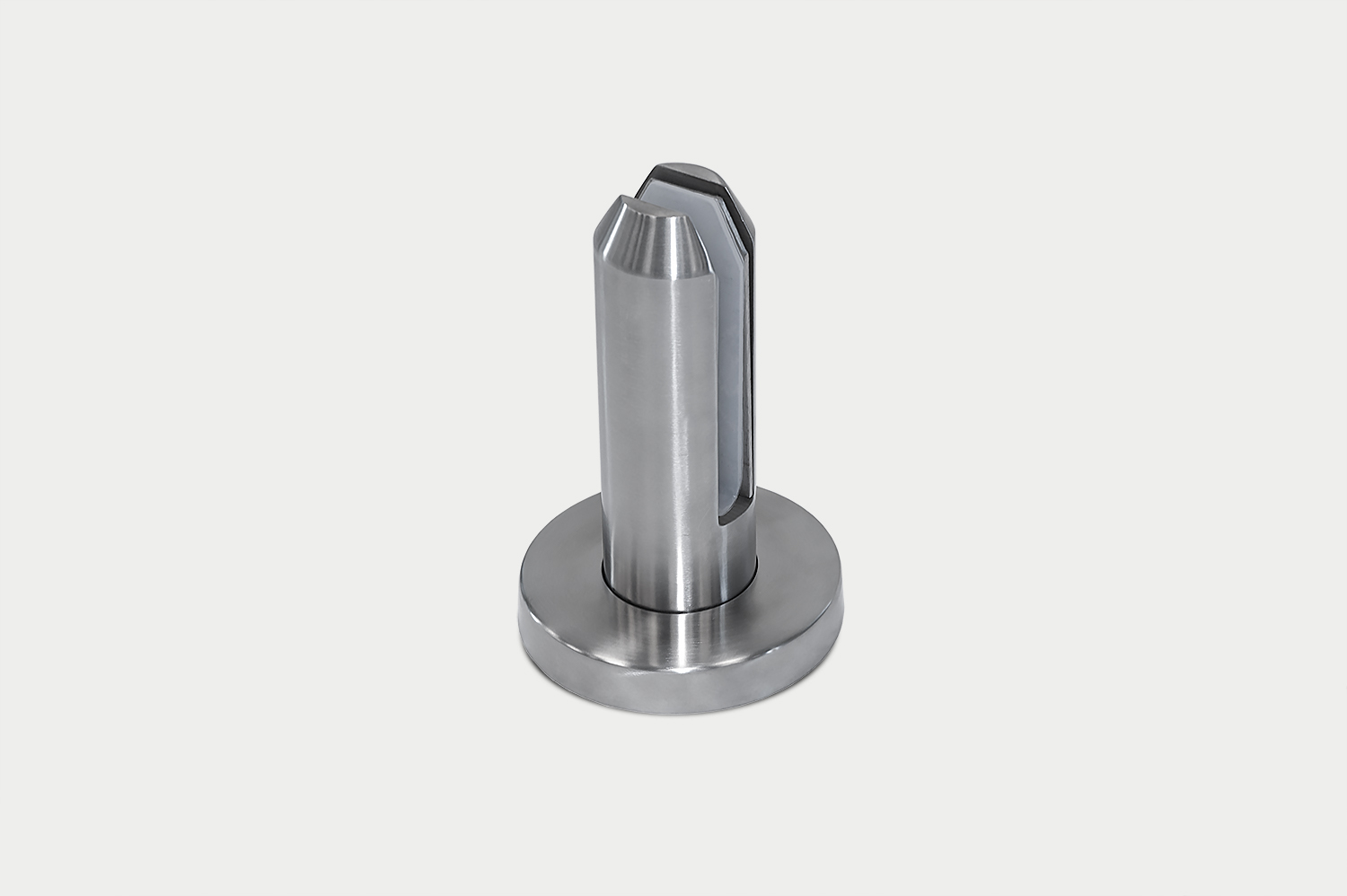

Stainless steel mini-post

Download

BH-06 railing from tempered glass. Manual
(188 kB) — 20.02.2021

BH-06 3D-models (AutoCAD) (dwg)
(417 kB) — 02.02.2024

BH-06 EC Declaration of Conformity
(957 kB) — 14.12.2017

PERCo-BH06 Technical Specification
(393 kB) — 29.11.2022

BH06 3D-models (STEP)
(68 kB) — 30.12.2021
