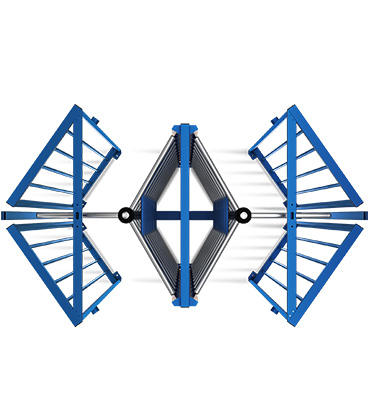

RTD-20.1S Full height rotor turnstile

operating voltage

operating voltage

power consumption

power consumption

passage directions

passage directions

persons/min

persons/min

temperature range

temperature range

protection rating

protection rating

mechanical unlocking

mechanical unlocking

motor drive

motor drive

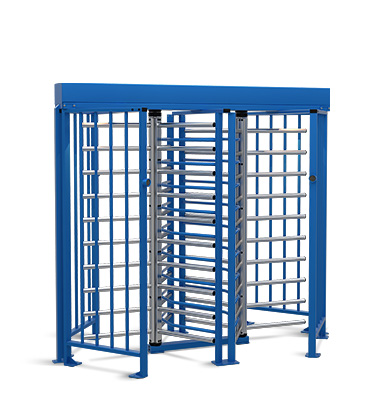

RTD-20 turnstile is designed for complete closure of passageway and it’s suitable for both indoor and outdoor use. Double passage Full Height turnstile allows to organize two controlled passageways within confined spaces.

Delivery set

  • double passage turnstile with internal electronics
  • 2 remote control panels
  • protective canopy (optional)
  • foundation frame (optional)

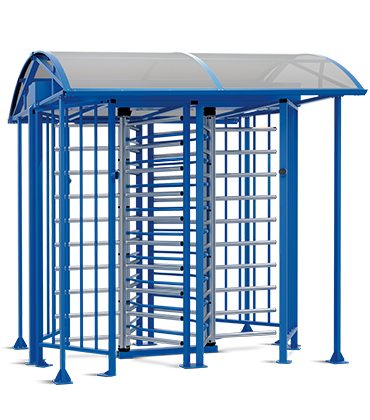

Double passage Full Height Rotor Turnstile RTD-20 is designed for management of pedestrian flows and access control at entrance points of facilities and areas with high security requirements and necessity for full closure of the passageway. It is possible to use the turnstile in the Lock-chamber mode.

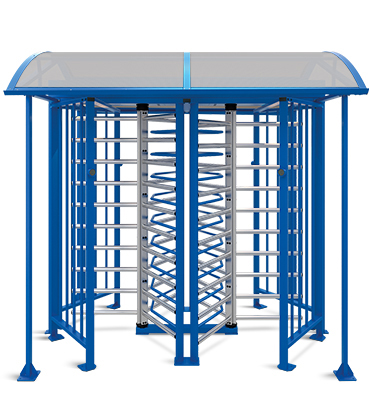

For protection against downfalls and climbing over, the turnstile may be supplied with a protective canopy to be joined into a single portal structure with the turnstile.

The power and control cables can be routed to the RTD-20 turnstiles in two ways: from below, through the special cable channel, or from above, through the drive girder, which is an advantage in case of the installation of the turnstiles in a row. Up to three turnstiles can be installed back-to-back without gaps, in a one row with cabling through transition elements and including the case of use of the RTC-20 protective canopies.

For simplification and quality improvement of the assembling, the extra foundation frame can be used. By means of this frame, the turnstile can even be installed on an unstable ground.

The turnstile is provided with bright built-in LED indicators to show if access is granted or denied. Optionally the remote light indicators can be connected.

The RTD-20 can be operated autonomously, from the remote control panel or a wireless remote control (optionally) and can be easily integrated into most access control systems.

The operating modes are set up independently for each passage direction of both passageways.

The turnstile features:

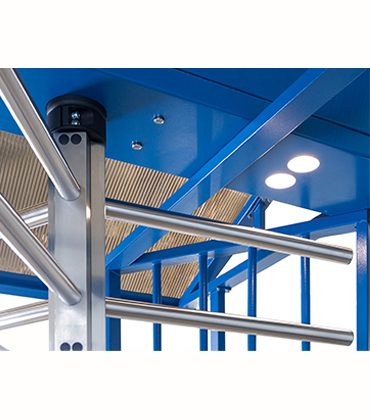

  • local lightning of both passageways: LED lamps are located on the drive girder
  • anti-backup device to prevent reverse rotation once the rotor has turned more than 60°
  • "Fire Alarm" input to unblock the turnstile from fire alarm system.

Four built-in mechanical release locks, one for each passage direction, allow unlocking the turnstile with a key for free passage in case of power failure.

When operating under an access control system (ACS), the turnstile can support pulse and potential control modes. The turnstile outputs have galvanic isolation. Due to low power consumption, the turnstile comes with safe voltage.

Turnstiles can also be completed with full height gate with electromechanical lock and railing systems, produced in the same design.

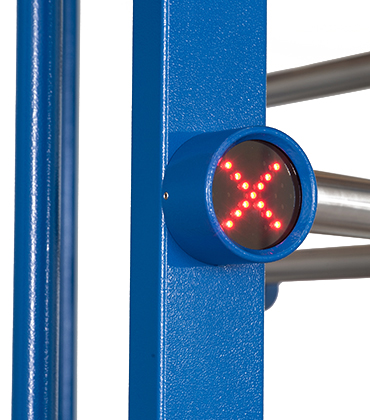

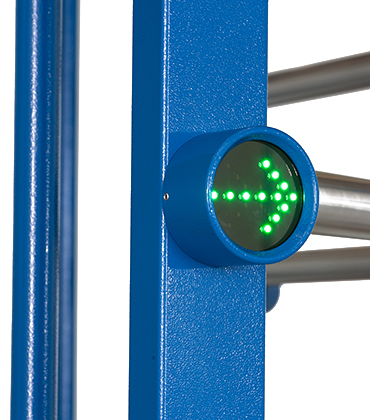

LED indicator of way direction
LED indicator of way direction
Control panel for remote management
Control panel for remote management
Turnstile mechanical unlocking
Turnstile mechanical unlocking

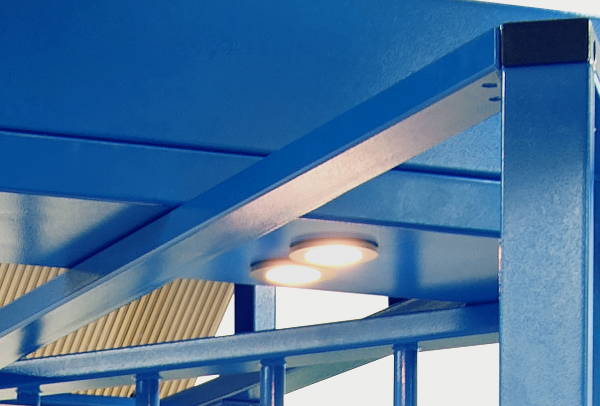

Walkway lightning in the cellar
Walkway lightning in the cellar
Operating voltage
24 V DC
Power consumption
210 W
Consumption current
4.5 A
Number of passage directions
2
Throughput rate (in the single passage mode)
40 persons/min
Throughput rate (in the free passage mode)
60 persons/min
Dimensions (length×width×height)
2480×1595×2303 mm
Passageway width
630 mm
Operating temperature range
from -40 °C to +55 °C
IP Code
IP54

Turnstile housing - galvanized steel with powder coating

Blue (RAL 5010)
Blue (RAL 5010)

Turnstile rotor - stainless steel

stainless steel
stainless steel

The warranty period is 5 (five) years from the date of sale of the product.
