ST-01 Speed gate

operating voltage

operating voltage

power consumption

power consumption

passage directions

passage directions

persons/min

persons/min

temperature range

temperature range

protection rating

protection rating

motor drive

motor drive

3D-presentation
3D-presentation
video
video
The ST-01 speed gate with swing panels is designed in a modern and elegant style and provides an ideal contactless solution for access control at sites with high aesthetic and comfort requirements.

Delivery set

  • Two gate posts with built-in electronics
  • Two glass swing panels
  • Double-sided section with built-in electronics and two swing panels (optional)
  • Remote control panel

ST-01 can be equipped with four different types of swing panels:

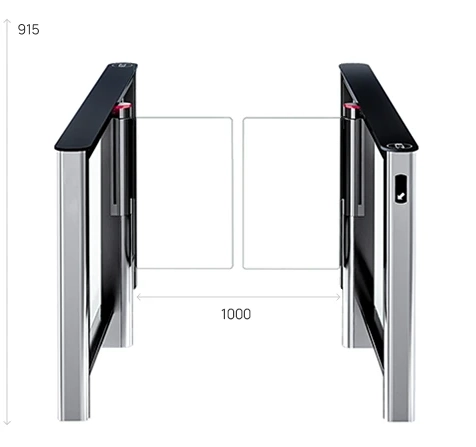

Passageway width Passageway height
650 mm 1300 mm
650 mm 1010 mm
900 mm 1010 mm
1000 mm 1010 mm

The extended version provides comfortable access for people in wheelchairs and people carrying bulky goods. Fail-safe operation ensures free passage in an emergency case.

The number of the passage zones can be increased with STD-01 double-sided section installation. Each double-sided section creates one extra passageway.

The tracking system is equipped with two levels of intrusion detectors, 14 in the upper level and 28 in the lower level, which guarantees passage security at high throughput rate and provides protection from unauthorized simultaneous passage of two or more people.

Indication modules of the passageway direction are located on front ends of gate posts of the turnstile. Indication modules of the passage grant/denial are located in the user line-of-sight range on the speed gate central post allowing quick passage completion.

The speed gate provides the possibility of proximity card readers’ installation under the glass top cover inside the posts.

In emergency situations after receiving a signal from an ACS or an emergency button the swing panels are opened in a predetermined direction, in case of a power loss the swing panels are unlocked.

The equipment can operate as an operating device as a part of ACS or as a standalone unit operated from the RC panel.

Standard delivery set contains the RC panel.

Speed gate ST-01 with central section STD-01
Speed gate ST-01 with central section STD-01
ST-01 with open swing panels
ST-01 with open swing panels
Indication of the passageway direction
Indication of the passageway direction
Indication of the passage grant/denial
Indication of the passage grant/denial
Bracket for mounting CL-15 controller to ST-01 speed gate
Bracket for mounting CL-15 controller to ST-01 speed gate
Operating voltage
24 V DC
Power consumption
160 W
Consumption current
6.5 A
Number of passage directions
2
Throughput rate (in the single passage mode)
60 persons/min
Operating temperature range
from +1 °C to +50 °C
IP Code
IP41
Passageway width
650 mm, 900 mm, 1000 mm
The required operating range of the readers
min 40 mm
Maximum dimensions of installed readers, L×W×H
not more than 155×68×28 mm

Gate post – stainless steel.

stainless steel
stainless steel

Filler panel (for gate posts) – 8 mm tempered glass.

Top covers and swing panels – 10 mm tempered glass.

The warranty period is 5 (five) years from the date of sale of the product.
