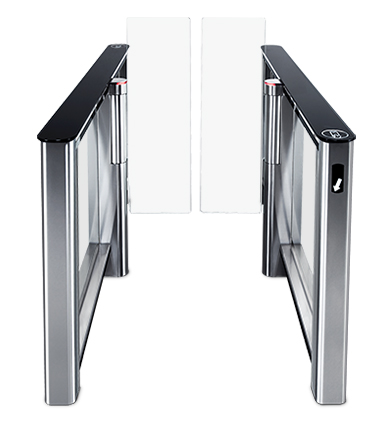

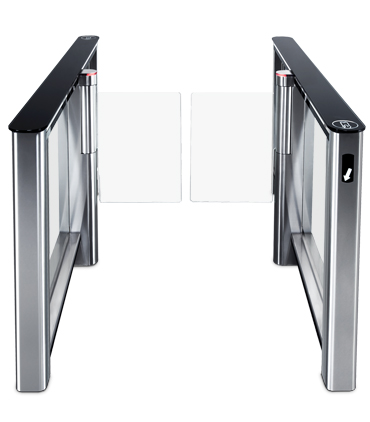

ST-01 Speed gate

operating voltage

operating voltage

power consumption

power consumption

passage directions

passage directions

persons/min

persons/min

temperature range

temperature range

protection rating

protection rating

motor drive

motor drive

3D-presentation
3D-presentation
video
video

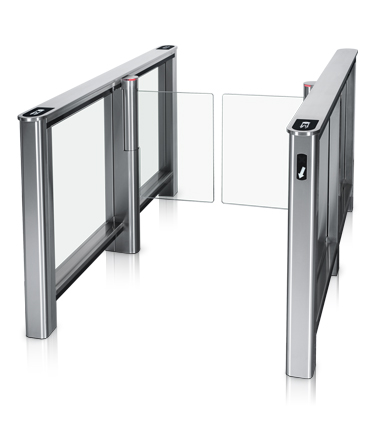

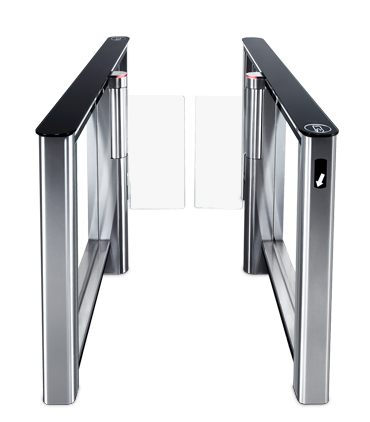

ST-01 Speed gate with swing panels is designed for sites with increased requirements for design and convenience.

Delivery set:

  • two sections with built-in electronics
  • two top covers
  • two swing panels made of tempered glass
  • central section with built-in electronics and two swing panels (optional)
  • RC-panel

ST-01 can be equipped with 3 types of top covers.

Top cover types:

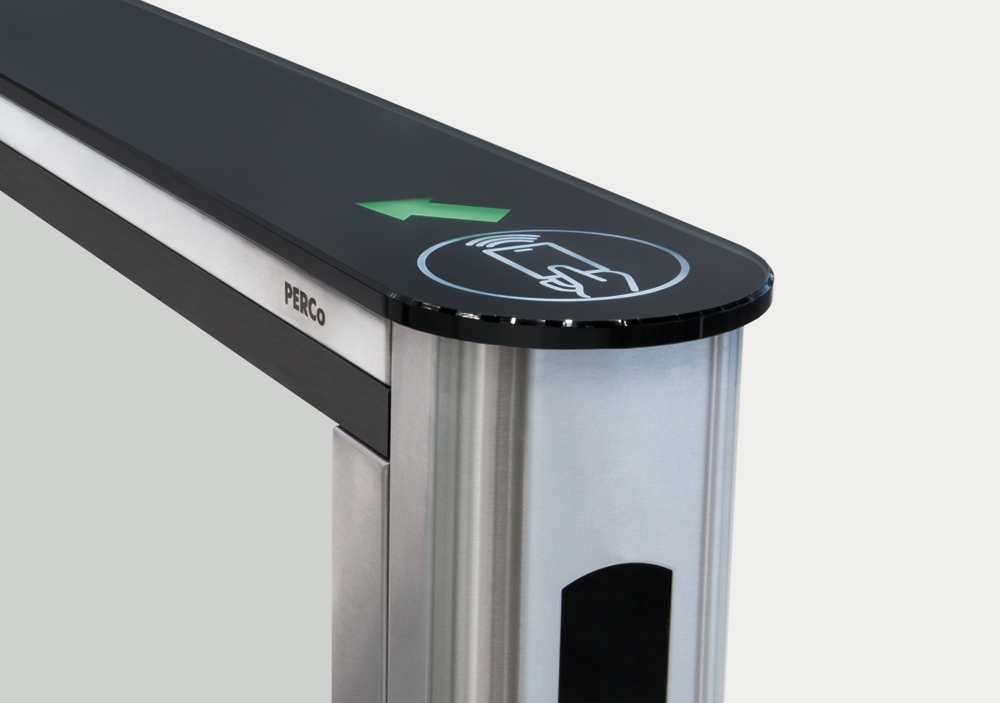

tempered glass tempered glass

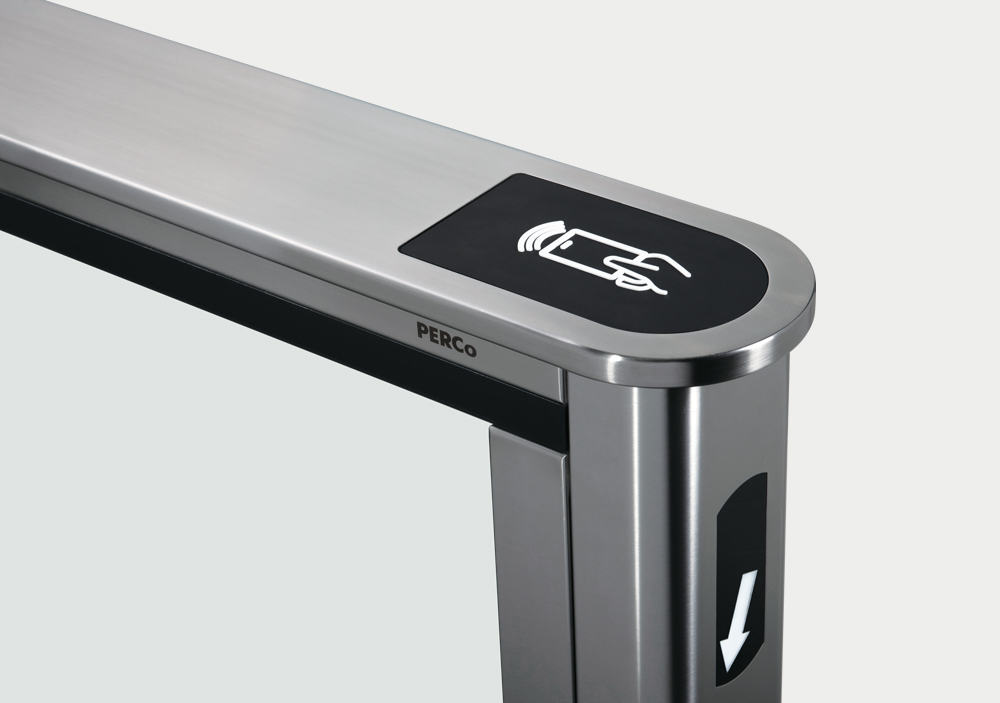

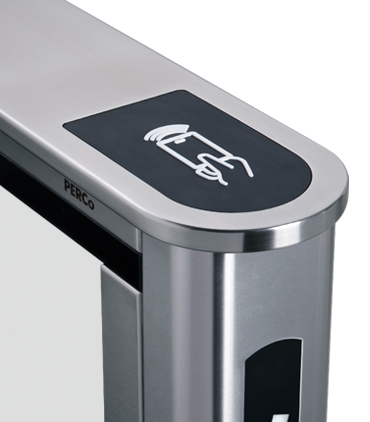

stainless steel stainless steel

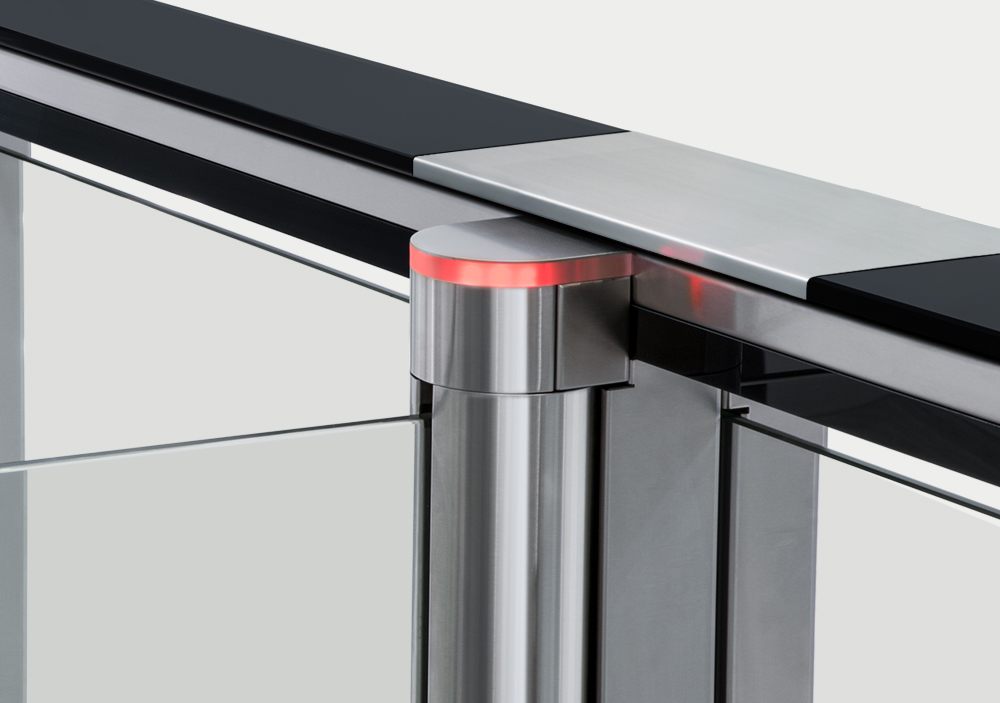

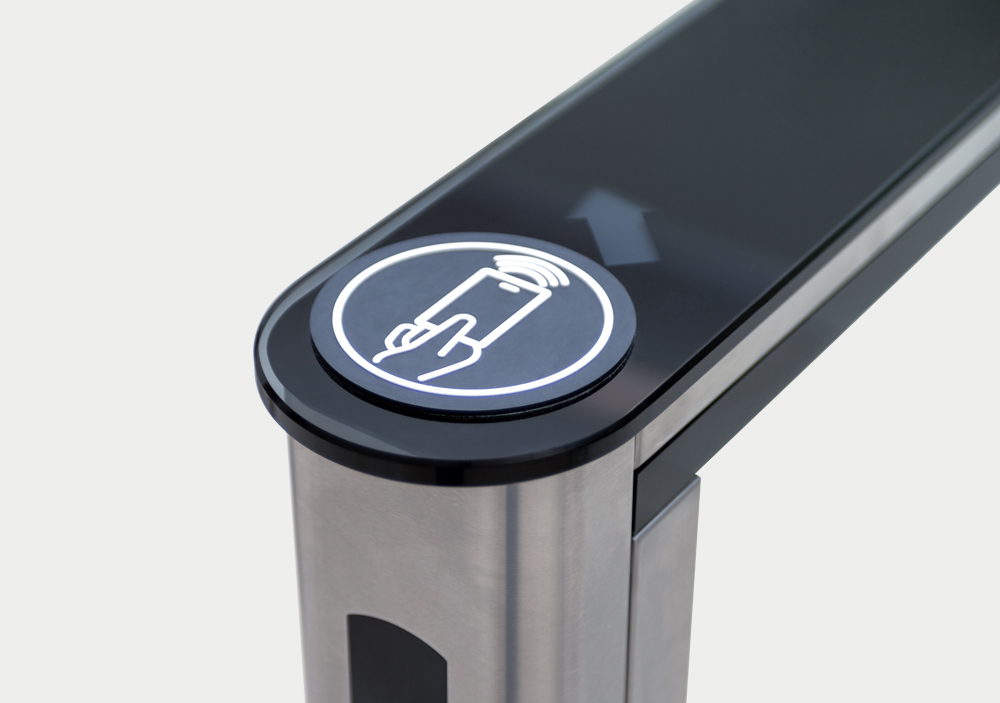

tempered glass with stainless steel inserts tempered glass
with stainless steel inserts

The stainless steel design simplifies the installation of additional equipment and increases the durability of the top covers. The turnstile design combines style and easy integration of additional equipment.

Swing panels types:

Passageway width Barrier height
650 mm 1300 mm
650 mm 915 mm
900 mm 915 mm
1000 mm 915 mm
1200 mm 915 mm

The increased passage width allows organizing an additional emergency exit and access for people with reduced mobility. When passing, the turnstile swing panels open.

It is possible to install the STD-01 central section to increase the number of passage zones. Each central section allows organizing an extra passage zone.

The tracking system is equipped with two levels of infrared sensors with 14 pairs located on the upper level and the other 28 on the lower level of the turnstile, which guarantees safety, high throughput, and prevents tailgating.

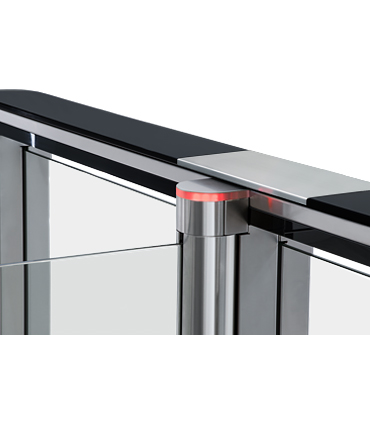

The passage direction indicators are located on the front ends of the turnstile front panels. The turnstile state indicators (open/closed) are located on the section top covers.

It is possible to install readers under the section top covers. The swing panels unlock upon receiving an emergency signal or in case of a power loss.

The turnstile can be a part of an ACS as an operating device or a standalone unit controlled by RC-panel or WRC. The RC-panel is included in the standard delivery set.

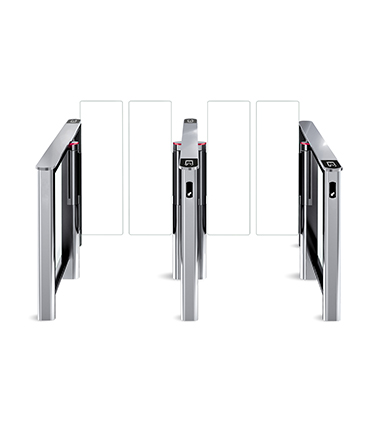

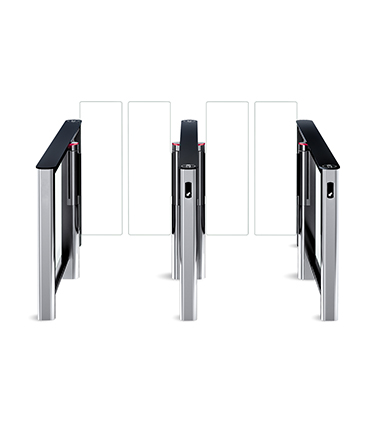

ST-01 Speed gate with STD-01 central section
ST-01 Speed gate with STD-01 central section

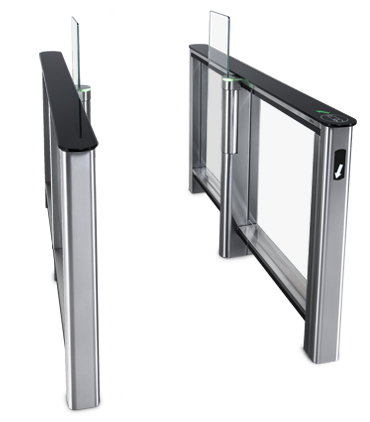

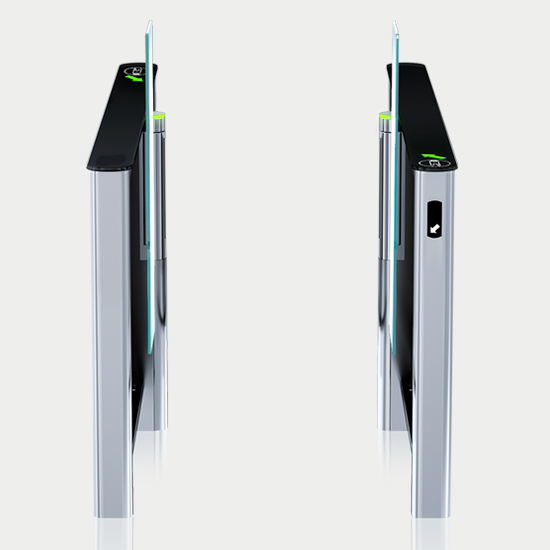

ST-01 with open swing panels
ST-01 with open swing panels

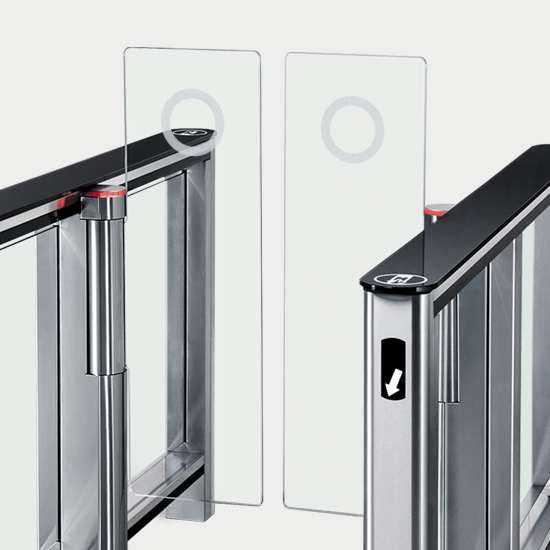

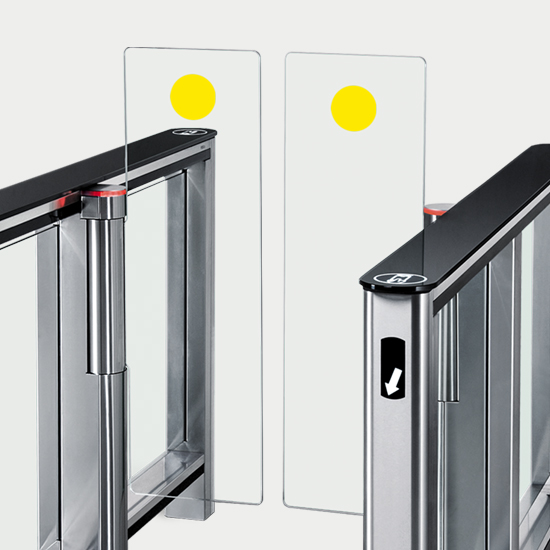

Safety stickers
Safety stickers
Safety stickers
Safety stickers

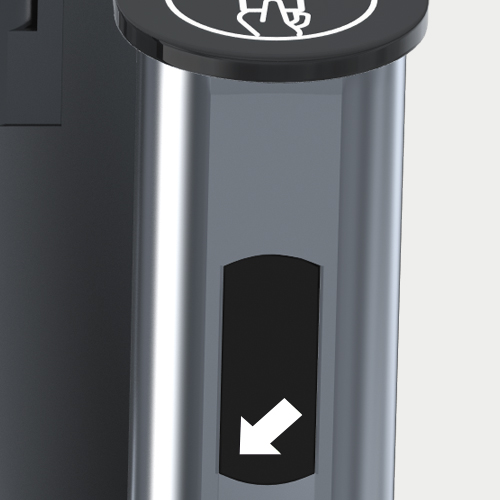

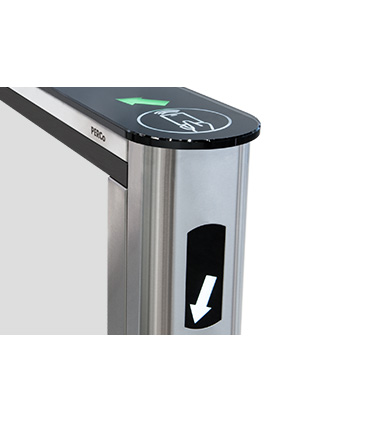

Passage direction indication
Passage direction indication

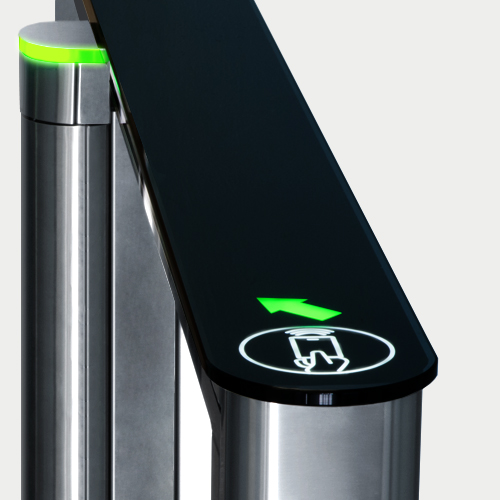

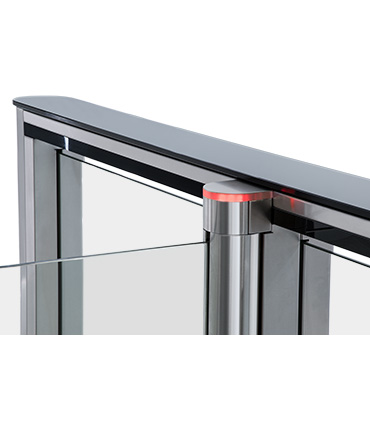

Turnstile state indication
Turnstile state indication

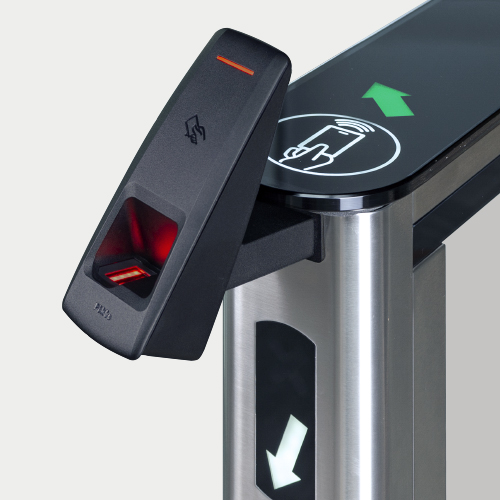

Bracket for mounting CL-15 Controller to ST-01 Speed gate
Bracket for mounting CL-15 Controller to ST-01 Speed gate
Rubber pad
Rubber pad
Operating voltage
24 V DC
Power consumption
160 W
Consumption current
6.5 A
Number of passage directions
2
Throughput rate (in the single passage mode)
60 persons/min
Passageway width
650 mm, 900 mm, 1000 mm, 1200 mm
Operating temperature range
from +1 °C to +50 °C
IP Code
IP41
Mean time to failure
5 000 000
Required operating range of the readers
min 40 mm
Maximum dimensions of the built-in barcode scanner, L×W×H 155×75×32 mm
155×68×28 mm

Posts – stainless steel.

stainless steel
stainless steel

Filler panels – 8 mm tempered glass.

Top covers and swing panels – 10 mm tempered glass.

The warranty period is 5 (five) years from the date of sale of the product.
