TTD-08A Box Tripod Turnstile for outdoor use with automatic anti-panic function

operating voltage

operating voltage

passage directions

passage directions

persons/min

persons/min

temperature range

temperature range

protection rating

protection rating

"anti-panic" barrier arms

"anti-panic" barrier arms

3D-presentation
3D-presentation
video
video

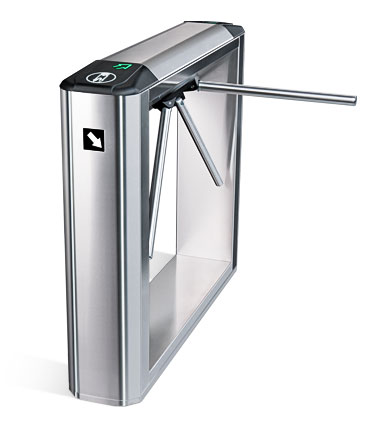

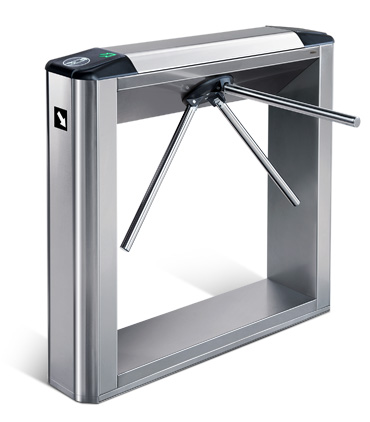

TTD-08А box tripod turnstile for outdoor use without shelter is designed in a modern style and provides a secure, elegant and modern-looking solution for outdoor and indoor applications. The models offer a state-of-the-art solution for entrance points of banks, administrative buildings, business centres and other sites with high requirements or design and comfort.
  • Modern stainless steel performance
  • LED indication on the front panels and top cover
  • Places for concealed mounting of proximity card readers in the turnstile housing with special LED pictogram indication
  • Automatic anti-panic function
  • Outdoor operation without shelter with the temperature range from -20°С to + 45°С (from -20 °C to +55°C under the shelter)
  • Implementation in stainless steel type 316 (optional)

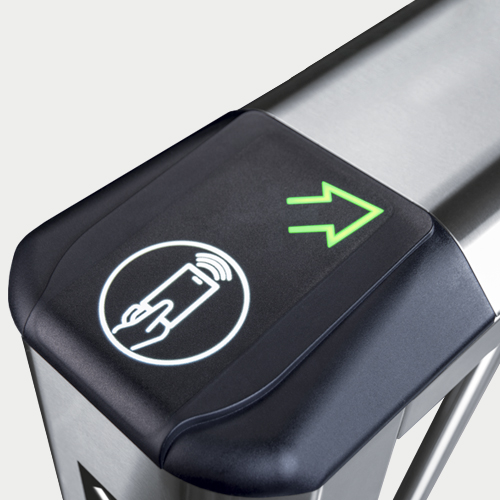

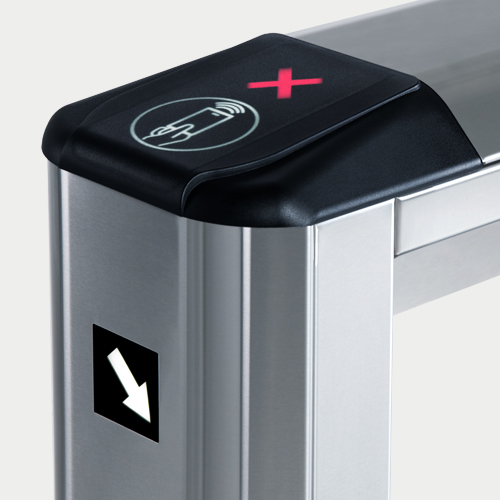

Operation mode and passage direction indication
Operation mode and passage direction indication
Places for concealed mounting of proximity card readers
Places for concealed mounting of proximity card readers
Turnstiles folding arms can be released by alarm button
Turnstiles folding arms can be released by alarm button

Delivery set

  • Turnstile with built-in electronics
  • Automatic anti-panic folding arms
  • RC panel

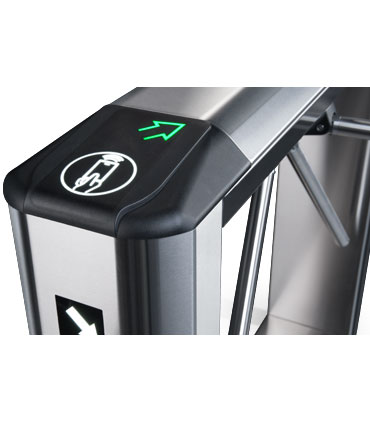

The box turnstile features radio-transparent top covers made of ABS-plastic for concealed mounting of proximity card readers inside the housing. The card reader operating zones on each side of the top cover are indicated with special pictograms. The top covers are also completed with pictorial screens, indicating turnstile operation modes.

Turnstile has a comfortable passage zone width (560 mm).

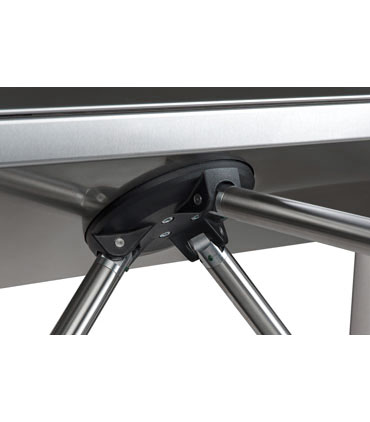

Automatic "Anti-panic" barrier arms enable immediate clear of the passage for urgent evacuation of people in emergency case. Emergency unblocking of the turnstile is performed by input of the Fire Alarm signal to the turnstile or in emergency power failure. At that the barrier arm automatically falls down ensuring free passage.

When power supply is restored or Fire Alarm signal is removed, the arm shall be manually set into operating position.

TTD-08А box turnstile is made of stainless steel which provides not only elegant design, but also resistance to corrosion when used outdoors.

Power supply board is placed in the turnstile housing and provides a full set of the turnstile control modes. Board allows an emergency passage opening on fire alarm signal (input Fire Alarm) and has inputs for connection of intrusion detector with siren and inputs for connection of remote indicators.

To ensure fast and convenient passage it is recommended to install one turnstile per 500 people working the same shift, and on the basis of maximum working load 30 persons/min.

Turnstiles can also be completed with railings, produced in the same design.

Control panel for remote management
Control panel for remote management
Turnstiles folding arms can be released by alarm button
Turnstiles folding arms can be released by alarm button
Operating voltage
12 V DC
Power consumption
72 W
Consumption current
6.0 A
Number of passage directions
2
Throughput rate (in the single passage mode)
30 persons/min
Throughput rate (in the free passage mode)
60 persons/min
Dimensions (length×width×height)
1166×750×1016 mm
Passageway width
560 mm
Operating temperature range, under shelter
from -20 °C to +55 °C
IP Code
IP54
"Anti-panic" barrier arms
automatic
Mean lifetime
8 years
Mean time to failure
4 000 000 passages

Housing, barrier arms – stainless steel.

stainless steel
stainless steel

The warranty period is 5 (five) years from the date of sale of the product.
