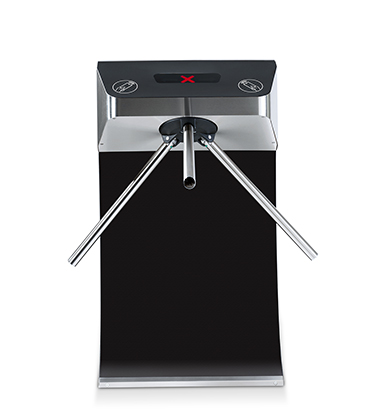

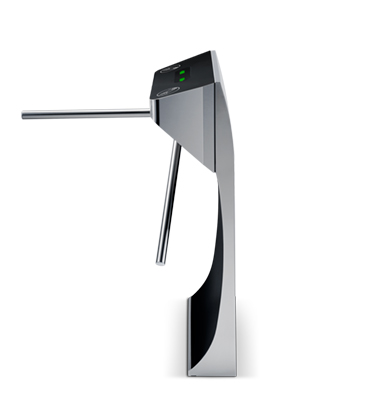

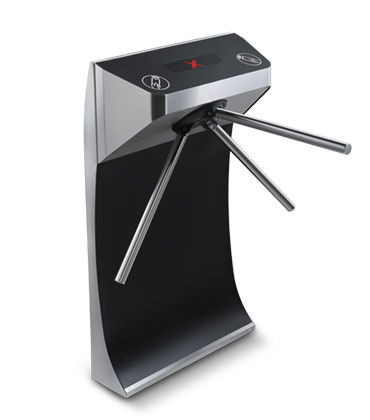

TTR-11А Motorized tripod turnstile with automatic anti-panic function

operating voltage

operating voltage

passage directions

passage directions

persons/min

persons/min

temperature range

temperature range

protection rating

protection rating

"anti-panic" barrier arms

"anti-panic" barrier arms

motor drive

motor drive

TTR-11A Motorized tripod turnstile is used as a blocking device in paid access systems and allows controlling the flow of people at the entrances of industrial enterprises, banks, administrative institutions, shops, railway stations, and airports.
  • Built-in motor drive ensures smooth turn of barrier arms

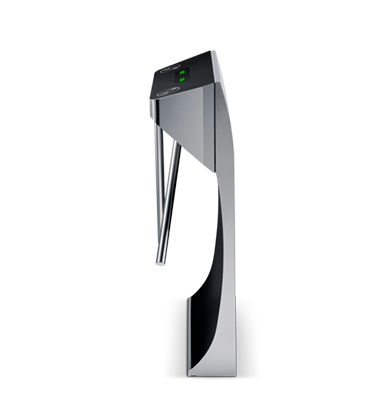

  • Automatic "anti-panic" barrier arms

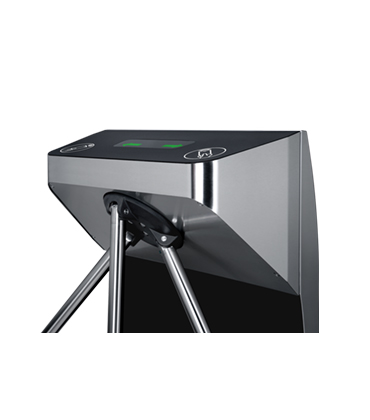

  • Readers can be installed under the radio transparent top cover

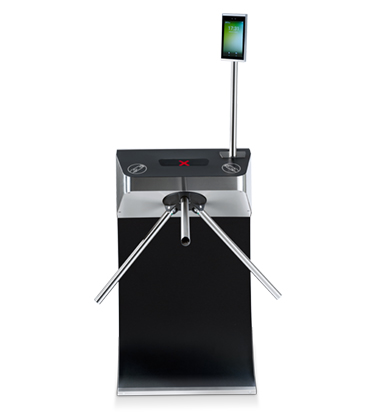

  • Integration with additional equipment
  • Outdoor application, under a canopy protecting from direct precipitation

Delivery set:

  • Turnstile with built-in electronics
  • Flywheel with automatic “anti-panic” barrier arms
  • RC-panel

The automatic “anti-panic” function is an up-to-date solution that allows organizing a fast evacuation in case of emergencies. At a signal from the access control system or in case of power failure, the barrier arm automatically falls ensuring free passage.

The turnstile can be operated from an access control system (ACS) or as a stand-alone unit from RC-panel or WRC (purchased separately).

A control unit board is effectively placed inside the turnstile housing. The resetting mechanism moves the barrier arms to the initial position after each passage. Smooth turn of the barrier arms is carried out by the built-in motor drive.

A special Fire Alarm control input allows connecting a device that sends a command for the emergency unblock (for instance, a fire alarm device).

It is possible to connect the intrusion detector and siren to the turnstile.

To ensure a fast and convenient passage, it is recommended to install one turnstile for every 500 people working one shift or based on the 30 people/minute peak load.

Operating voltage
24 V DC
Power consumption
150 W
Consumption current
5.5 A
Number of passage directions
2
Throughput rate (in the single passage mode)
30 persons/min
Throughput rate (in the free passage mode)
60 persons/min
Dimensions (length×width×height)
800×760×1055 mm
Passageway width
500 mm
Operating temperature range
from -40 °C to +55 °C
IP Code
IP42
Mean lifetime
8 years
Mean time to failure
3 000 000 passages
Required operating range for installed RFID readers
not more than 150×70×28 mm

Housing - stainless steel and powder coating, laminate plastic.

Barrier arms - stainless steel.

stainless steel and powder coating, laminate plastic
stainless steel and powder coating, laminate plastic

The warranty period is 5 (five) years from the date of sale of the product.
