  • WMD-06 motorized swing gate with swing panel AGG-900
  • WMD-06 motorized swing gate with swing panel AGG-900
  • WMD-06 motorized swing gate with swing panel AGG-900

WMD-06 motorized swing gate with swing panel AGG-900 for indoor application

operating voltage

operating voltage

power consumption

power consumption

passage directions

passage directions

persons/min

persons/min

temperature range

temperature range

protection rating

protection rating

motor drive

motor drive

3D-presentation
3D-presentation
video
video

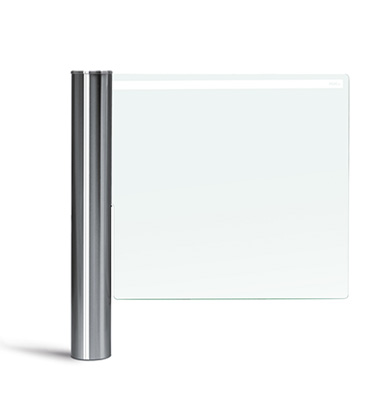

WMD-06 motorized swing gate with glass swing panel is an elegant solution for entrance points of banks, administrative buildings, business centers, and other sites with the highest requirements for design and convenience.

Delivery set:

  • swing gate post with built-in electronics
  • tempered glass swing panel of 900 mm
  • RC-panel

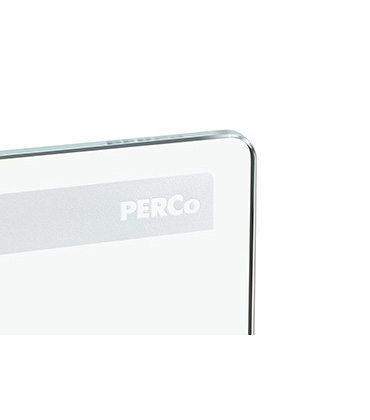

WMD-06 features a tempered glass swing panel available in two versions: a standard panel (650 mm) or an extended panel (900 mm) for convenient passage for people with reduced mobility or bulky good transportation. In emergencies, the swing gate with the extended swing panel can be used as an additional emergency exit. The transparent glass panel is fitted with matt tape along the top edge that prevents people from bumping into the glass.

Upon receiving an emergency signal or in case of a power loss, the WMD-06 swing gate is automatically unblocked and the swing panel can be opened by hand.

Operating voltage
24 V DC
Power consumption
105 W
Consumption current
4.4 A
Number of passage directions
2
Throughput rate (in the single passage mode)
12 persons/min
Dimensions (length×width×height)
1045×147×1012 mm
Passageway width
950 mm
Operating temperature range
from +1 °C to +50 °C
IP Code
IP41

Gate post – stainless steel.

stainless steel
stainless steel

Swing panel – 10 mm tempered glass.

The warranty period is 5 (five) years from the date of sale of the product.
