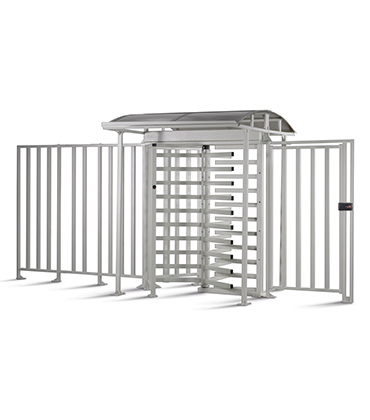

WHD-15 Full Height Gate for indoor and outdoor applications

operating voltage

operating voltage

persons/min

persons/min

temperature range

temperature range

3D-presentation
3D-presentation
video
video
The WHD-15 security gates are used to close a passageway. These security gates are designed for access control at places with strict requirements for security.

Delivery set

  • gathered gate
  • electromechanical lock
  • door check with fasteners

The WHD-15 gates are specially constructed to provide secured passage for people using wheelchairs (with additional help of an assistant) and transportation of big or cumbersome items.

  • single-way swing gate
  • firm construction for maximum security practice
  • rust-protected aluminum frame with top quality powder coating

Design of gates matches to the design of RTD-15 full height turnstiles and MB-15 railings. It allows construction of various forms of entrance configuration and their complete design.

WHD-15 gates may be used as an independent security solution or they may be combined with other elements of security system. Also these gates may be used as emergency exits, producing an anti-panic function for RTD-15 security turnstiles. The gates are energized with safe 12 V voltage.

The WHD-15 security gates feature a hydraulic closing device that prevents slamming. Little weight of the swing door makes the passage more comfortable for pedestrians.

Gates can be opened remotely, by a signal from security system, as well as with a mechanical key.

The solid welded aluminum construction provides advanced security reliability and damage resistance, which guarantees long years of smooth, flawless operation of gates even in unpropitious environment. The excellent structure powder coating with mica effect provides gates with effective electric insulation, advanced security impact resistance and high-ranking corrosion protection.

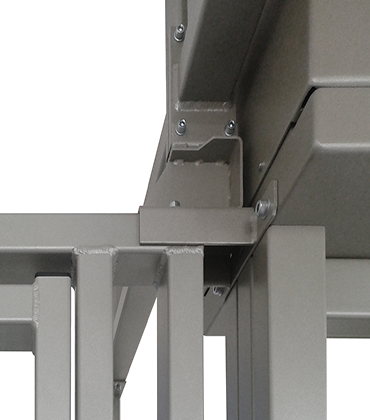

Hydraulic mechanism for closing security gates
Hydraulic mechanism for closing security gates

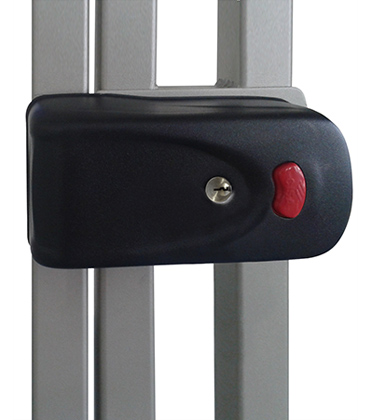

Attached electromechanical rim lock
Attached electromechanical rim lock
Operating voltage
12 V DC
Consumption current
3.0 A
Throughput rate (in the single passage mode)
12 persons/min
Dimensions (length×width×height)
350×1232×2150 mm
Passageway width
950 mm
Passage zone height
2100 mm
Operating temperature range
from -30 °C to +50 °C
Mean lifetime
8 years
Mean time to failure
1 000 000 passages
sandpaper powder coating with pearl mica effect; light beige colour
sandpaper powder coating with pearl mica effect; light beige colour

Powder coating to RAL colours is available on order. Time of manufacture and price quotation are specified individually.

Corrosion protected powder coated aluminium frame.

The warranty period is 5 (five) years from the date of sale of the product.
