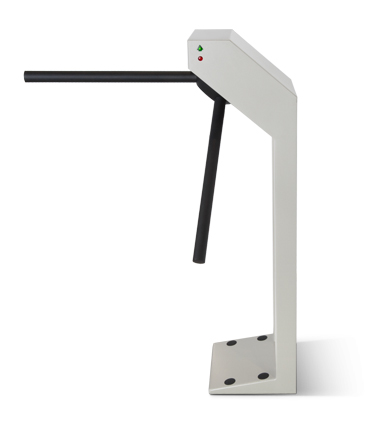

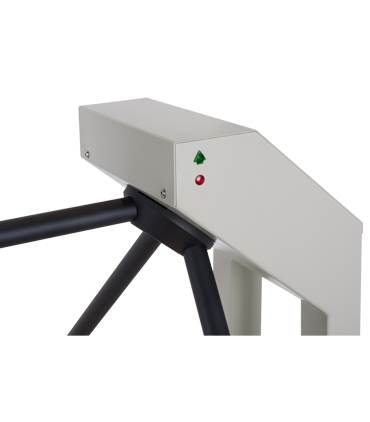

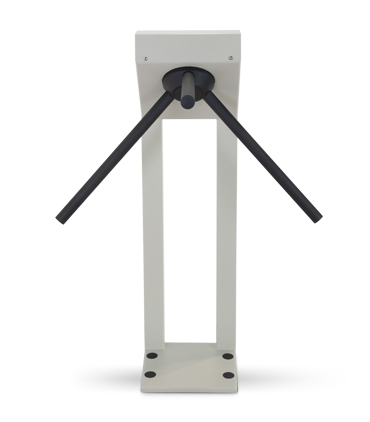

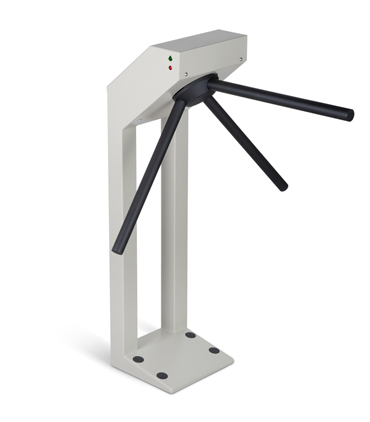

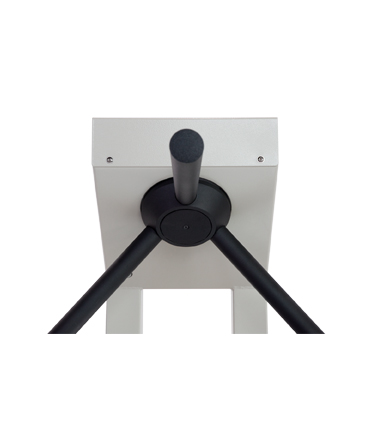

T-5 Tripod turnstile for indoor application

operating voltage

operating voltage

passage directions

passage directions

persons/min

persons/min

temperature range

temperature range

protection rating

protection rating

mechanical unlocking

mechanical unlocking

3D-presentation
3D-presentation
video
video

T-5 turnstile is a cost-effective solution for providing access control at the checkpoints of enterprises and facilities, which need proper entrance control equipment within a limited budget.

  • Cost-effective and compact design
  • Mechanical release key
  • Mechanical "anti-panic" barrier arms (optional)
  • LED indication of operation modes

Delivery set:

  • Turnstile with built-in electronics
  • RC-panel

T-5 tripod turnstile is distinguished by its simplified design and painted AS-05 barrier arms. T-5 turnstile is a cost-effective solution due to a modified hub, housing, and LED indication, reducing manufacturing costs.

With functionality, mechanics, and electronics similar to those of the TTR-04.1, T-5 meets the high-quality standards and long service life of all PERCO products.

The turnstile can be equipped with "anti-panic" barrier arms to clear the passage zone in emergencies without using any special keys or tools.

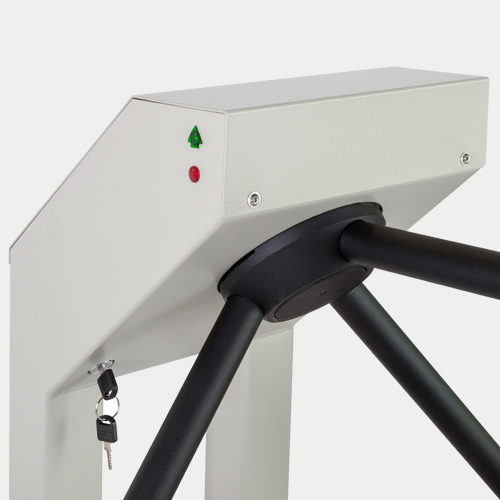

Mechanical release key
Mechanical release key

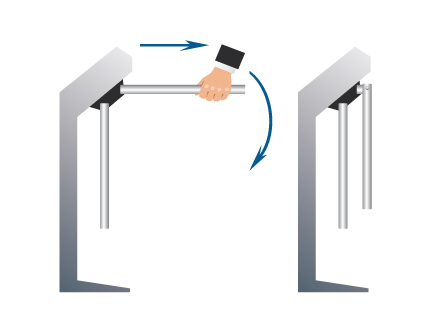

Mechanical "anti-panic" function
Mechanical "anti-panic" function

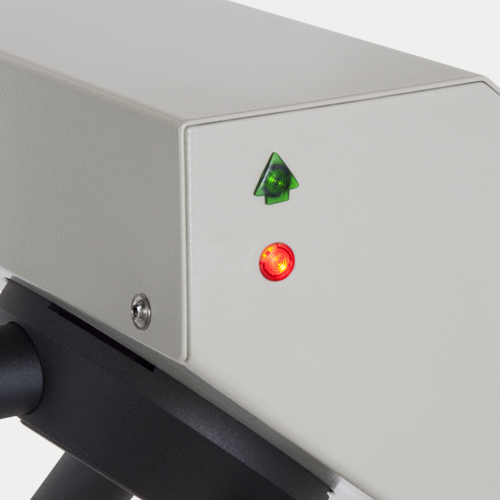

Turnstile indication
Turnstile indication
RC-panel
RC-panel
Operating voltage
12 V DC
Power consumption
8.5 W
Consumption current
0.7 A
Number of passage directions
2
Throughput rate (in the single passage mode)
30 persons/min
Throughput rate (in the free passage mode)
60 persons/min
Passage width with AS-05 barrier arms
500 mm
Passage width with AS-04/AA-04 barrier arms
600 mm
Operating temperature range
from +1 °C to +50 °C
IP Code
IP41
Mean time to failure
4 000 000 passages

Housing - powder-coated steel.

light grey colour (RAL 7035)
light grey colour (RAL 7035)

Barrier arms options: painted steel (black color); stainless steel.

The warranty period is 5 (five) years from the date of sale of the product.
